IX2204NETR Datasheet(PDF) 8 Page - IXYS Corporation |
|
|
|||||||||||||||||||||||||||||
IX2204NETR Datasheet(HTML) 8 Page - IXYS Corporation |
|
|

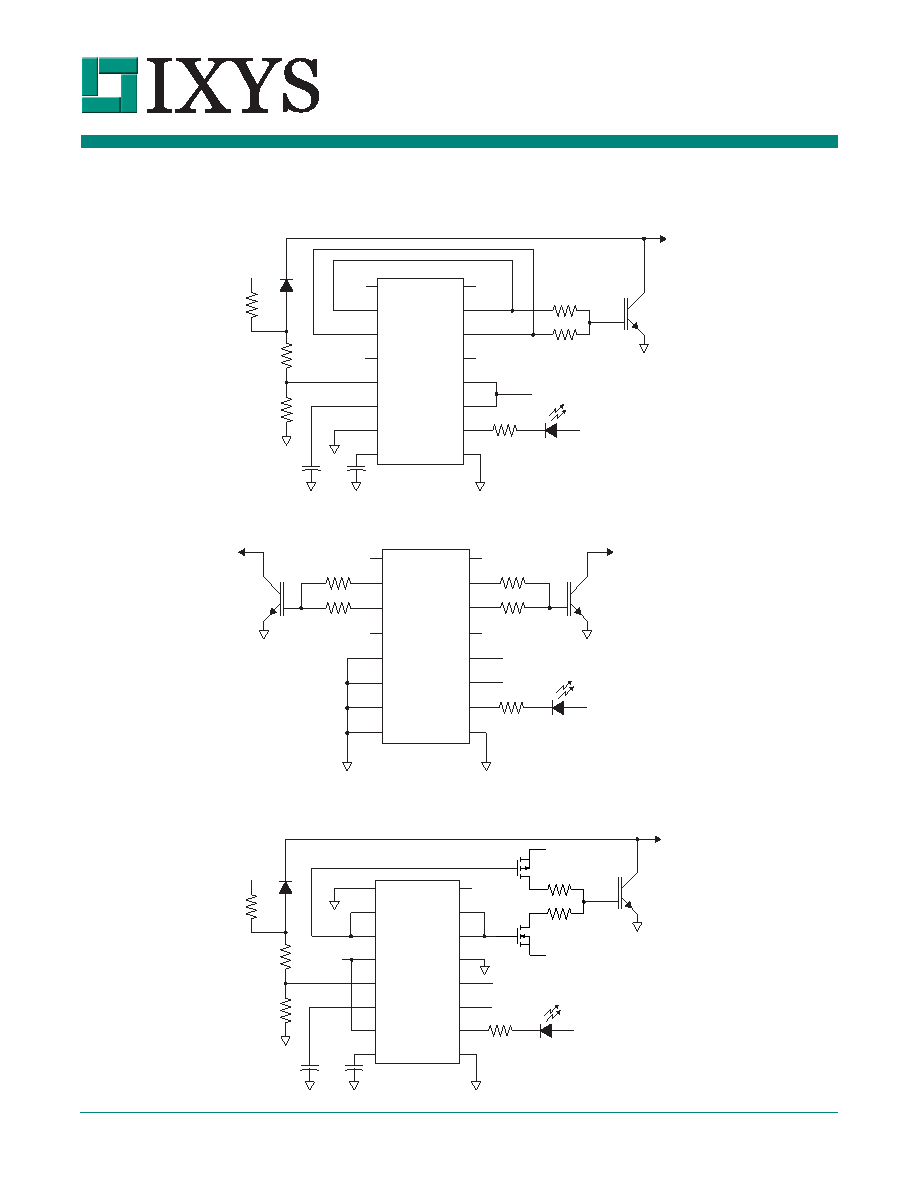

8 / 10 page  INTEGRATED CIRCUITS DIVISION 8 www.ixysic.com R03 IX2204 4 Application Drawings 4.1 Parallel-Mode IGBT Drive with Desaturation Detection 4.2 Direct IGBT Drive 4.3 Stack-Mode IGBT Drive with Desaturation Detection -10V -10V 15V 15V 15V VLA OUTLA OUTHA VHA DESAT TRISTATE MODE BLANK VLB OUTLB OUTHB VHB INB INA FAULT GND IX2204 V DD OUT C TRISTATE C BLK -10V -10V 15V 15V VLA OUTLA OUTHA VHA DESAT TRISTATE MODE BLANK VLB OUTLB OUTHB VHB INB INA FAULT GND IX2204 V DD OUTB OUTA -10V 15V 15V VLA OUTLA OUTHA VHA DESAT TRISTATE MODE BLANK VLB OUTLB OUTHB VHB INB INA FAULT GND IX2204 V DD OUT C TRISTATE C BLK -10V 15V |
|
|
