A29010B Datasheet(PDF) 21 Page - AMIC Technology

Part # A29010B
Description  128K X 8 Bit CMOS 5.0 Volt-only, Uniform Sector Flash Memory
PDF  30 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  AMICC [AMIC Technology]
Direct Link  http://www.amictechnology.com
Logo AMICC - AMIC Technology

A29010B Datasheet(HTML) 21 Page - AMIC Technology

Back Button A29010B Datasheet HTML 17Page - AMIC Technology A29010B Datasheet HTML 18Page - AMIC Technology A29010B Datasheet HTML 19Page - AMIC Technology A29010B Datasheet HTML 20Page - AMIC Technology A29010B Datasheet HTML 21Page - AMIC Technology A29010B Datasheet HTML 22Page - AMIC Technology A29010B Datasheet HTML 23Page - AMIC Technology A29010B Datasheet HTML 24Page - AMIC Technology A29010B Datasheet HTML 25Page - AMIC Technology Next Button
Zoom Inzoom in Zoom Outzoom out
 21 / 30 page
background image
A29010B Series
PRELIMINARY
(June, 2016, Version 0.0)
20
AMIC Technology, Corp.

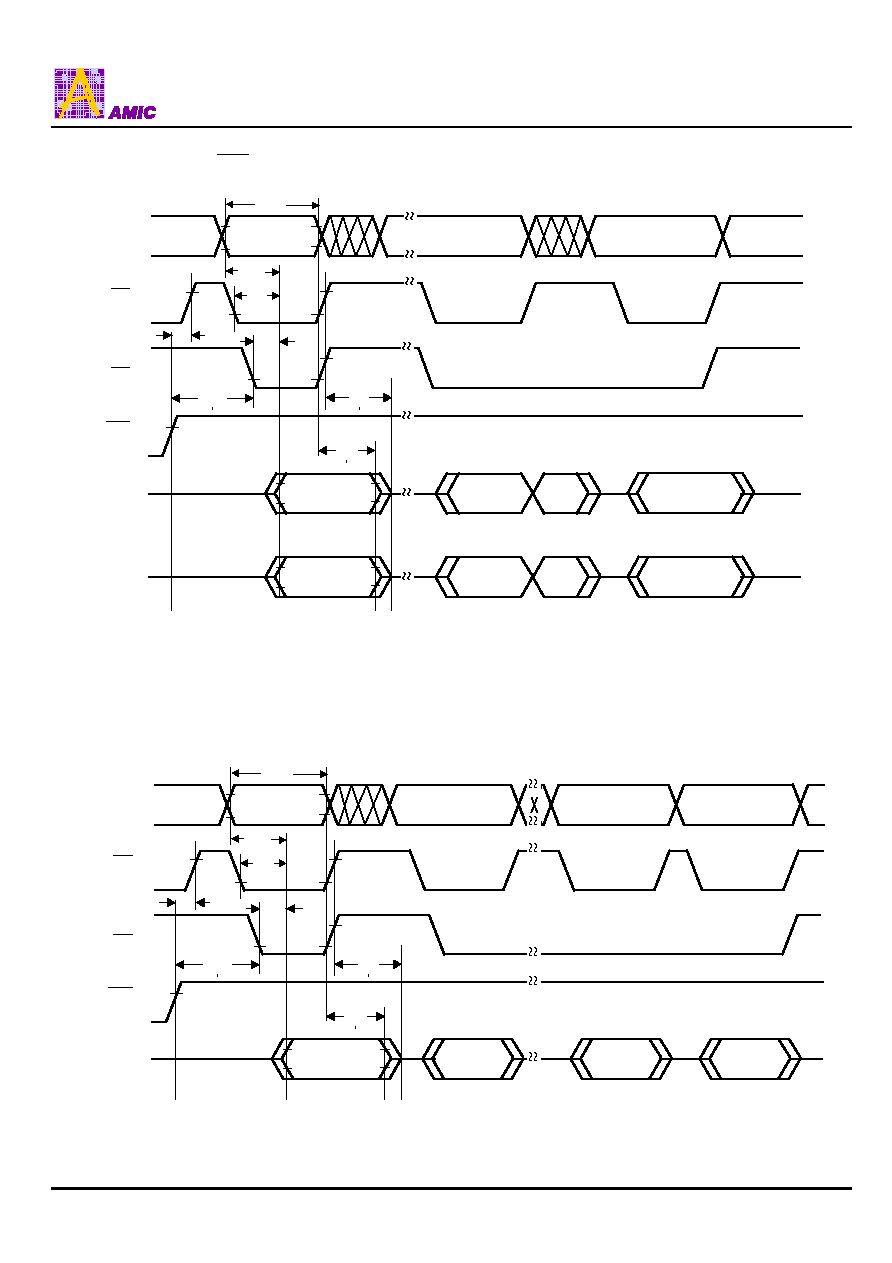

Timing Waveforms for Data Polling (During Embedded Algorithms)
Timing Waveforms for Toggle Bit (During Embedded Algorithms)
Note: VA = Valid Address; not required for I/O6. Illustration shows first two status cycle after command sequence, last status read
cycle, and array data read cycle.
Addresses
CE
OE
WE
I/O7
tRC
VA
VA
VA
Complement
Complement
True
Valid Data
High-Z
Status Data
Status Data
True
Valid Data
High-Z
I/O0 - I/O6
tAC
C
tCE
tCH
tOE
tOEH
tDF
tOH
Note : VA = Valid Address. Illustation shows first status cycle after command sequence, last status read cycle, and array data
read cycle.
Addresses
CE
OE
WE
I/O6 , I/O2
tRC
VA
VA
VA
Valid Status
tACC
tCE
tCH
tOE
tOEH
tDF
tOH
VA
Valid Status
Valid Status
Valid Status
(first read)
(second read)
(stop togging)
