ASX340CS_DS Rev. F Pub. 6/15 EN
49
©Semiconductor Components Industries, LLC, 2015.
ASX340CS: 1/4-Inch Color CMOS NTSC/PAL Digital Image Sensor
Modes and Timing

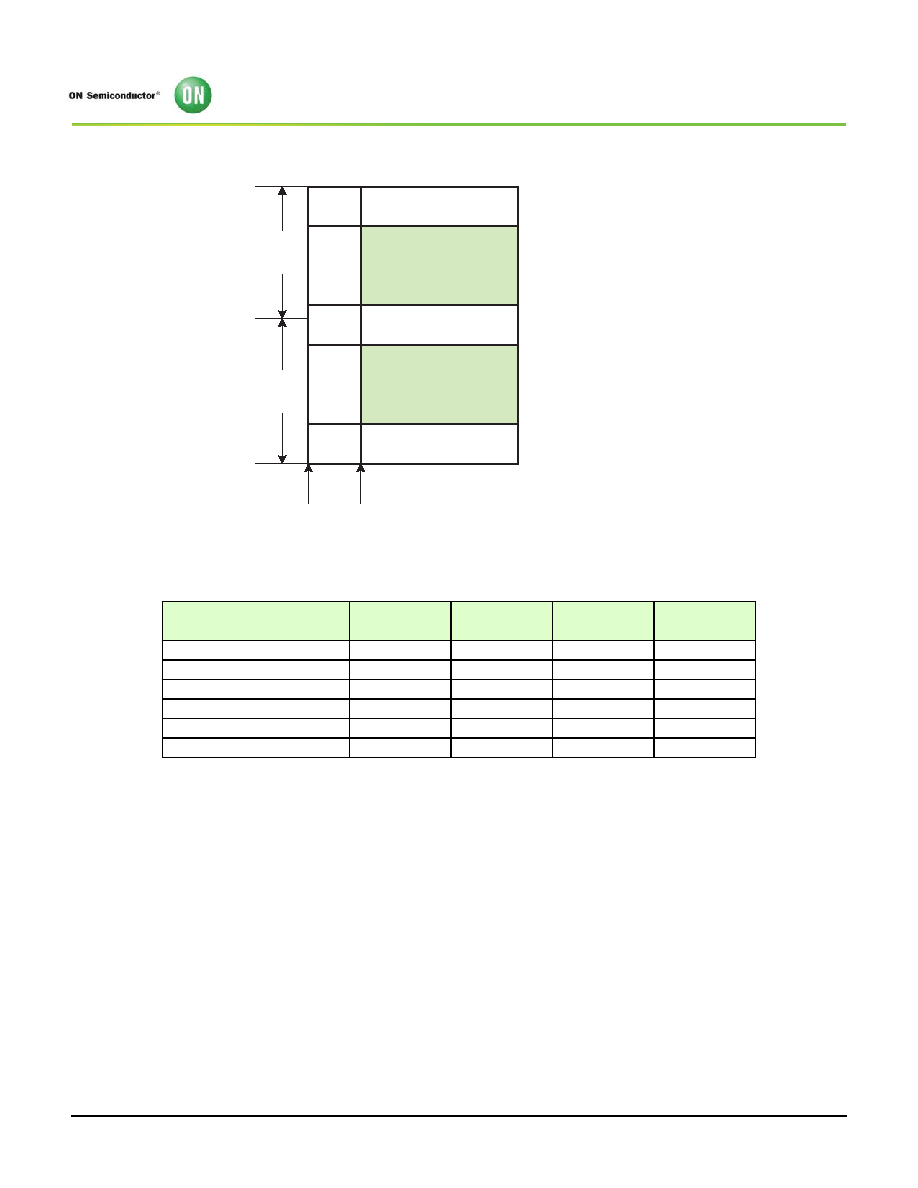

Figure 31:
Typical CCIR656 Vertical Blanking Intervals for 625/50 Video System
Table 23:
Field, Vertical Blanking, EAV, and SAV States
for 625/50 Video System
Line Number
F
V
H
(EAV)
H
(SAV)
1–22
0
1
1
0
23–310
0
0
1
0
311–312
0
1
1
0
313–335
1
1
1
0
336–623
1
0
1
0
624–625
1
1
1
0
Blanking
Field 1 Active Video
Blanking
Field 2 Active Video
Field 1
(F = 0)
Odd
Field 2
(F = 1)
Even
H =1
EAV
H = 0
SAV
Blanking
Line 1 (V = 1)
Line 23 (V = 0)
Line 311 (V = 1)
Line 336 (V = 0)
Line 625 (V = 1)
Line 624 (V = 1)
