LTM3-02-R Datasheet(PDF) 2 Page - Copal Electronics

Part # LTM3-02-R
Description  Ultra-Miniature Pushbutton Switches
PDF  2 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  COPAL [Copal Electronics]
Direct Link  http://www.nidec-copal-electronics.com/e
Logo COPAL - Copal Electronics

LTM3-02-R Datasheet(HTML) 2 Page - Copal Electronics

  LTM3-02-R Datasheet HTML 1Page - Copal Electronics LTM3-02-R Datasheet HTML 2Page - Copal Electronics
Zoom Inzoom in Zoom Outzoom out
 2 / 2 page
background image

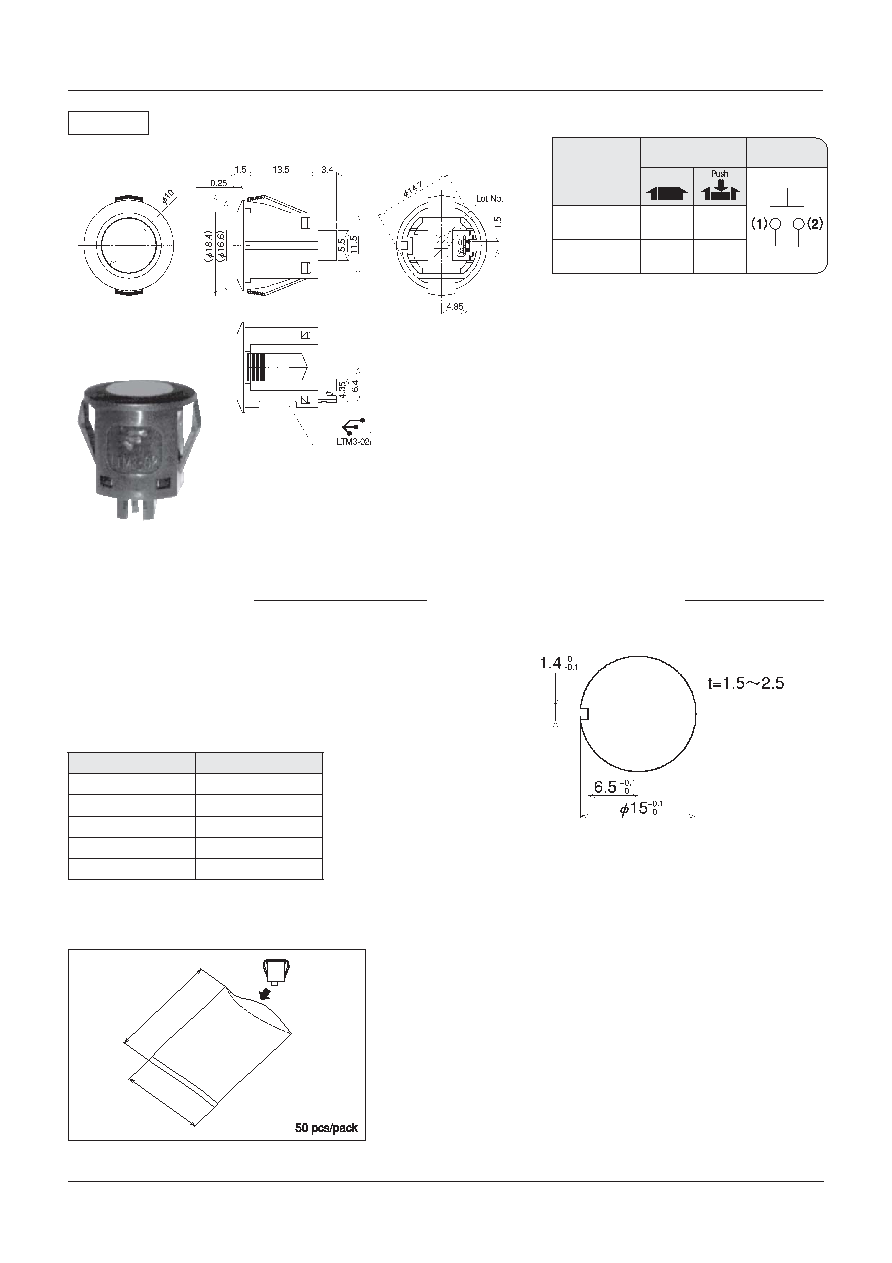

LTM3-02
Part No.
Switching function
Circuit diagrams
LTM3
−02−□
OFF
（ON）
Connecting terminals
̶
⑴−⑵
LTM3-02
（ON）
：means Momentary.
)\[[VUJVSVYJVKL[VILZWLJPÄLKPU
□.
Travel
Product Mark
■Applicable Connector
 
［ZHR-2（Housing）by J.S.T. MFG CO.,LTD.］
■Panel Cut-Out Dimensions
■Table of Part Numbers
Button color
Part No.
Black
★LTM3-02-K
Gray
 LTM3-02-G
Red
★LTM3-02-R
Green
★LTM3-02-M
White
★LTM3-02-W
■7HJRHNPUN :WLJPÄJH[PVUZ
Plastic Bag
200
150
Switches
★：Made to order products.
