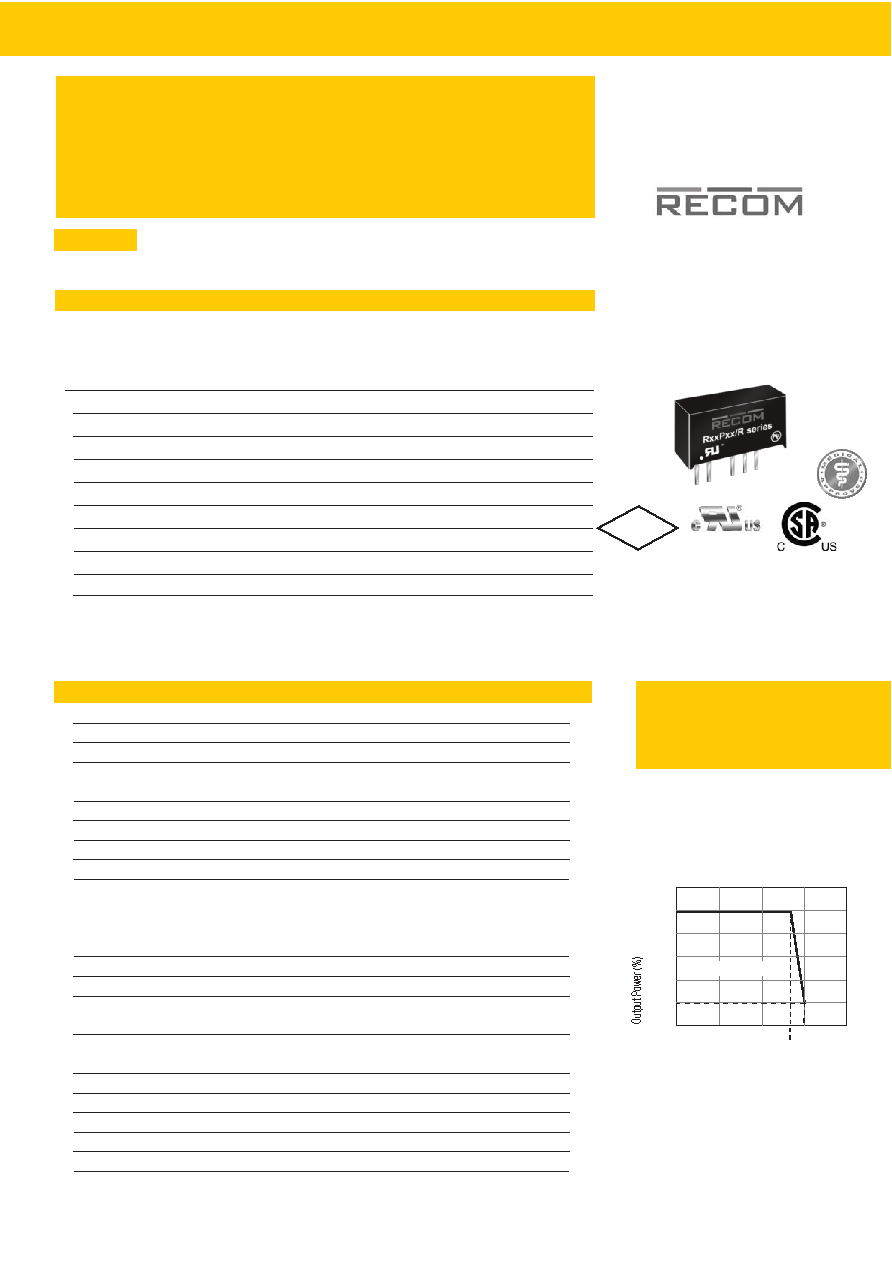

ECONOLINE

DC/DC-Converter

with 3 year Warranty

RxxPxx/R

EN-60950-1 Certified

EN-60601-1 Certified

UL/CSA 60950-1 Certified

UL-60601-1 Certified

EN-61010-1 Certified

IEC-60601-1 CB Report

Selection Guide

Part

Reinforced

Input

Output

Output

Efficiency

Max

Number

Isolation

Voltage

Voltage

Current

Std

Capacitive

SIP 7

(kVDC)

(VDC)

(VDC)

(mA)

(%)

RxxP3.3S*

/R6.4 & /R8

5, 9, 12, 15, 24

3.3

303

70~80

2200µF

RxxP05S*

/R6.4 & /R8

5, 9, 12, 15, 24

5

200

75-80

1000µF

RxxP09S*

/R6.4 & /R8

5, 9, 12, 15, 24

9

111

75-82

1000µF

RxxP12S*

/R6.4 & /R8

5, 9, 12, 15, 24

12

84

75-82

470µF

RxxP15S*

/R6.4 & /R8

5, 9, 12, 15, 24

15

66

75-83

470µF

RxxP3.3D*

/R6.4 & /R8

5, 9, 12, 15, 24

±3.3

±151

72-79

±1000µF

RxxP05D*

/R6.4 & /R8

5, 9, 12, 15, 24

±5

±100

75-82

±470µF

RxxP09D*

/R6.4 & /R8

5, 9, 12, 15, 24

±9

±55

75-82

±470µF

RxxP12D*

/R6.4 & /R8

5, 9, 12, 15, 24

±12

±41

75-82

±220µF

RxxP15D*

/R6.4 & /R8

5, 9, 12, 15, 24

±15

±33

75-83

±220µF

xx = Input Voltage. Other input and output voltage combinations available on request.

* add Suffix “P” for Continuous Short Circuit Protection, e.g.

R05P05S/P, R05P05D/P

* add Suffix “/X2” for single output with alternative pinout, e.g.

R05P05S/X2, R05P05S/P/X2

* add Suffix “/R6.4” or “/R8” for Reinforced Isolation, e.g.

R05P05D/R6.4, R05P05S/P/X2/R8

Input Voltage Range

±10%

Output Voltage Accuracy

±5%

Line Voltage Regulation

1.2%/1% of Vin typ.

Load Voltage Regulation

3.3, 5V output types

15% max.

(10% to 100% full load)

other output types

10% max.

Output Ripple and Noise (20MHz BW)

200mVp-p max.

Operating Frequency

20kHz min. / 50kHz typ. / 85kHz max.

Efficiency at Full Load

65% min. / 75% typ.

Minimum Load = 0%

Specifications valid for 10% minimum load only.

Reinforced Isolation /R6.4

(tested for 1 second)

6400VDC

(rated for 1 minute**)

3200VAC / 60Hz

Reinforced Isolation /R8

(tested for 1 second)

8000VDC

(rated for 1 minute**)

4000VAC / 60Hz

Isolation Capacitance

4pF min. / 10pF max.

Isolation Resistance

15 G

Ω min.

Short Circuit Protection

1 Second

P-Suffix

Continuous

Operating Temperature Range (free air convection)

-40°C to +85°C (see Graph)

Case Temperature

105°C max.

Storage Temperature Range

-55°C to +125°C

Relative Humidity

95% RH

Package Weight

4.3g

Packing Quantity

25 pcs per Tube

Potting Material

Silicone Rubber Compound (UL94V-0)

continued on next page

Features

Unregulated

Converters

Description

100

60

20

40

100

50

0

-40

85

150

Operating Temperature °C

0

80

Safe Operating Area

1 Watt

SIP 7 Single

& Dual Output

Derating-Graph

(Ambient Temperature)

The RxxPxxS_D Series of DC/DC Converters are certified to UL/CSA-60950. This makes

them ideal for safety applications where approved or reinforced isolation is required. The

reinforced versions are also EN61010-1 certified for Lab Equipment Safety.

Refer to Application Notes

E314885

RoHS

2011/65/EU

6/6

**Any data referred to in this datasheet are of indicative

nature and based on our practical experience only. For

further details, please refer to our Application Notes.

REV: 2/2015

E-73
