MB-0278-2

JAE PMK Div. Proprietary. Copyright © 2015, Japan Aviation Electronics Industry, Ltd.

3/5

Part Number List

Type

Part Number

Drawing No.

Specification

No.

Handling

Instructions

Receptacle

FO-BD2-R

SJ113293

JACS-70210

JAHL-70210

Plug

(Applicable

cable dia.)

7.0mm

FO-BD2-P

SJ113292

5.86mm to 7.2

FO-BD2-P-V2

SJ115669

8.5mm to 10.0

FO-BD2-P-V4

SJ115958

Waterproof Cap for Receptacle

(without wire rope)

FO-BD2-RCAP

SJ114663

Waterproof Cap for Receptacle

(with wire rope)

FO-BD2-RCAP/WR

SJ113294

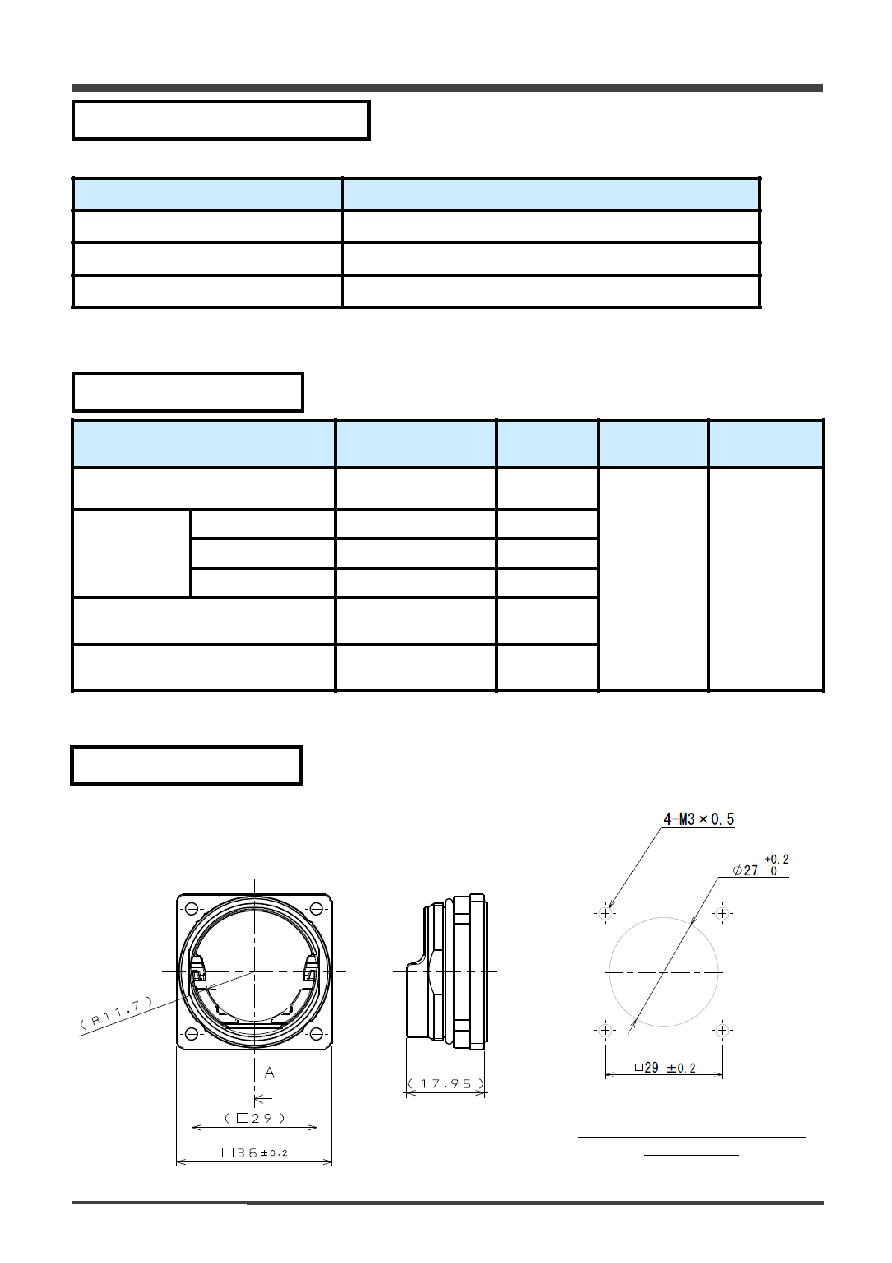

Outer Dimensions

■ Receptacle: FO-BD2-R

Panel attachment hole dimensions

(for reference)

Panel attachment compatible with

TE manufactured FullAXS.

■ Waterproof Cap for Receptacle (with wire rope):

FO-BD2-RCAP/WR

Component

Material / Finish

Cap

Synthetic resin

Tapping Screw

Stainless steel

Wire Rope

Copper alloy / nickel plating, stainless steel

Materials and Finishes
