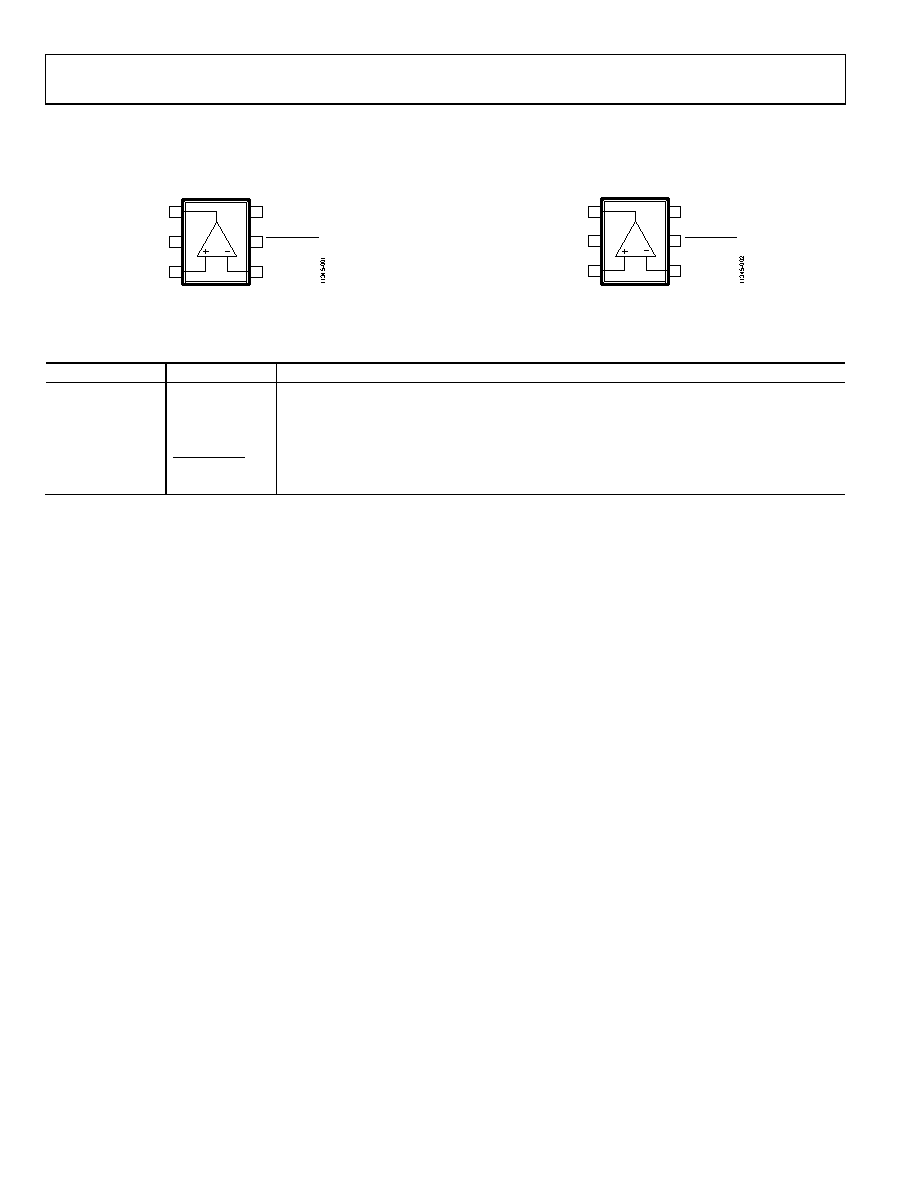

background image
ADA4805-1/ADA4805-2
Data Sheet
PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS
VOUT 1
–VS 2
+IN
3
+VS
ADA4805-1
6
SHUTDOWN
5
–IN
4
Figure 4. 6-Lead SC70 Pin Configuration
VOUT 1
–VS 2
+IN
3
+VS
6
SHUTDOWN
5
–IN
4
ADA4805-1
Figure 5. 6-Lead SOT-23 Pin Configuration
Table 7. ADA4805-1 Pin Function Descriptions
Pin No.
Mnemonic
Description
1
VOUT
Output.
2
−VS
Negative Supply.
3
+IN
Noninverting Input.
4
−IN
Inverting Input.
5
SHUTDOWN
Active Low Power-Down.
6
+VS
Positive Supply.
Rev. B | Page 8 of 25
