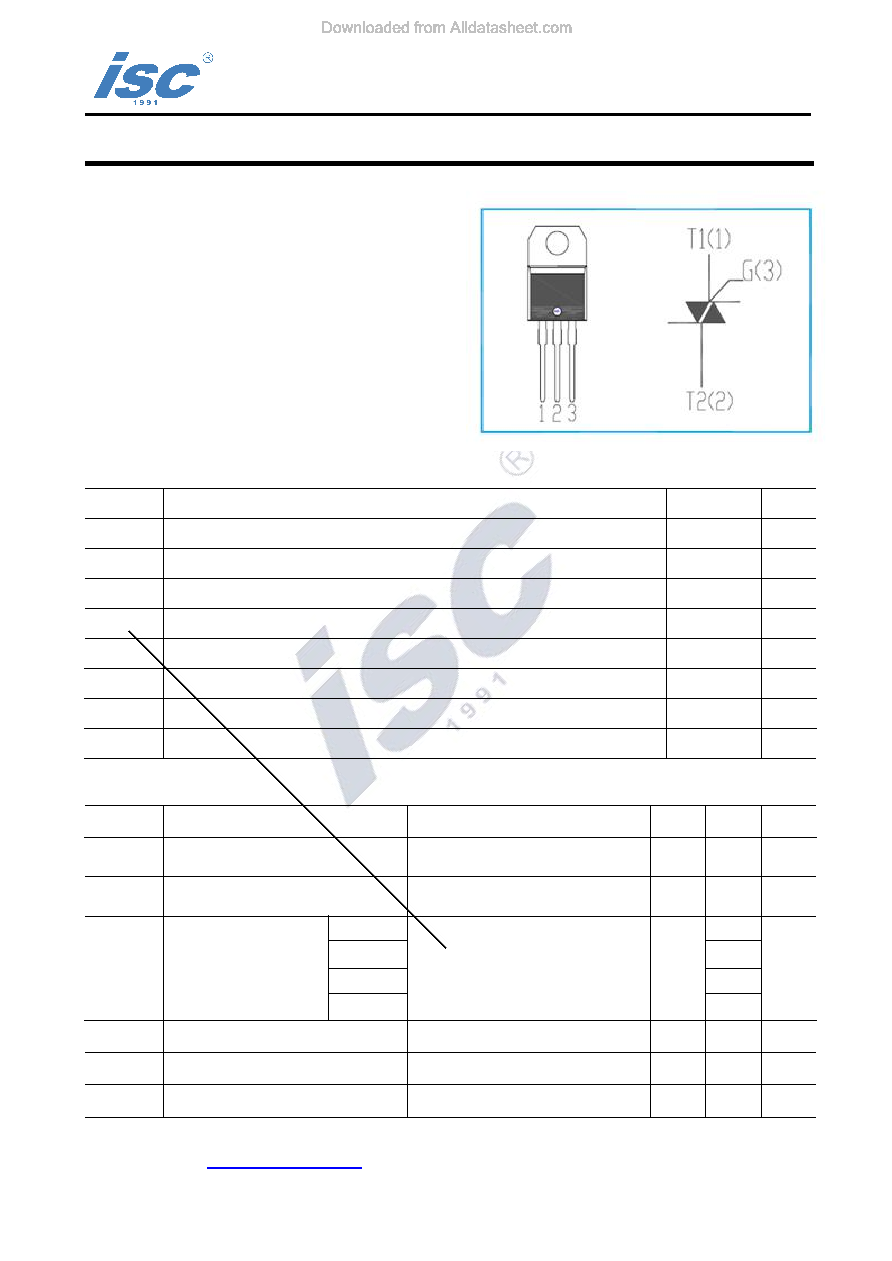

INCHANGE Semiconductor
isc website： www.iscsemi.com
isc & iscsemi is registered trademark
isc Triacs
BT136
FEATURES
·
With TO-220 package
·
Glass passivated triacs in a plastic envelope, for
use in applications requiring high bidirectional
transient and blocking voltage capability and high
thermal cycling performance.
Typical applications Include motor control,industrial
and domestic lighting, heating and static switching.
·
Minimum Lot-to-Lot variations for robust device
performance and reliable operation
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL
PARAMETER
MIN
UNIT
VDRM
Repetitive peak off-state voltage
600
V
VRRM
Repetitive peak off-state voltage
600
V
IT(RMS)
RMS on-state current (full sine wave)
4
A
ITSM
Non-repetitive peak on-state current
25
A
PGM
Peak gate power dissipation
5
W
PG(AV)
Average gate power dissipation
0.5
W
Tj
Operating junction temperature
110
℃
Tstg
Storage temperature
-45~150
℃
ELECTRICAL CHARACTERISTICS (TC=25℃ unless otherwise specified)
SYMBOL
PARAMETER
CONDITIONS
MIN
MAX
UNIT
IRRM
Repetitive peak reverse current
VR=VRRM,
VR=VRRM, Tj=110℃
0.01
0.5
mA
IDRM
Repetitive peak off-state current
VD=VDRM,
VD=VDRM, Tj=110℃
0.01
0.5
mA
IGT
Gate trigger current
Ⅰ
VD=12V; IT= 0.1A, RL= 30Ω
10
mA
Ⅱ
10
Ⅲ
10
Ⅳ
25
VTM
On-state voltage
IT= 5A
1.7
V
IH
Holding current
IGT= 0.1A, VD= 12V
15
mA
VGT
Gate trigger voltage
VD=12V; RL= 30Ω all quadrant
1.5
V
