HMC557A

Data Sheet

Rev. C | Page 22 of 23

APPLICATIONS INFORMATION

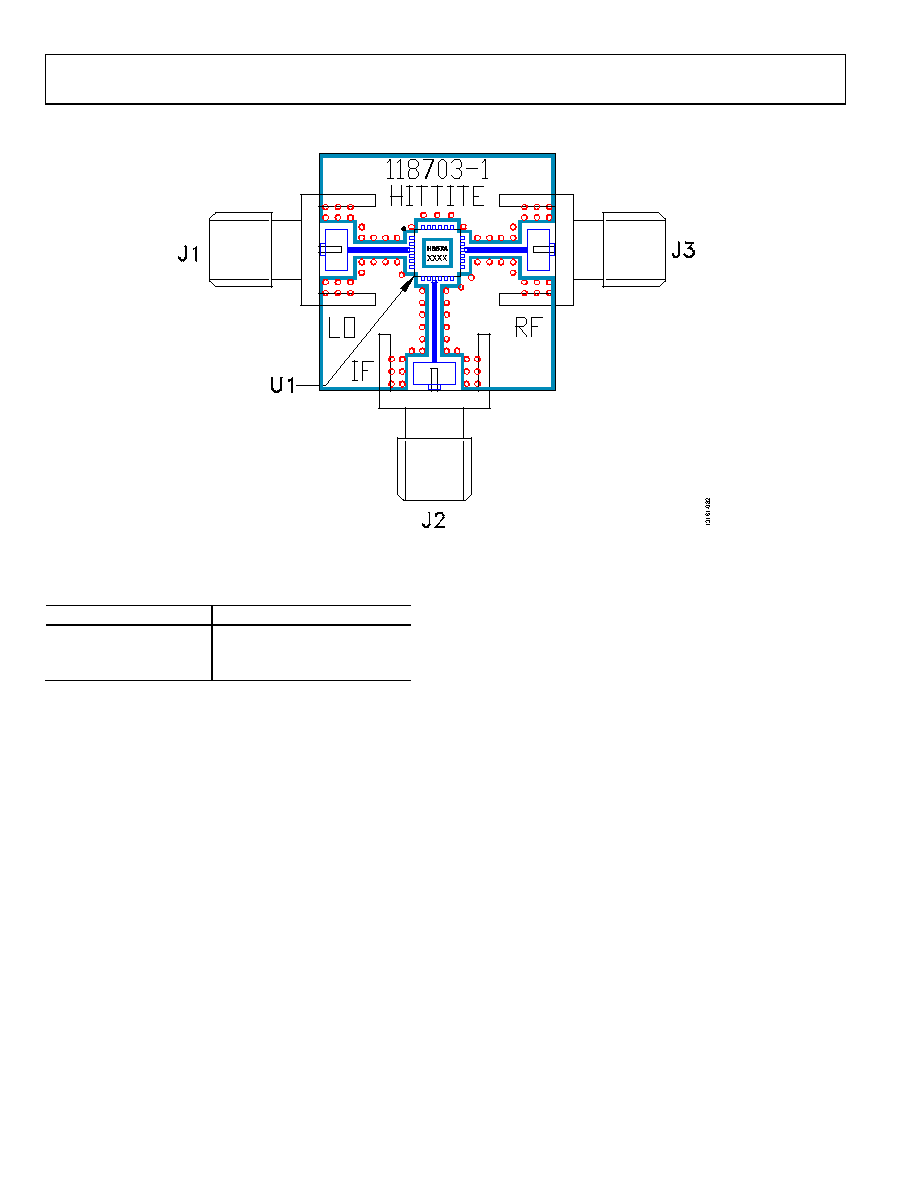

Figure 83. Evaluation Printed Circuit Board (PCB)

Table 5. List of Materials for Evaluation PCB

EV1HMC557ALC41

Item

Description

J1, J2, J3

Johnson SMA connector

HMC557ALC4 mixer

PCB2

118703 evaluation PCB3

Reference this number when ordering the complete evaluation PCB.

The circuit board material is Rogers 4350.

This is the bare PCB of the evaluation PCB kit (see Figure 83).

It is recommended that the application circuit board use RF circuit

design techniques. Use signal lines with a 50 Ω impedance, and

connect the package ground leads and exposed pad directly to

the ground plane. Use a sufficient number of via holes to connect

the top and bottom ground planes. The evaluation circuit board

shown in Figure 83 is available from Analog Devices, Inc., upon

request.
