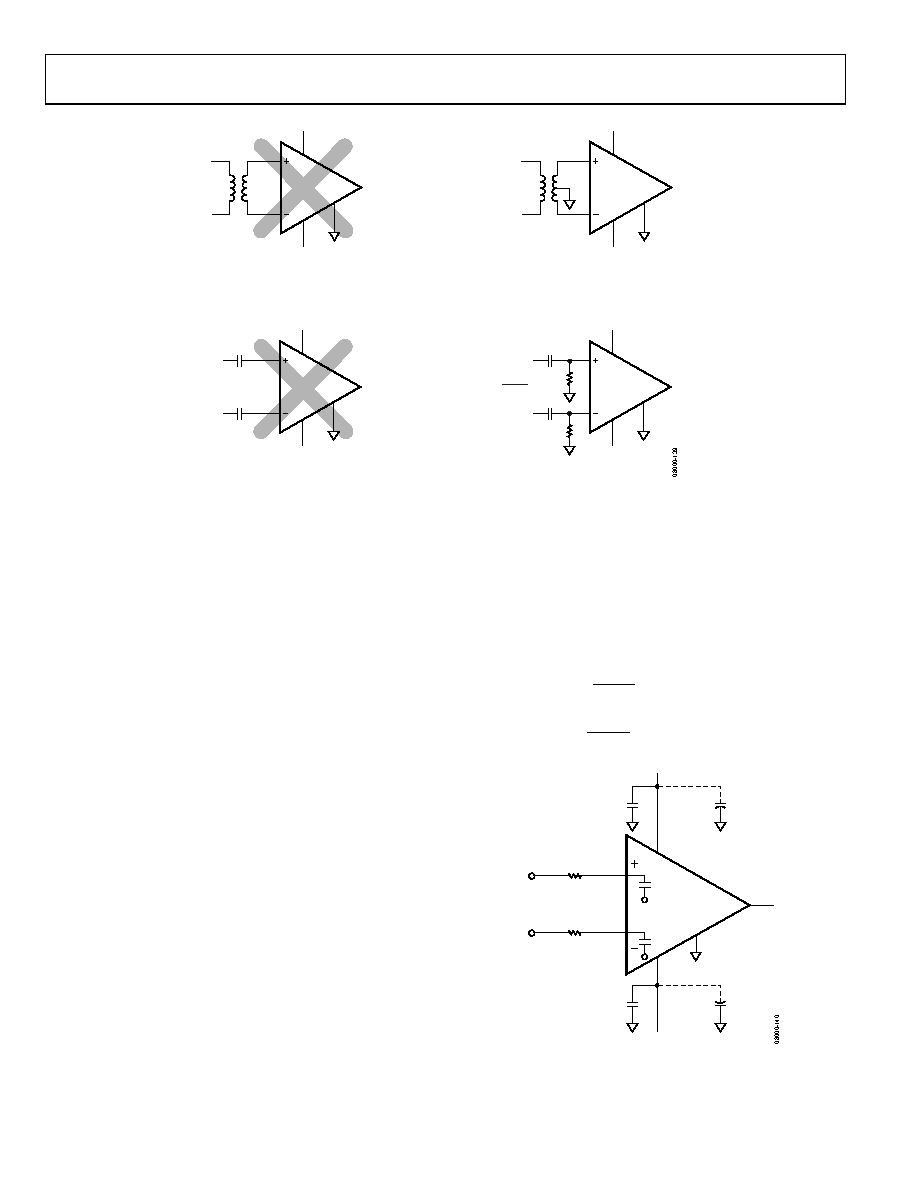

17 / 21 page ![]() AD8236 Rev. 0 | Page 16 of 20 R R 1 fHIGH-PASS = 2πRC TRANSFORMER AC-COUPLED REF C –VS +VS AD8236 REF –VS +VS AD8236 TRANSFORMER AC-COUPLED REF C –VS +VS AD8236 REF –VS +VS AD8236 Figure 38. Creating an IBIAS Path INPUT BIAS CURRENT RETURN PATH The AD8236 input bias current is extremely small at less than 10 pA. Nonetheless, the input bias current must have a return path to common. When the source, such as a transformer, cannot provide a return current path, one should be created (see Figure 38). INPUT PROTECTION All terminals of the AD8236 are protected against ESD. In addition, the input structure allows for dc overload conditions a diode drop above the positive supply and a diode drop below the negative supply. Voltages beyond a diode drop of the supplies cause the ESD diodes to conduct and enable current to flow through the diode. Therefore, an external resistor should be used in series with each of the inputs to limit current for voltages above +VS. In either scenario, the AD8236 safely handles a continuous 6 mA current at room temperature. For applications where the AD8236 encounters extreme overload voltages, as in cardiac defibrillators, external series resistors and low leakage diode clamps, such as BAV199Ls, FJH1100s, or SP720s, should be used. RF INTERFERENCE RF rectification is often a problem in applications where there are large RF signals. The problem appears as a small dc offset voltage. The AD8236, by its nature, has a 3.1 pF gate capacitance, CG, at each input. Matched series resistors form a natural low-pass filter that reduces rectification at high frequency (see Figure 39). The relationship between external, matched series resistors and the internal gate capacitance is expressed as G DIFF RC FilterFreq π 2 1 = G CM RC FilterFreq π 2 1 = AD8236 VOUT REF –VS CG CG –VS +VS –VS R R +IN –IN 0.1µF 10µF 0.1µF 10µF Figure 39. RFI Filtering Without External Capacitors |
|
|
