ADP7182

Data Sheet

Rev. I | Page 18 of 31

CH1 500mV BW

CH2 2mV

M10µs

A CH3

2.52V

T 10.00%

VOUT

VIN

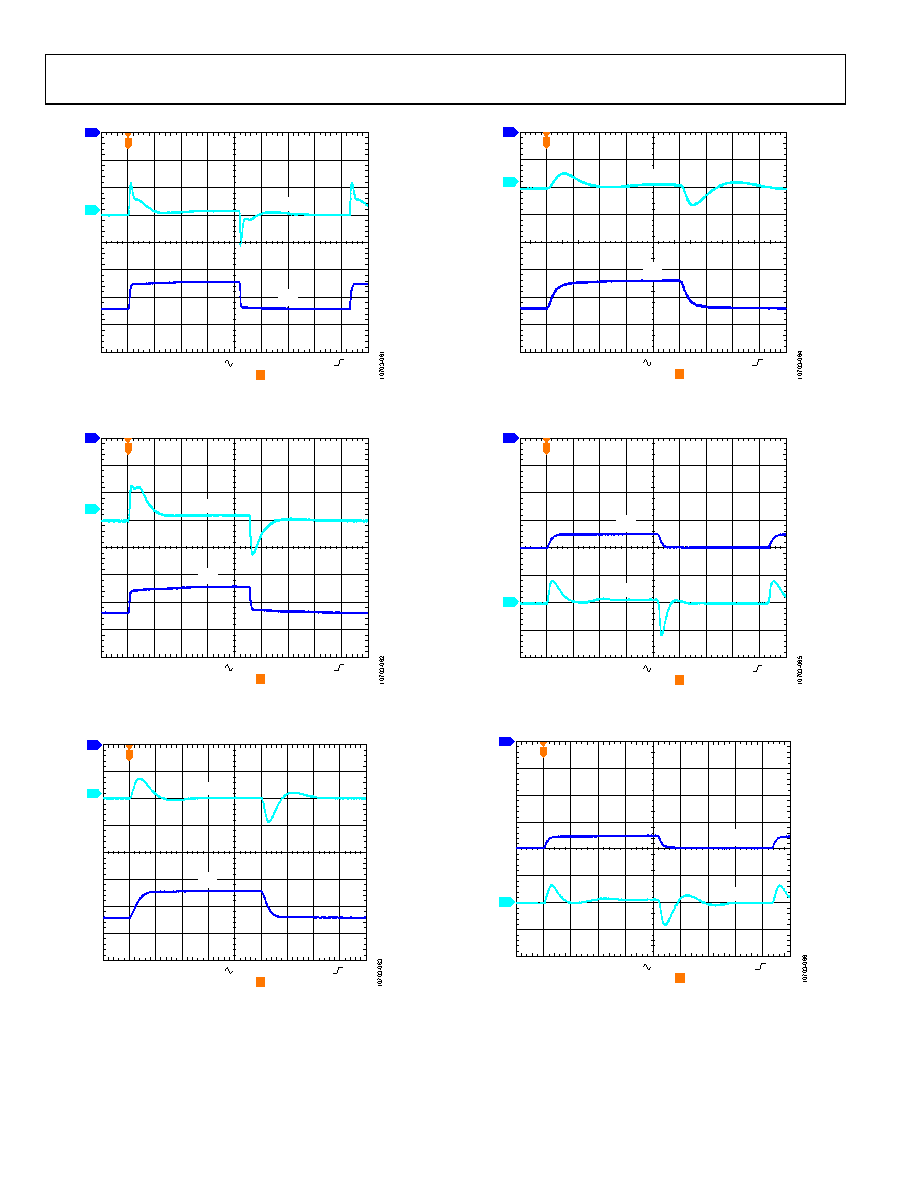

Figure 63. Line Transient Response, 500 mV Step, VOUT = −1.22 V, ILOAD = −200 mA

CH1 500mV BW

CH2 1mV

M10µs

A CH3

2.52V

T 10.00%

VOUT

VIN

Figure 64. Line Transient Response, 500 mV Step, VOUT = −1.22 V, ILOAD = −10 mA

CH1 500mV BW

CH2 5mV

M2µs

A CH3

1.60V

T 10.00%

VOUT

VIN

Figure 65. Line Transient Response, 500 mV Step, VOUT = −1.8 V, ILOAD = −200 mA

CH1 500mV BW

CH2 5mV

M2µs

A CH3

1.60V

T 10.00%

VOUT

VIN

Figure 66. Line Transient Response, 500 mV Step, VOUT = −1.8 V, ILOAD = −10 mA

CH1 1V BW

CH2 5mV

M4µs

A CH3

1.60V

T 10.00%

VOUT

VIN

Figure 67. Line Transient Response, 500 mV Step, VOUT = −3 V, ILOAD = −200 mA

CH1 1V BW

CH2 5mV

M4µs

A CH3

1.60V

T 10.00%

VOUT

VIN

Figure 68. Line Transient Response, 500 mV Step, VOUT = −3 V, ILOAD = −10 mA
