Functional description
LED6000
18/49
DocID027777 Rev 2

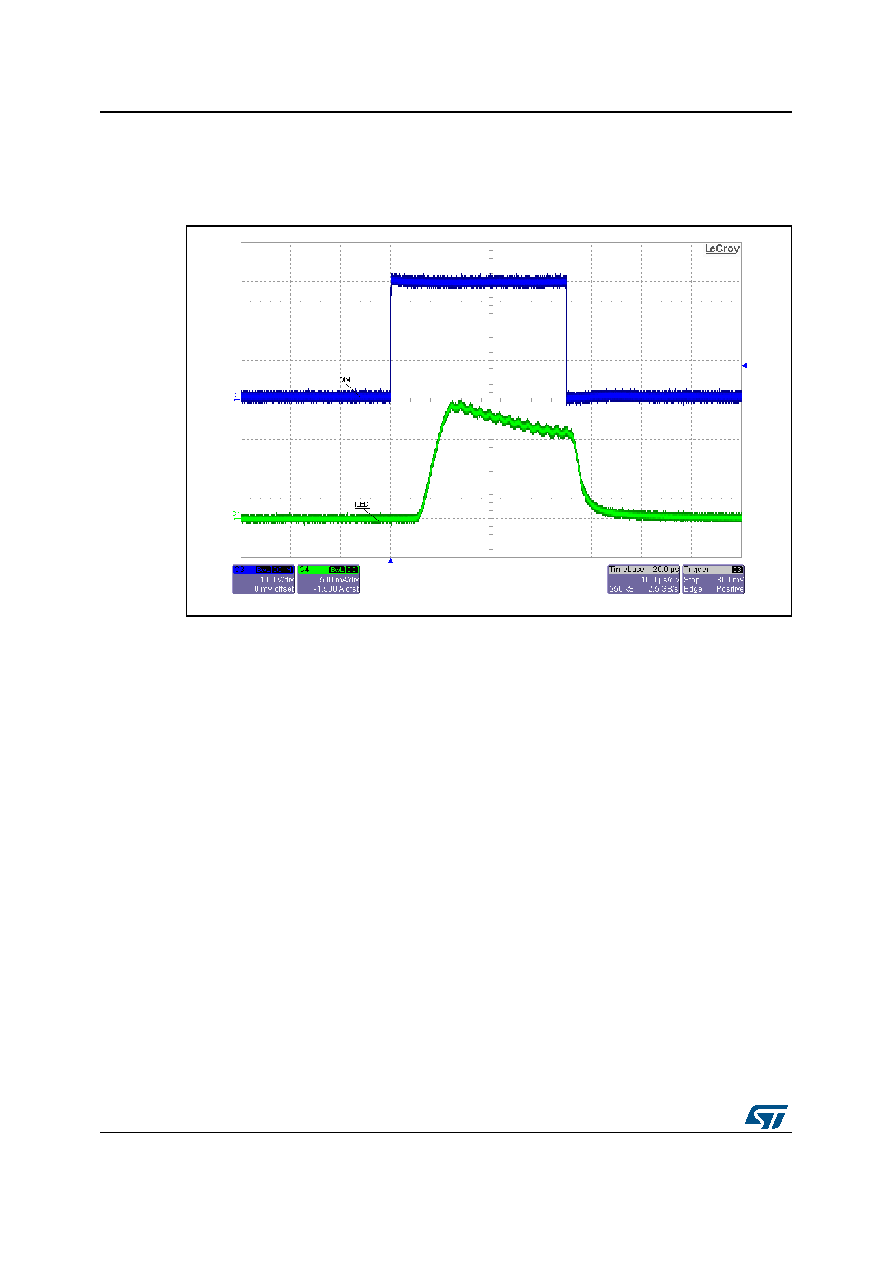

In Figure 11 a very short DIM pulse is shown, measured in the standard demonstration
board, VIN = 44 V, 12 LEDs. The programmed LED current, 1 A, is reached at the end of the
DIM pulse (35 µs).
Figure 11. Dimming operation - short DIM pulse
The above consideration is crucial when short DIM pulses are expected in the final
application. Once the external power components and the compensation network are
selected, a direct measurement to determine tRISE and tFALL is necessary to certify the
achieved dimming performance.
When the DIM is forced above the VDIMH threshold after TDIMTO has elapsed, a new soft-
start sequence is performed.
