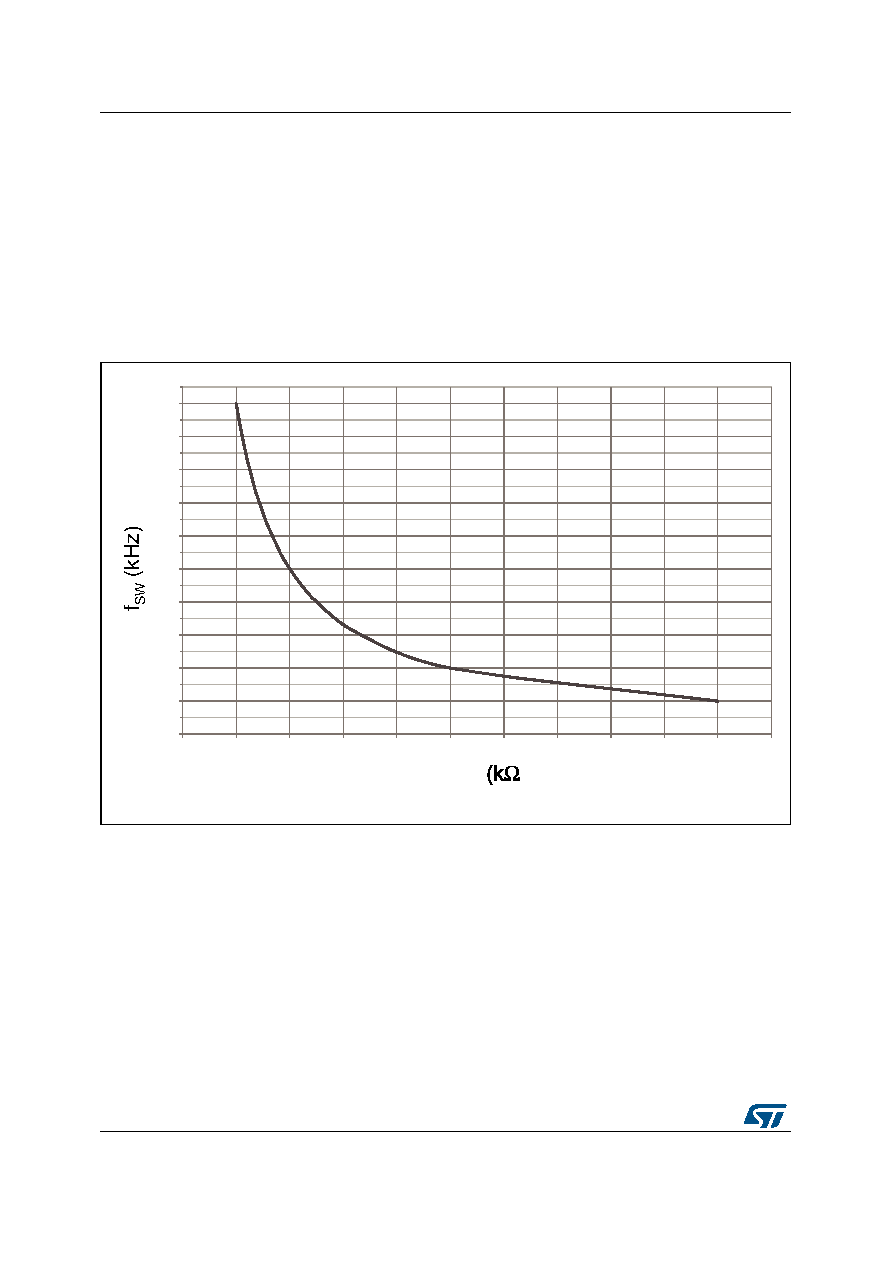

16 / 26 page ![]() Device description LED6001 16/26 DocID025575 Rev 3 7.2.4 Switching frequency oscillator and external synchronization The switching frequency of the boost controller is simply set by connecting a resistor between the FSW pin and ground. The resistor can be calculated according to Equation 4: Equation 4 Where KFSW = 5 1010 Hz (typ.) and 100 kHz fSW 1 MHz. Figure 7. Switching frequency vs. setting resistor at the FSW pin If the FSW pin is tied high (e.g. connecting it to LDO3), a 600 kHz (typ.) default switching frequency is set. In case the boost controller of the LED6001 has to be externally synchronized, the FSW pin can be used as synchronization clock input. In this case the external clock must have a frequency in the 100 kHz - 1 MHz range and a 250 ns minimum pulse duration in order to ensure internal oscillator locking. R KFSW fSW --------------- = |
|
|
