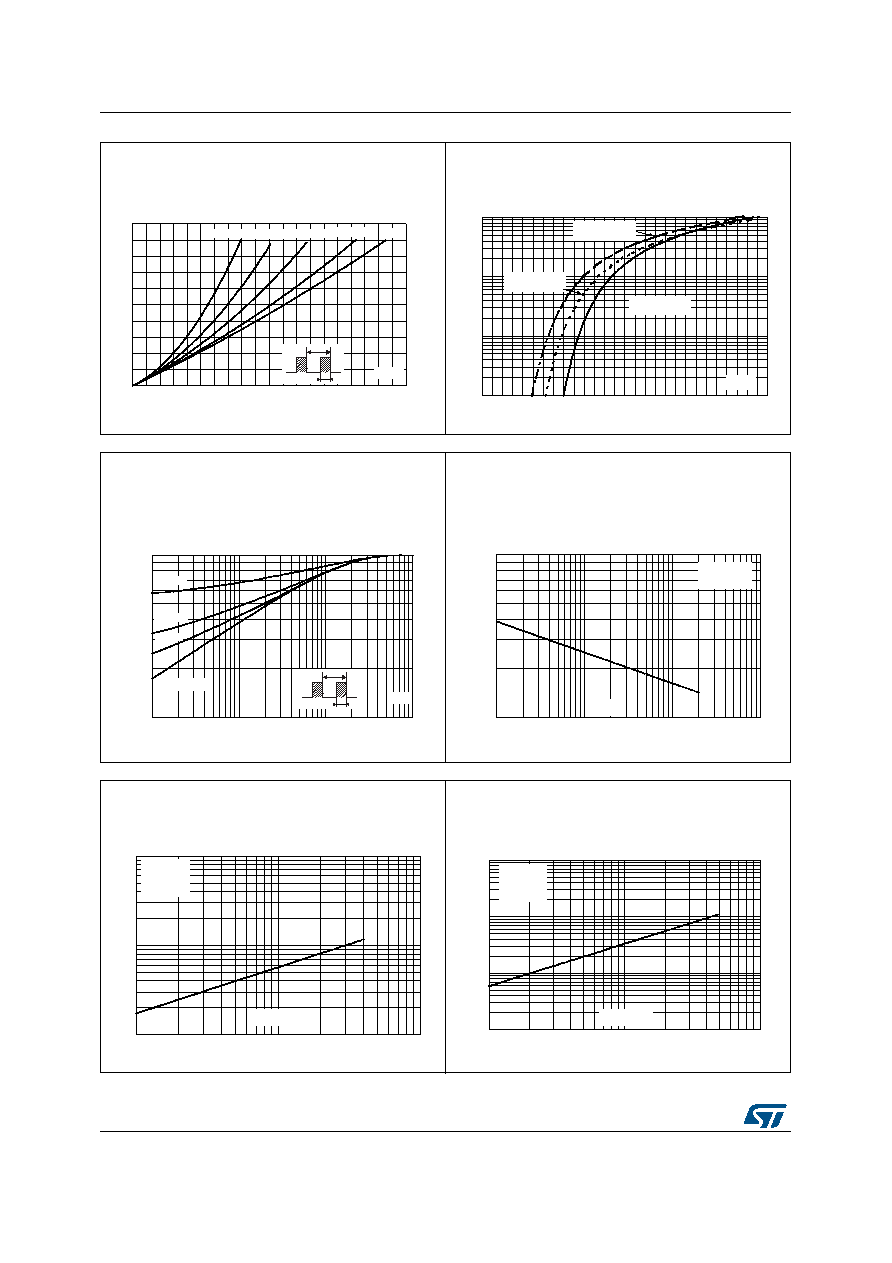

Characteristics
STTH802C
4/9
DocID8723 Rev 3
Figure 1. Average forward power dissipation
versus average forward current (per diode)
Figure 2. Forward voltage drop versus forward
current (per diode)
Figure 3. Relative variation of thermal
impedance, junction to case, versus pulse
duration
Figure 4. Junction capacitance versus reverse
applied voltage
(typical values, per diode)
Figure 5. Reverse recovery charges versus
dIF/dt (typical values, per diode)
Figure 6. Peak reverse recovery current versus
dIF/dt (typical values, per diode)
