SPE-15-8-008/B/EZ
Page 12 of 25
MA.510.C.W.C108151.G108151

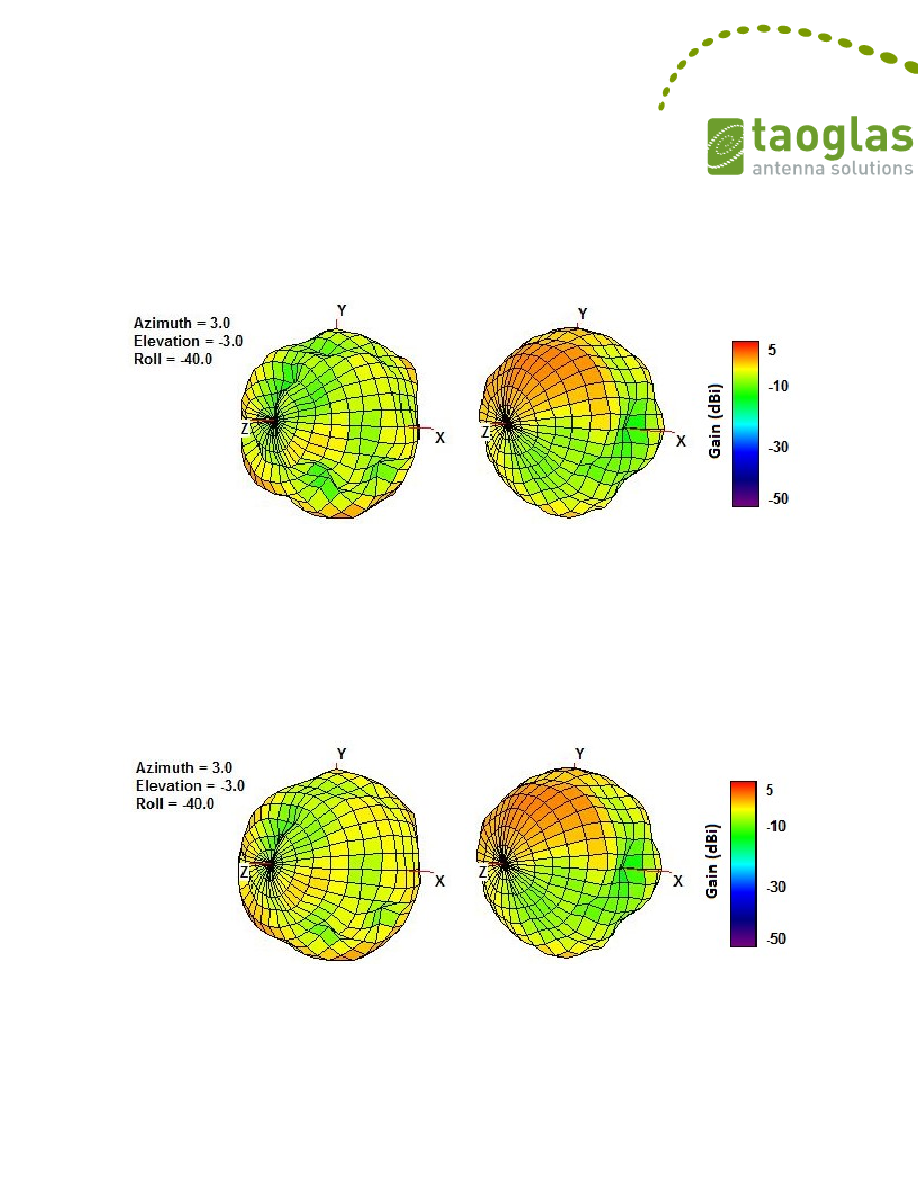

3.9 3D Radiation Patterns
3.9.1 MIMO Antenna 1
Figure 17. 3D Radiation Pattern at 2450 MHz (left side),
Radiation Pattern at 5400 MHz (right side) of the MA510 Antenna.
3.9.2 MIMO Antenna 2
Figure 18. 3D Radiation Pattern at 2450 MHz (left side),
Radiation Pattern at 5400 MHz (right side) of the MA510 Antenna
