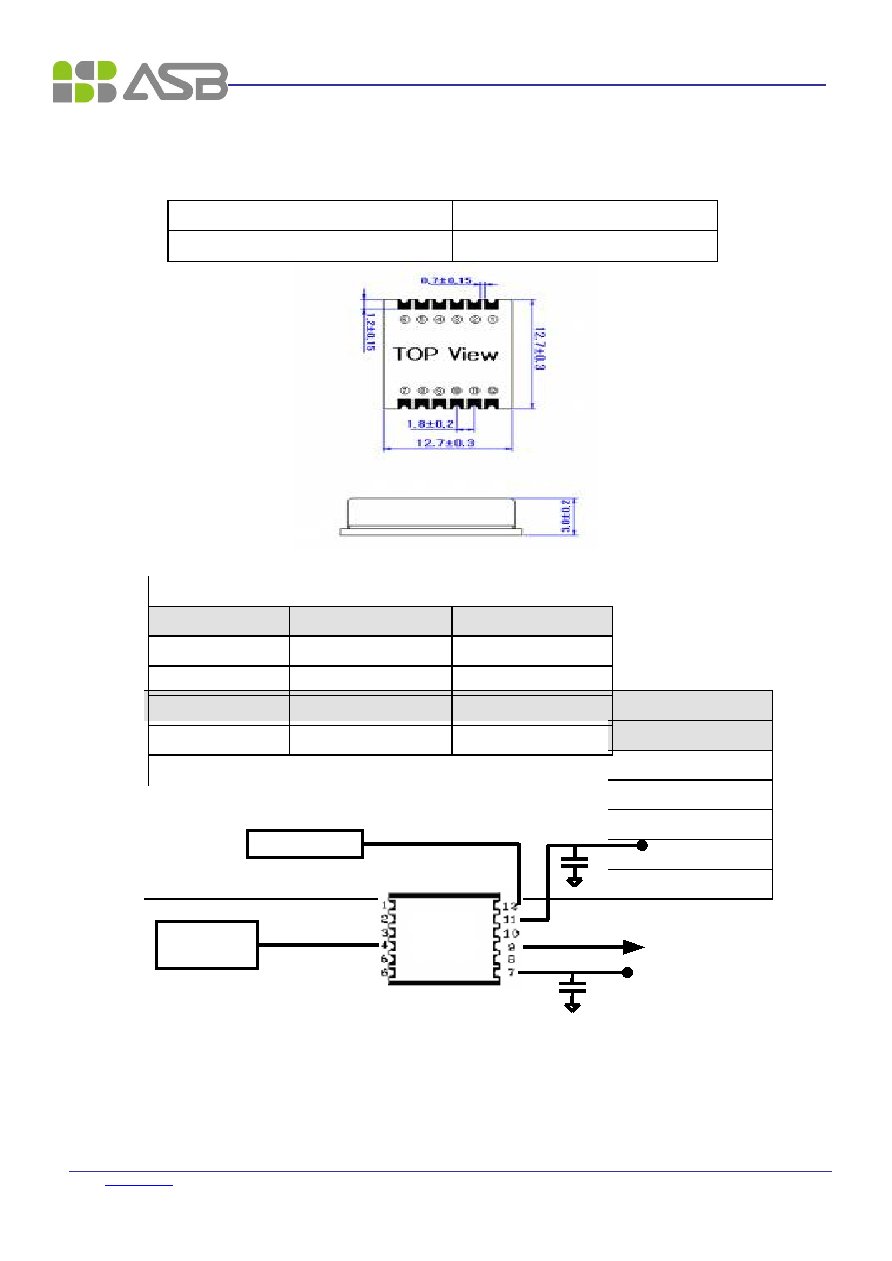

PLL Synthesizer Module

Outline Drawing

Type

Dimension

PLL IC + VCO + ROM

12.7 x 12.7 x 3

Pin Out for PLL

Pin No.

Application

Pin No.

Application

1

GROUND

7

VCC (VCO)

2

GROUND

9

RF OUT

3

GROUND

11

VCC (PLL)

4

OSC IN

12

LOCK DETECT

All other Pins are Grounded / Internal ROM

Micro-controller

Reference Freq.

Source (TCXO)

RF OUT

VCC(+5V) for PLL IC

VCC(+5V) for VCO

Capacitor for Noise

Filtering

Capacitor for Noise

Filtering

LOCK DETECT (LD)

OSC IN

APLS0000

-R
