LTPWSG datasheet(1/22 Pages) OSRAM

Part #	LTPWSG

Description	Backlighting

PDF	22 Pages

Scroll/Zoom	100%

Manufacturer	OSRAM [OSRAM GmbH]

Direct Link	http://www.osram.com

Logo

1 / 22 page

2016-03-18

1

2016-03-18

PointLED

Datasheet

Version 1.0

LT PWSG

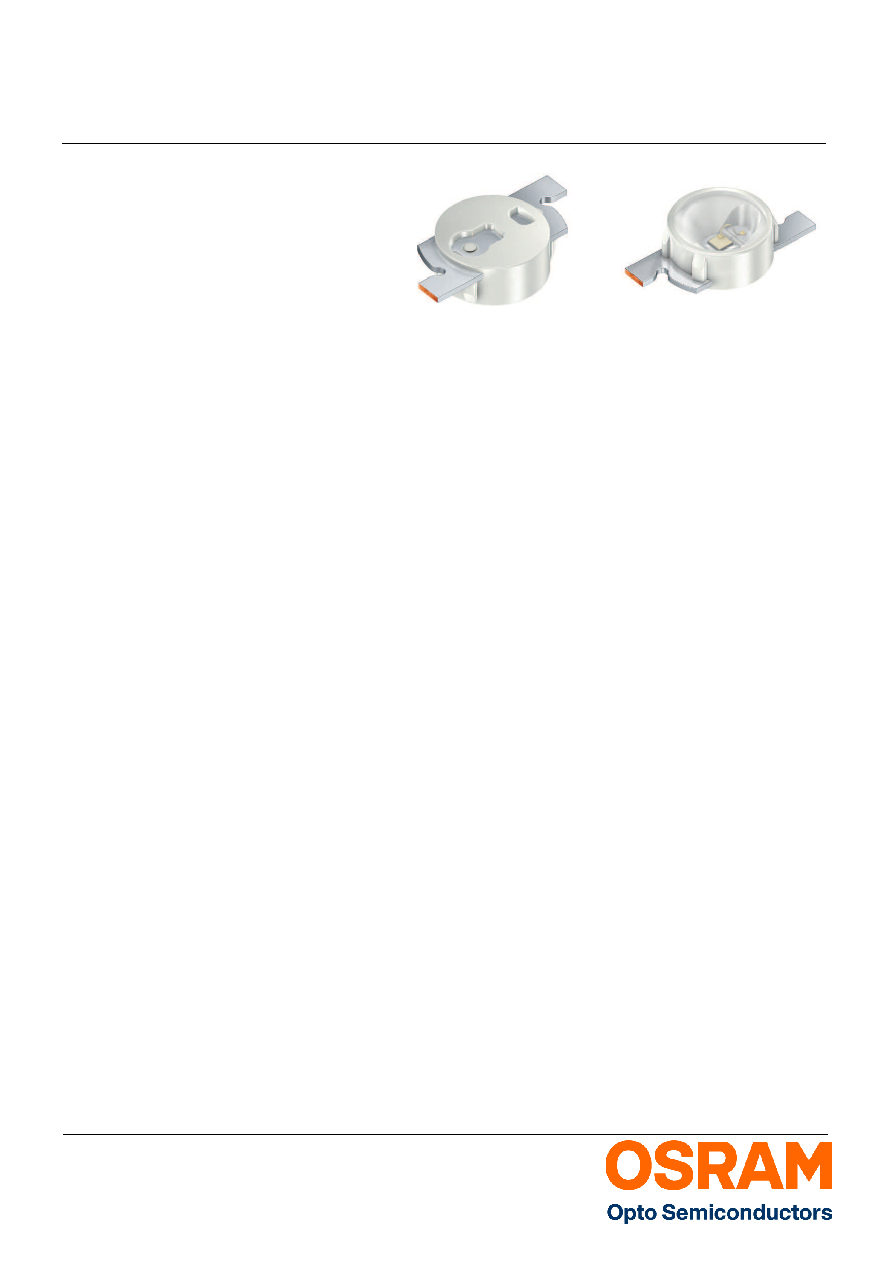

top mount

reverse mount

With a diameter of just 2 mm, the PointLED is one of

the smallest packages in its class and achieves high

luminous efficacies. Due to its round and flat package,

measuring only 0.775 mm high, it is ideal for

application where space is a sensitive issue.

Mit nur 2 mm Durchmesser gehört die PointLED zu

den kleinsten LED auf dem Markt bei hohen

Effizienzen. Aufgrund ihres runden und flachen

Gehäuses mit nur 0,775 mm Bauhöhe ist sie ideal für

Applikationen mit begrenztem Raum.

Features:

Besondere Merkmale:

•

Package: white SMT package, colorless clear

silicone resin

•

Gehäusetyp: weißes SMT Gehäuse, farbloser

klarer Silikon-Verguss

•

Technology: ThinGaN (UX:3)

•

Technologie: ThinGaN (UX:3)

•

Viewing angle at 50 % I

V: 120° (Lambertian

Emitter)

•

Abstrahlwinkel bei 50 % I

V: 120° (Lambertscher

Strahler)

•

Color: true green (528 nm)

•

Farbe: true green (528 nm)

Applications

Anwendungen

•

Backlighting

•

Hinterleuchtung

•

Signal and Symbol Luminary

•

Signal- und Symbolleuchten

•

Wearables

•

Wearables
