PRODUCT DATASHEET

HighBay series

last update 31/5/2017

DETAILS

Product Number

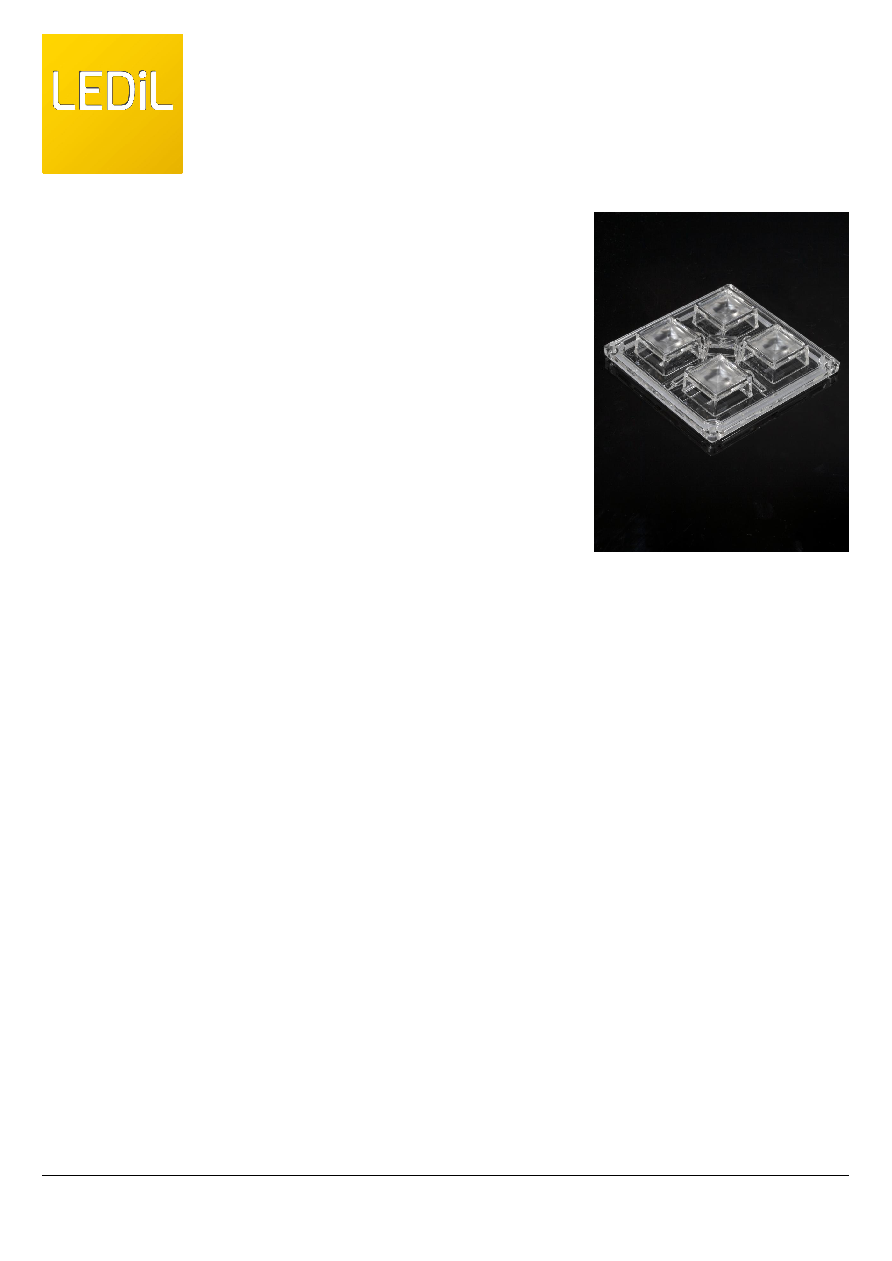

CS14713_HB-2X2MX-W

Family

HighBay

Type

Assembly

Color

clear

Diameter

90x90 mm

Height

15,35 mm

Style

square

Optic Material

PMMA

Holder Material

Fastening

screw

Status

production ready

ROHS Compliant

Yes

Date Updated

31/05/2017

OPTICAL PROPERTIES

Viewing

Light

Effi-

LED

Angle

Beam

ciency

cd/lm

Connector

SMD 5050

sim: 47

Wide

sim: 94 % sim: 1.280 -

PSL440

45 deg

Wide

91 %

1.300

-

PSL445

54 deg

Wide

93 %

0.960

-

XHP70

56 deg

Wide

91 %

0.900

-

XHP35 HD

45 deg

Wide

93 %

1.100

-

XHP50

49 deg

Wide

92 %

1.100

-

XHP50.2

sim: 57

Wide

sim: 94 % sim: 0.930 -

LUXEON M/MX

50 deg

Wide

93 %

1.100

-

LUXEON XR-M square 2x2

50 deg

Wide

93 %

1.100

-

LUXEON MZ

39 deg

Wide

90 %

1.500

-

NV4x144A

55 deg

Wide

93 %

0.960

-

NFMW48xA

sim: 46

Wide

sim: 90 % sim: 1.290 -

Duris S10

sim: 57

Wide

sim: 90 % sim: 1.100 -

OSCONIQ P 7070

sim: 50

Wide

sim: 83 % sim: 0.919 -
