PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS

GND

A1

W1

B1

SCL

SDA

12

11

10

1

3

4

9

2

PIN 1

INDICATOR

NOTES

1. EXPOSED PAD. CONNECT THE EXPOSED PAD TO THE

ELECTRICALLY UNCONNECTED. IT IS RECOMMENDED THAT

THE PAD BE THERMALLY CONNECTED TO A COPPER PLANE

FOR ENHANCED THERMAL PERFORMANCE.

AD5122A/

AD5142A

TOP VIEW

(Not to Scale)

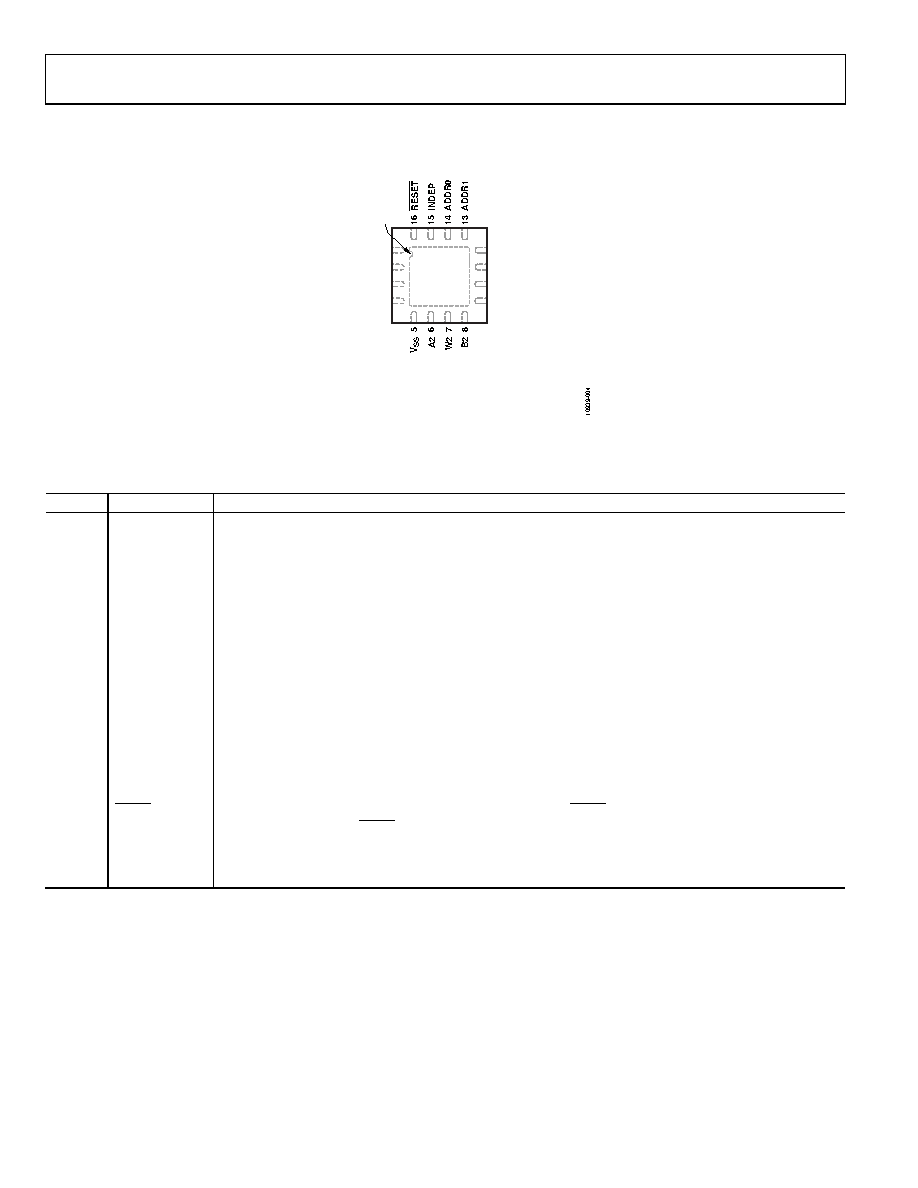

Figure 4. 16-Lead LFCSP Pin Configuration

Table 7. 16-Lead LFCSP Pin Function Descriptions

Pin No.

Mnemonic

Description

1

GND

Ground Pin, Logic Ground Reference.

2

A1

3

W1

4

B1

5

Negative Power Supply. Decouple this pin with 0.1 μF ceramic capacitors and 10 μF capacitors.

6

A2

7

W2

8

B2

9

Positive Power Supply. Decouple this pin with 0.1 μF ceramic capacitors and 10 μF capacitors.

10

11

SCL

Serial Clock Line.

12

SDA

Serial Data Input/Output.

13

ADDR1

Programmable Address (ADDR1) for Multiple Package Decoding.

14

ADDR0

Programmable Address (ADDR0) for Multiple Package Decoding.

15

INDEP

Linear Gain Setting Mode at Power-Up. Each string resistor is loaded from its associated memory location.

If INDEP is enabled, it cannot be disabled by the software.

16

RESET

Hardware Reset Pin. Refresh the RDAC registers from EEPROM. RESET is activated at logic low.

EPAD

unconnected. It is recommended that the pad be thermally connected to a copper plane for enhanced

thermal performance.
