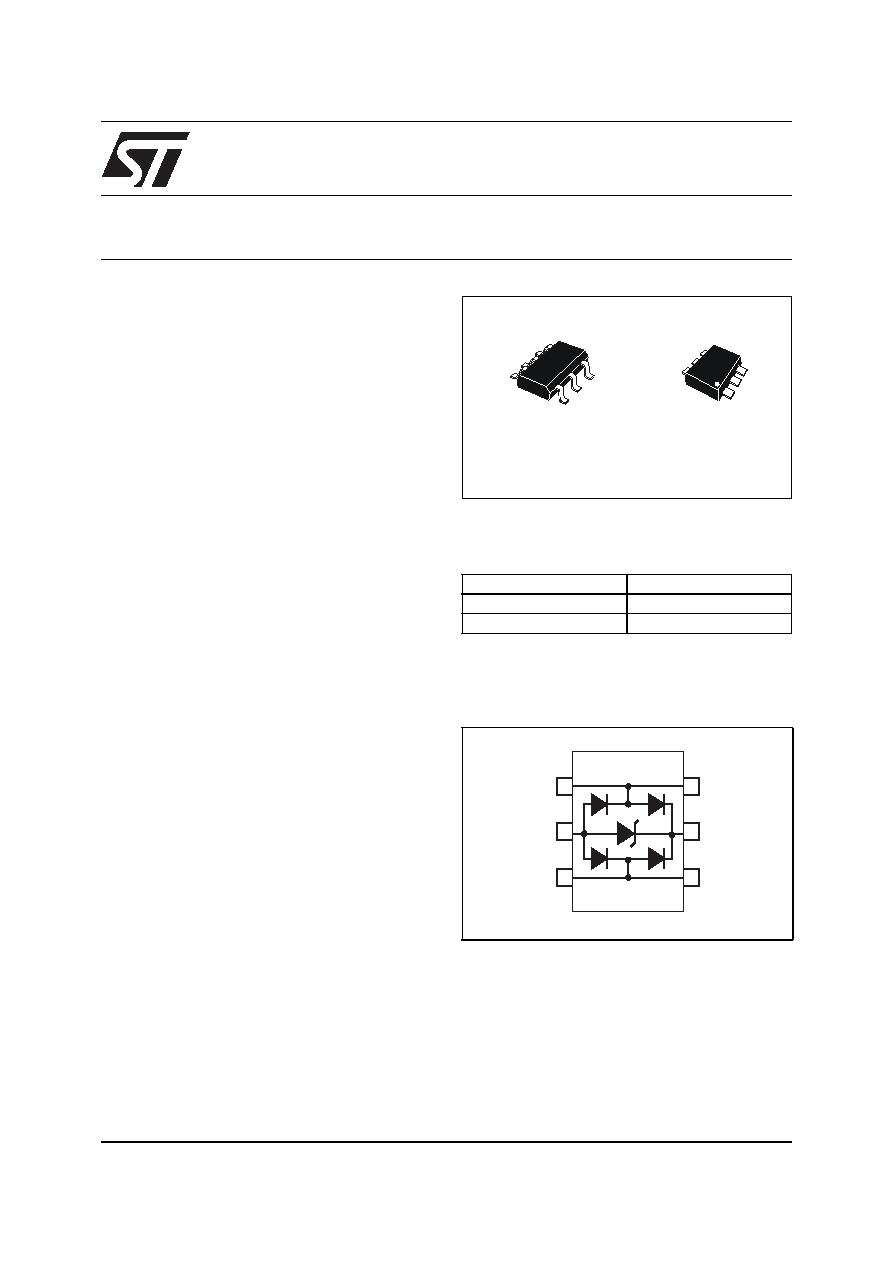

USBLC6-2

VERY LOW CAPACITANCE

ESD PROTECTION

REV. 2

SOT23-6L

USBLC6-2SC6

SOT-666

USBLC6-2P6

June 2005

MAIN APPLICATIONS

■ USB2.0 ports at 480Mbps (high speed) and

USB OTG ports

■ Backwards Compatible with USB1.1 Low and

full speed

■ Ethernet port: 10/100Mb/s

■ SIM card protection

■ Video line protection

■ Portable and mobile electronics

DESCRIPTION

The USBLC6-2P6 and USBLC6-2SC6 are two

monolithic Application Specific Devices dedicated

to ESD protection of high speed interfaces such as

USB2.0, Ethernet links and Video lines.

The very low line capacitance secures a high level

of

signal

integrity

without

compromising

in

protection sensitive

chips against the most

stringent characterized ESD strikes.

FEATURES

■ 2 data lines protection

■ Protects VBUS

■ Very low capacitance: 3.5pF max

■ Very low leakage current: 1µA max

■ SOT-666 and SOT23-6L packages

■ RoHS compliant

BENEFITS

■ Very low capacitance between lines to GND for

optimized data integrity and speed

■ Ultra low PCB space consuming: 2.9mm² max

for SOT-666 package and 9mm² max for

SOT23-6L package

■ Enhanced ESD protection: IEC61000-4-2 level

4 compliance guaranteed at device level,

hence greater immunity at system level

■ ESD protection of VBUS. Allows ESD current

flowing to Ground when ESD event occurs on

data line

■ High reliability offered by monolithic integration

■ Very low leakage current for longer operation

of battery powered devices

■ Fast response time

■ Consistant D+/D- signal balance

- Best capacitance matching tolerance I/O to

GND of 0.04pF

- Compliance with USB2.0 requirement (<1pF)

Table 1: Order Codes

Part Number

Marking

USBLC6-2SC6

UL26

USBLC6-2P6

F

Figure 1: Functional Diagram

1

6

2

5

3

4

I/O1

GND

VBUS

I/O2

COMPLIES WITH THE FOLLOWING STANDARDS:

■ IEC61000-4-2 level 4:

15kV (air discharge)

8kV

(contact discharge)

ASD

(Application Specific Devices)
