EM8564AS7 Datasheet(PDF) 3 Page - Excelliance MOS Corp.

Part # EM8564AS7
Description  HV Start-up Green-mode PWM Convertor with Brown-Out Protection
PDF  12 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  EXCELLIANCE [Excelliance MOS Corp.]
Direct Link  http://www.excelliancemos.com/
Logo EXCELLIANCE - Excelliance MOS Corp.

EM8564AS7 Datasheet(HTML) 3 Page - Excelliance MOS Corp.

  EM8564AS7 Datasheet HTML 1Page - Excelliance MOS Corp. EM8564AS7 Datasheet HTML 2Page - Excelliance MOS Corp. EM8564AS7 Datasheet HTML 3Page - Excelliance MOS Corp. EM8564AS7 Datasheet HTML 4Page - Excelliance MOS Corp. EM8564AS7 Datasheet HTML 5Page - Excelliance MOS Corp. EM8564AS7 Datasheet HTML 6Page - Excelliance MOS Corp. EM8564AS7 Datasheet HTML 7Page - Excelliance MOS Corp. EM8564AS7 Datasheet HTML 8Page - Excelliance MOS Corp. EM8564AS7 Datasheet HTML 9Page - Excelliance MOS Corp. Next Button
Zoom Inzoom in Zoom Outzoom out
 3 / 12 page
background image
2013/05/16
A.1
3
EM8564A

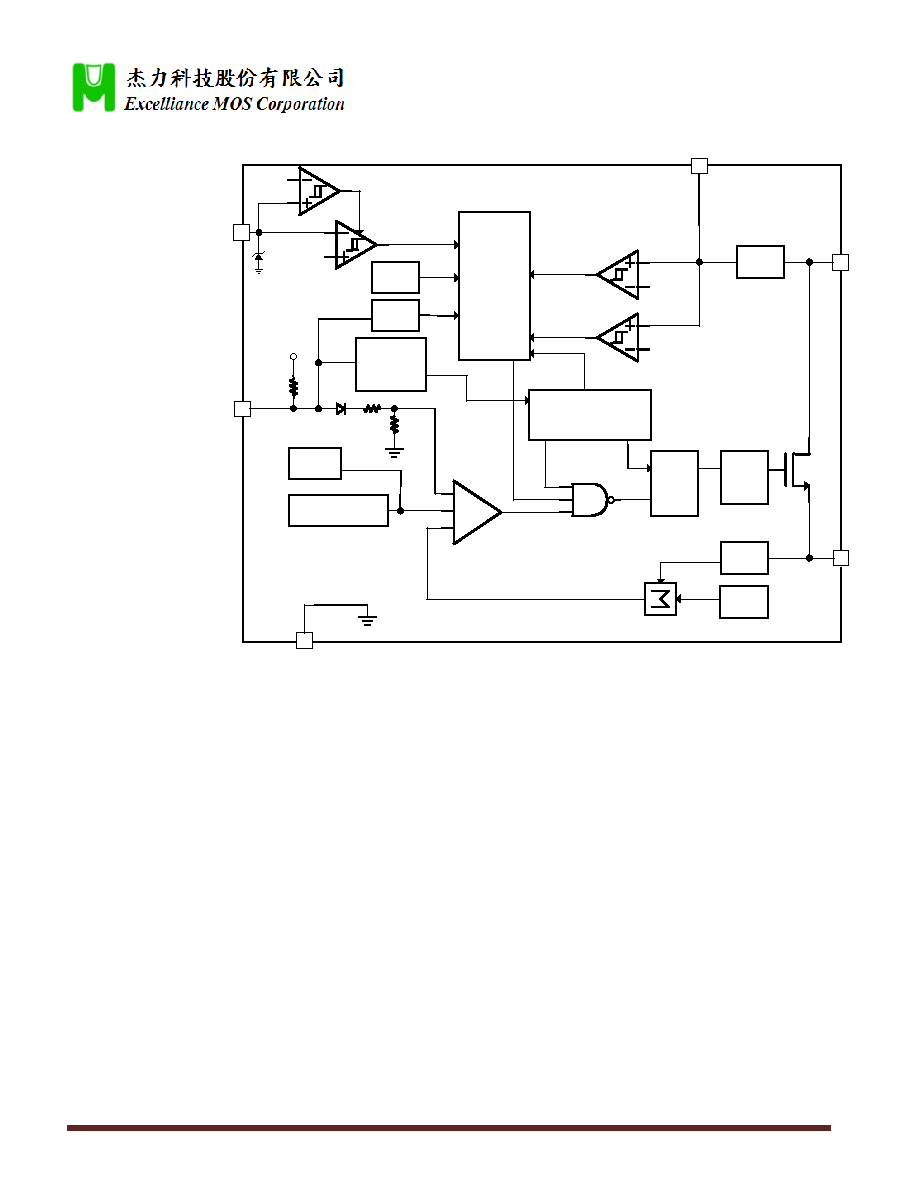

Function Block Diagram
CS
COMP
BNO
VCC
GND
R
S
Q
OTP
OLP
+
-
-
Green
mode
PWM
comparator
OCP
compensation
Control
Logic
Oscillator
29V
16V / 10V
UVLO
OVP
Vbias
Max duty
2R
R
Soft
start
PG
2.8V
/ 2.3V
BNO
D
Start
up
LEB
Slope
Comp
Driver
4V
0.2V
