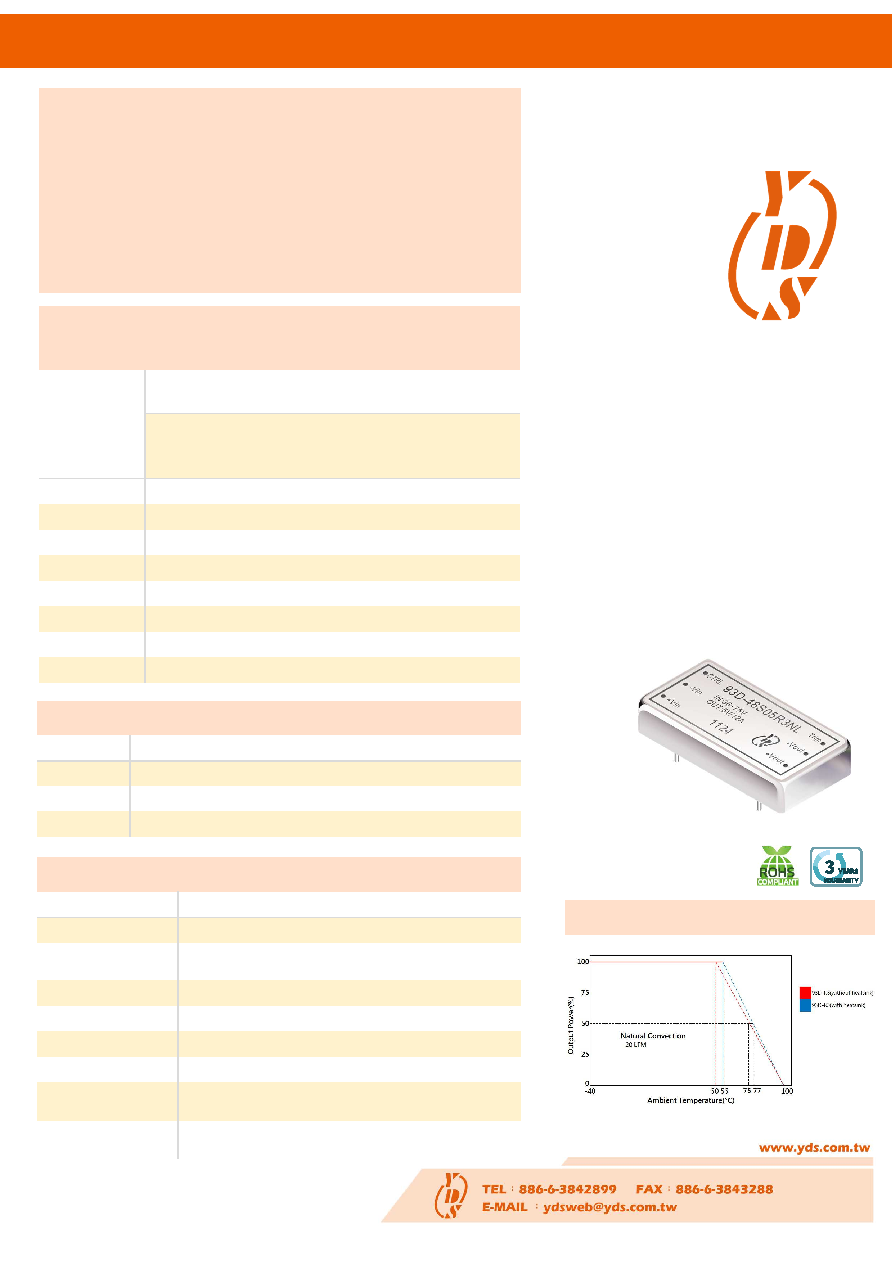

DC-DC Converter
93D-R3 SERIES
60Watt 1.6KV Isolated
2：1 Input Voltage Range
Single Output
2” x 1”
Specifications typical at TA=25°C, nominal input voltage
and rated output current unless otherwise specified
Part Number
Input
Voltage
Input
Current
Output
Voltage
Output
Current
Efficiency
Capacitor
Load
Vdc
No
Load
(mA
TYP)
Full
Load
(mA
TYP)
Vdc
(mA)
%TYP
uF max.
93D-24S03R3NL
18-36
90
2213
3.3
14000
87
16500
93D-24S05R3NL
18-36
90
2841
5
12000
88
16500
93D-24S12R3NL
18-36
40
2809
12
5000
89
3300
93D-24S15R3NL
18-36
40
2809
15
4000
89
2200
93D-48S03R3NL
36-72
60
1094
3.3
14000
88
16500
93D-48S05R3NL
36-72
60
1404
5
12000
89
16500
93D-48S12R3NL
36-72
30
1389
12
5000
90
3300
93D-48S15R3NL
36-72
30
1374
15
4000
91
2200
YUAN DEAN SCIENTIFIC
YUAN DEAN SCIENTIFIC CO.,LTD
Rev:0 2018/10/31
93D-R3 SERIES
Temperature Derating Graph
Input Specifications
Parameters
Conditions
Min
Typ
Max
Units
Voltage Types
2:1
Filter
Pi Network
Protection
Fuse Recommended
Output Specifications
Parameters
Conditions
Min
Typ
Max
Units
Voltage Tolerance
Full load@Vin(nom.)
±2
%
Short Circuit/Restart
Protection
Hiccup, automatic recovery
Over Load Protection
150
%
Line Regulation
±0.5
%
Load Regulation
10% to 100% load
±0.5
%
Ripple & Noise
BW=DC To 20MHz
100
mVp-p
Transient response
setting time
25% load step change
250
us
External Trim Adj.
Range
±10
%
FEATURES：
60 Watt 2”X1” DIL Package
2:1Wide Input Voltage
100% Burned In
High Efficiency To 91%
Customized Solutions Available
Remote Control:On/Off
UL94V-0 Package Material
Operating Temperature:-40℃ TO +75℃(77℃ With HS)
3 Years Warranty
