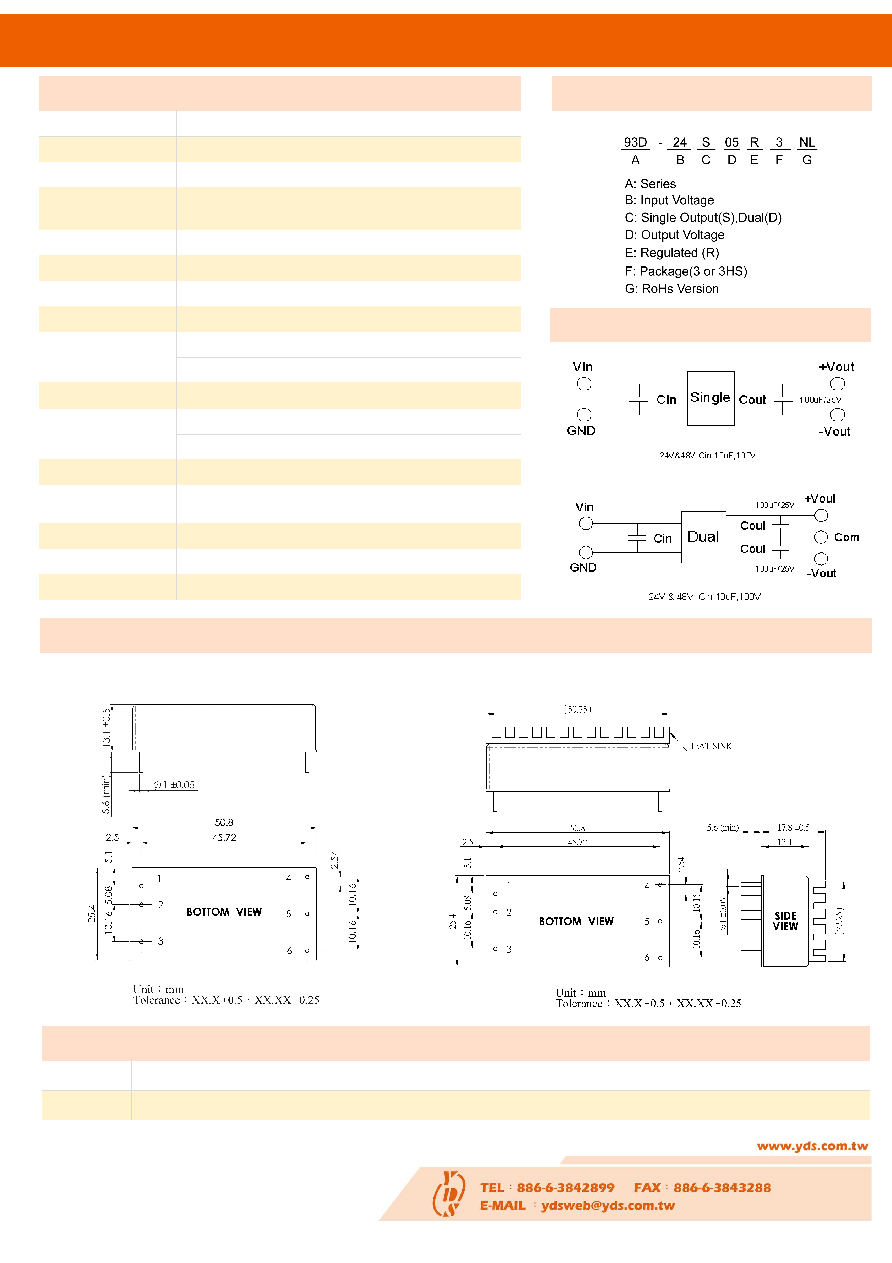

General Specifications
Parameters
Conditions
Min
Typ
Max
Units
Isolation Resistance
500Vdc
1000
MΩ
Switching Frequency
300
KHz
Operating Temperature
Without Heatsink
With Heatsink
-40
-40
75
77
℃
Humidity
Non Condensing
5
95
%
Cooling
Natural Convection (20LFM)
Case material
Nickel Coated with Non-Conductive Base
Weight
48.6/55.3
g
Dimensions
93D-R3 Model
50.8X25.4X13.1
mm
93D-R3HS Model
50.8X25.4X17.8
Potting Material
Silicone (UL94V-0 rated)
Remote ON/OFF
ON
Open
OFF
Short to -Vin
Isolation Voltage
1600
VDC
MTBF
MIL-HDBK-217F @25℃ ,
Ground Benign
109600
Hours
Storage Temperature
-55
+125
℃
Case Temperature
+110
℃
Isolation Capacitance
2200
pF
Recommended Test Circuit
93D-R3 SERIES
YUAN DEAN SCIENTIFIC CO.,LTD
Rev:0 2018/10/31
Part Number
Dimensions
PIN Assignment
Pin
1
2
3
4
5
6
Function
+Vin
-Vin
Remote On/Off
+Vout
-Vout
Trim
93D-R3 Outline
93D-R3HS Outline
