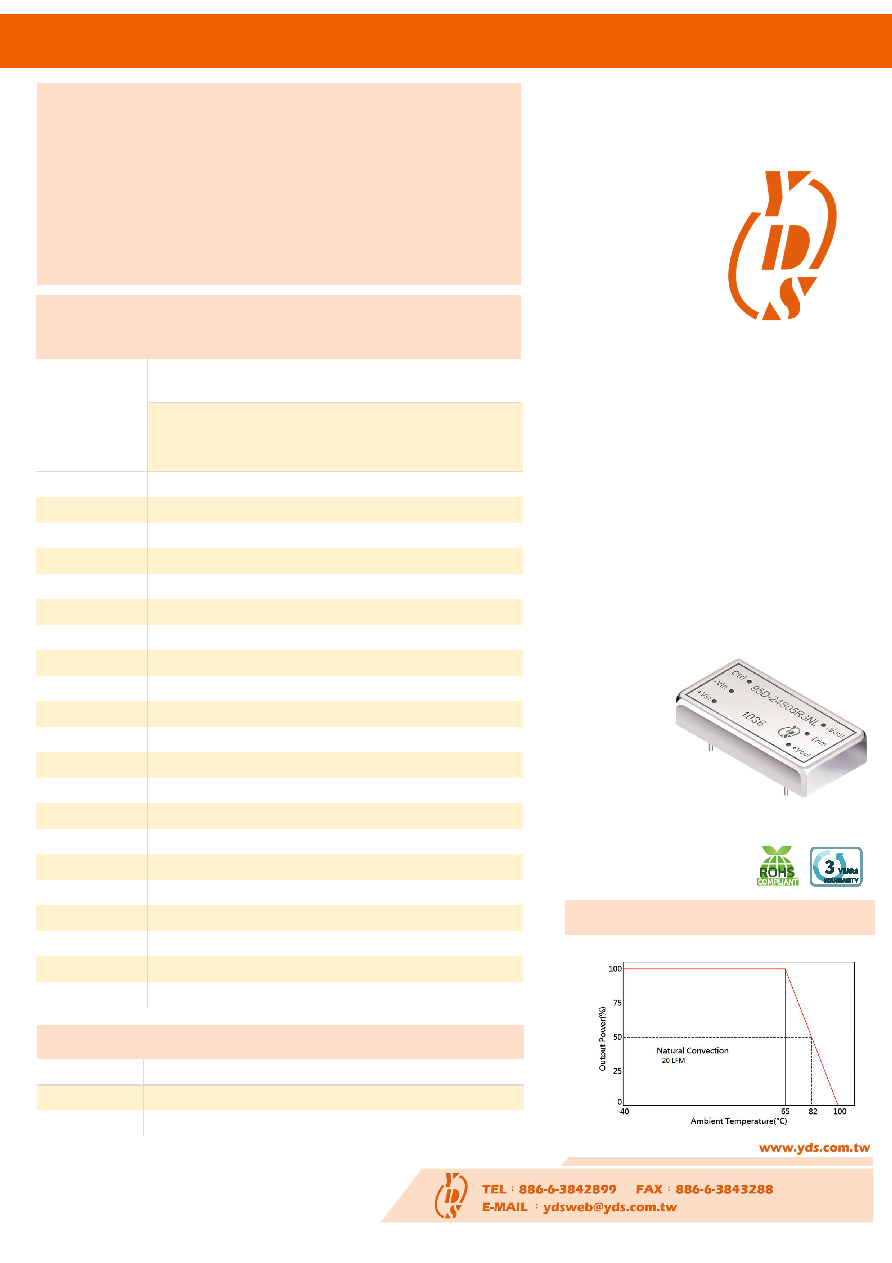

1 / 2 page  DC-DC Converter 95D-R3 SERIES 20Watt 1.5KV Isolated 2：1 Input Voltage Range Single & Dual Output 2” x 1” Specifications typical at TA=25°C, nominal input voltage and rated output current unless otherwise specified Part Number Input Voltage Input Current Output Voltage Output Current Efficiency Capacitor load Vdc No Load (mA TYP) Full Load (mA TYP) Vdc Full Load (mA) %TYP uF MAX 95D-12S03R3NL 9-18 70 1800 3.3 5500 84 1500 95D-12S05R3NL 9-18 70 1937 5 4000 86 1500 95D-12S12R3NL 9-18 30 1941 12 1670 86 120 95D-12S15R3NL 9-18 30 1933 15 1330 86 120 95D-12D05R3NL 9-18 70 1984 ±5 ±2000 84 ±1000 95D-12D12R3NL 9-18 30 1964 ±12 ±835 85 ±120 95D-12D15R3NL 9-18 30 1955 ±15 ±665 85 ±120 95D-24S03R3NL 18-36 70 900 3.3 5500 84 3300 95D-24S05R3NL 18-36 70 968 5 4000 86 3300 95D-24S12R3NL 18-36 30 970 12 1670 86 330 95D-24S15R3NL 18-36 30 966 15 1330 86 330 95D-24D05R3NL 18-36 70 992 ±5 ±2000 84 ±2000 95D-24D12R3NL 18-36 30 982 ±12 ±835 85 ±330 95D-24D15R3NL 18-36 30 977 ±15 ±665 85 ±330 95D-48S03R3NL 36-75 40 450 3.3 5500 84 5600 95D-48S05R3NL 36-75 40 484 5 4000 86 5600 95D-48S12R3NL 36-75 30 485 12 1670 86 680 95D-48S15R3NL 36-75 30 483 15 1330 86 680 95D-48D05R3NL 36-75 40 496 ±5 ±2000 84 ±3300 95D-48D12R3NL 36-75 30 491 ±12 ±835 85 ±220 95D-48D15R3NL 36-75 30 488 ±15 ±665 85 ±220 YUAN DEAN SCIENTIFIC YUAN DEAN SCIENTIFIC CO.,LTD Rev:0 2018/10/31 95D-R3 SERIES Temperature Derating Graph Input Specifications Parameters Conditions Min Typ Max Units Voltage Types 2:1 Filter Pi TYPE FEATURES： 20 Watt DIL Package 2:1Wide Input Voltage 100% Burned In High Efficiency To 86% Customized Solutions Available Remote Control:On/Off UL94V-0 Package Material Operating Temperature:-40℃ TO +82℃ 3 Years Warranty |
