Technical Data
10520
Effective April 2017
FP1008R5 and FP1008R6
High frequency, high current power inductors
www.eaton.com/electronics

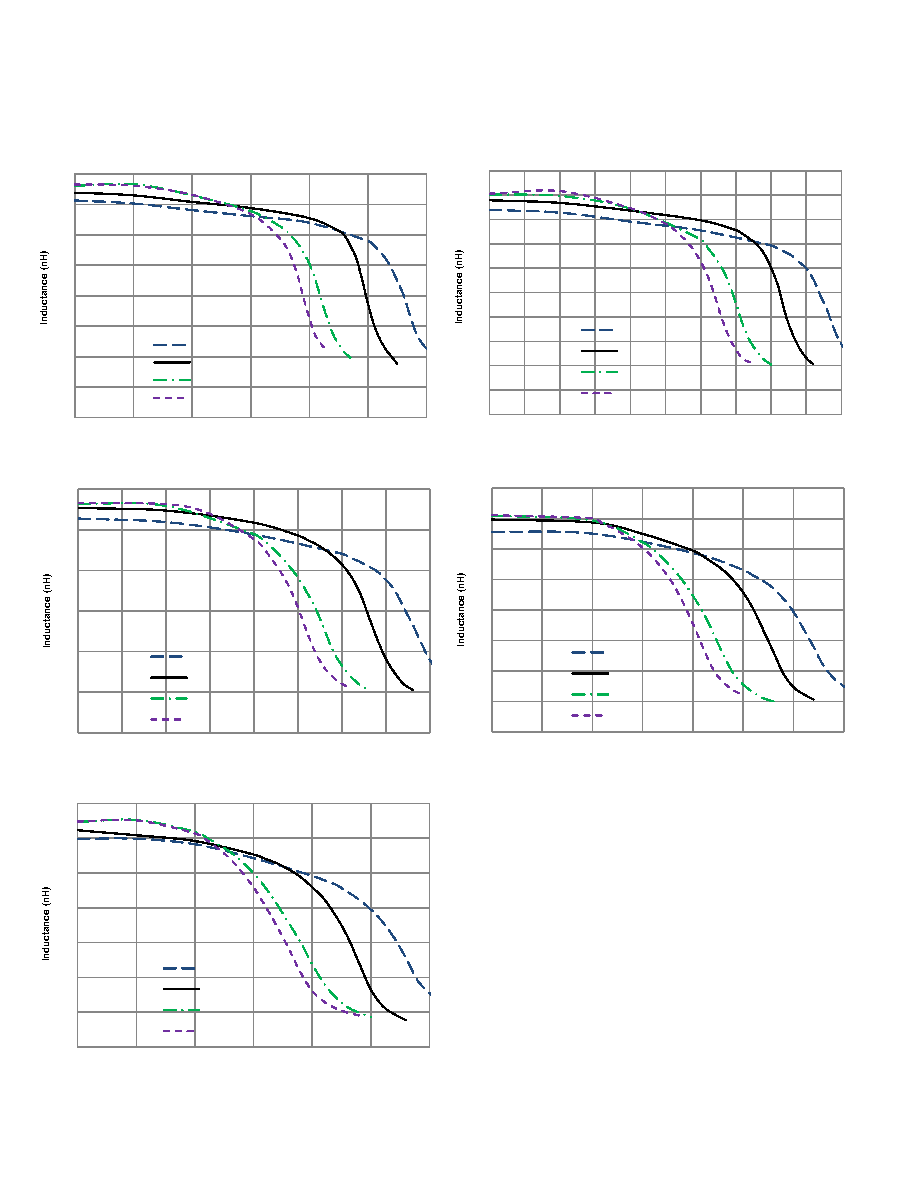

Inductance characteristics
0
20
40
60
80
100
120
140
160
020406080100
120
Idc (A)
FP1008R6-R150-R
-40 °C
+25 °C
+100 °C
+125 °C
0
20
40
60
80
100
120
140
160
180
200
0102030405060708090100
Idc (A)
FP1008R6-R180-R
-40 °C
+25 °C
+100 °C
+125 °C
0
40
80
120
160
200
240
01020304050607080
Idc (A)
FP1008R6-R220-R
-40 °C
+25 °C
+100 °C
+125 °C
0
40
80
120
160
200
240
280
320
010203040506070
Idc (A)
FP1008R6-R270-R
-40 °C
+25 °C
+100 °C
+125 °C
0
50
100
150
200
250
300
350
0102030405060
Idc (A)
FP1008R6-R300-R
-40 °C
+25 °C
+100 °C
+125 °C
