SUPER-SMALL PACKAGE CMOS VOLTAGE REGULATOR
S-817 Series
Rev.3.0_00
Seiko Instruments Inc.
24

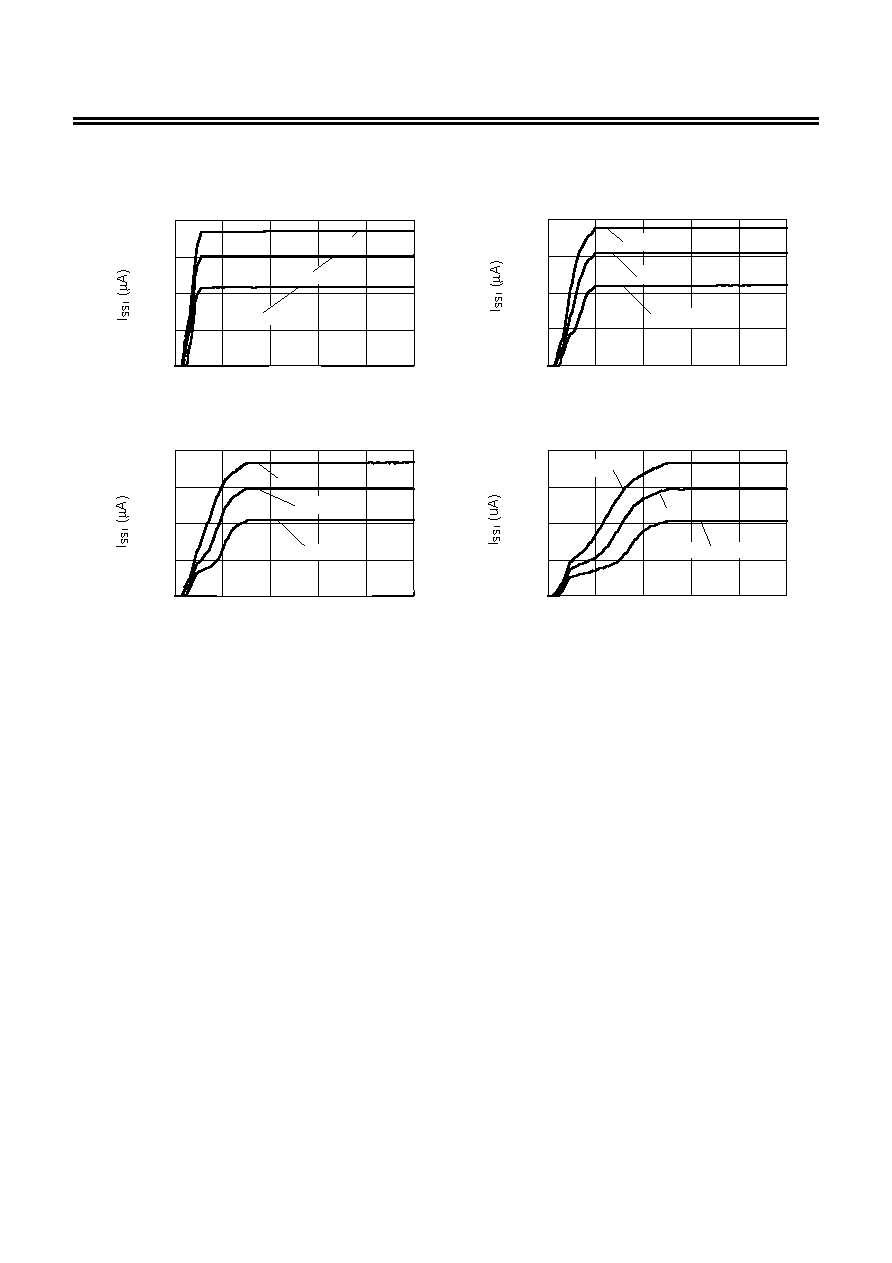

9. Current Consumption vs. Input Voltage
S-817A11A/S-817B11A
0
0.4
0.8
1.2
1.6
0
2
4
6
8
10
VIN (V)
85°C
Ta=-40°C
25°C
S-817A20A/S-817B20A
0
0.4
0.8
1.2
1.6
0
2
4
6
8
10
VIN (V)
Ta=-40°C
25°C
85°C
S-817A30A/S-817B30A
0
0.4
0.8
1.2
1.6
0
2
4
6
8
10
VIN (V)
Ta=-40°C
25°C
85°C
S-817A50A/S-817B50A
0
0.4
0.8
1.2
1.6
0
2
4
6
8
10
VIN (V)
Ta=-40°C
25°C
85°C
