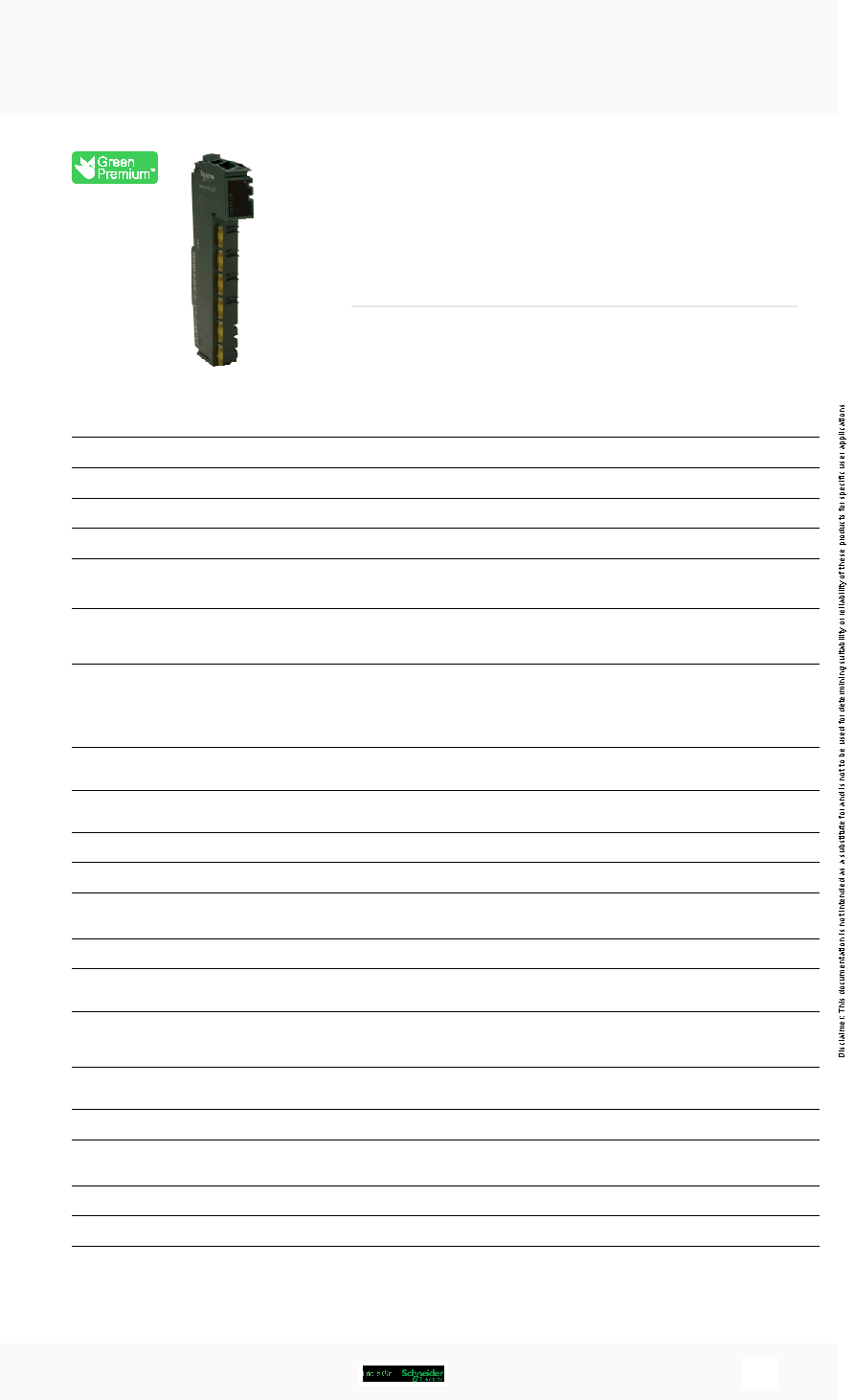

Product data sheet
Specifications
Discrete output module, Modicon
TM5, digital 2O, 30 V DC/230 V AC,
5 A, relay, 2 C/O
TM5SDO2R
Main
Range of product
Modicon TM5
Product or component type
Discrete output module
Discrete output number
2
Discrete output type
Relay
Complementary
Range compatibility
PacDrive LMC motion controller
Modicon LMC058
Modicon M258
Product compatibility
Logic controller
PacDrive LMC Pro
Motion controller
PacDrive LMC Pro 2
PacDrive LMC Eco
Output voltage
230 V AC
30 V DC
Output voltage limits
184...276 V AC
24...36 V DC
Discrete output function
2 C/O
Current per channel
5 A
Maximum current per output
common
10 A
Colour
Black
Response time
<= 10 ms from state 0 to state 1 for output
<= 10 ms from state 1 to state 0 for output
Protection type
Reverse polarity protection
Without overload protection
Without short-circuit protection
Isolation
No insulation between channels
500 Vrms AC insulation between channel and bus
Current consumption
90 mA at 5 V DC bus
Maximum power dissipation in
W
2.45 W
Marking
CE
Net weight
0.025 kg
