Data Sheet

ADPA7009-2

TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. 0 | 11 of 24

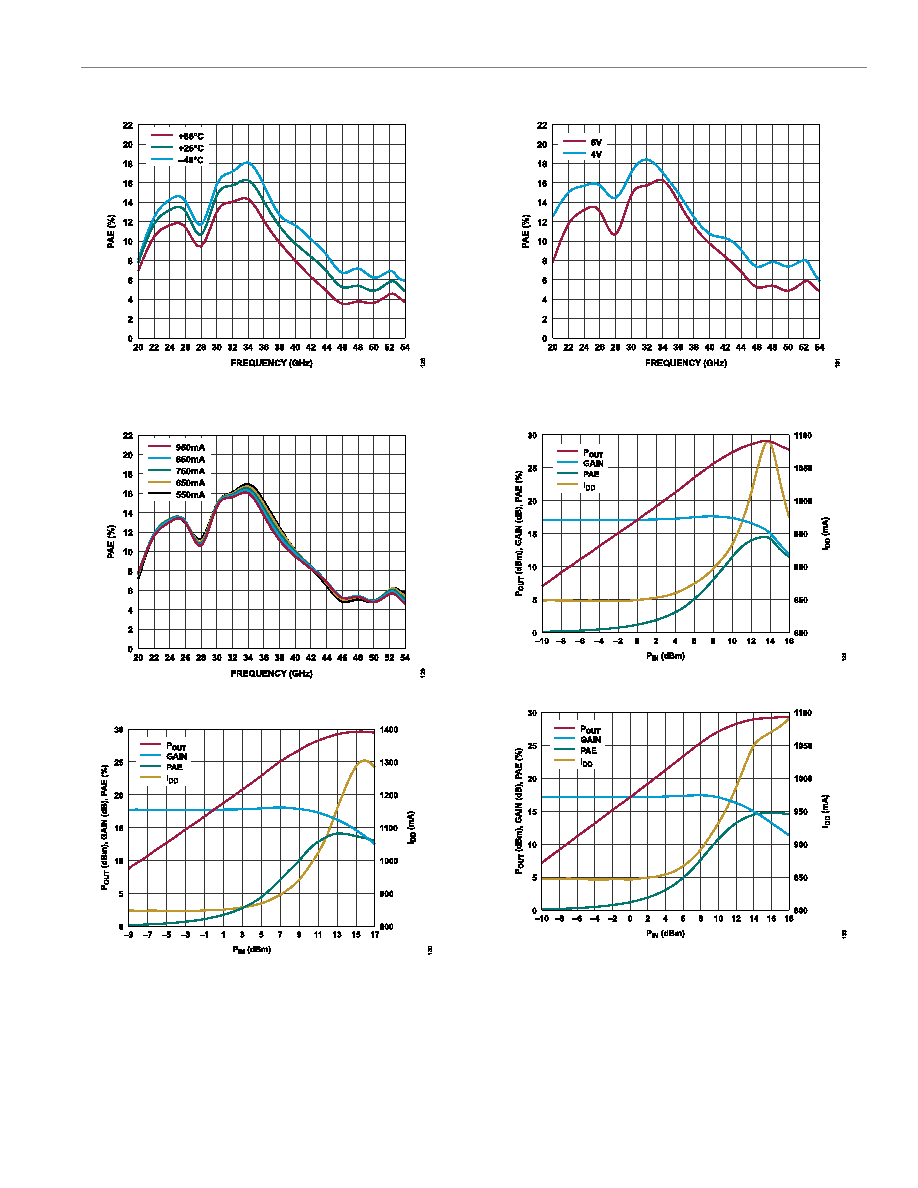

Figure 28. Power-Added Efficiency (PAE) vs. Frequency for Various

Temperatures, VDD = 5 V, IDQ = 850 mA, PAE at PSAT

Figure 29. PAE vs. Frequency for Various IDQ Values, VDD = 5 V, PAE at PSAT

Figure 30. POUT, Gain, PAE, and Drain Current with RF Applied (IDD) vs. PIN,

26 GHz, VDD = 5 V, IDQ = 850 mA

Figure 31. PAE vs. Frequency for Various VDD Values, IDQ = 850 mA,

PAE at PSAT

Figure 32. POUT, Gain, PAE, and IDD vs. PIN, 22 GHz, VDD = 5 V, IDQ = 850 mA

Figure 33. POUT, Gain, PAE, and IDD vs. PIN, 30 GHz, VDD = 5 V, IDQ = 850 mA
