ADPA7009-2ACEZ-R7 Datasheet(PDF) 16 Page - Analog Devices

Part # ADPA7009-2ACEZ-R7
Description  20 GHz to 54 GHz, GaAs, pHEMT, MMIC, 29 dBm (0.5 W) Power Amplifier
PDF  24 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  AD [Analog Devices]
Direct Link  http://www.analog.com
Logo AD - Analog Devices

ADPA7009-2ACEZ-R7 Datasheet(HTML) 16 Page - Analog Devices

Back Button ADPA7009-2ACEZ-R7 Datasheet HTML 12Page - Analog Devices ADPA7009-2ACEZ-R7 Datasheet HTML 13Page - Analog Devices ADPA7009-2ACEZ-R7 Datasheet HTML 14Page - Analog Devices ADPA7009-2ACEZ-R7 Datasheet HTML 15Page - Analog Devices ADPA7009-2ACEZ-R7 Datasheet HTML 16Page - Analog Devices ADPA7009-2ACEZ-R7 Datasheet HTML 17Page - Analog Devices ADPA7009-2ACEZ-R7 Datasheet HTML 18Page - Analog Devices ADPA7009-2ACEZ-R7 Datasheet HTML 19Page - Analog Devices ADPA7009-2ACEZ-R7 Datasheet HTML 20Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 16 / 24 page
background image
Data Sheet
ADPA7009-2
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. 0 | 16 of 24

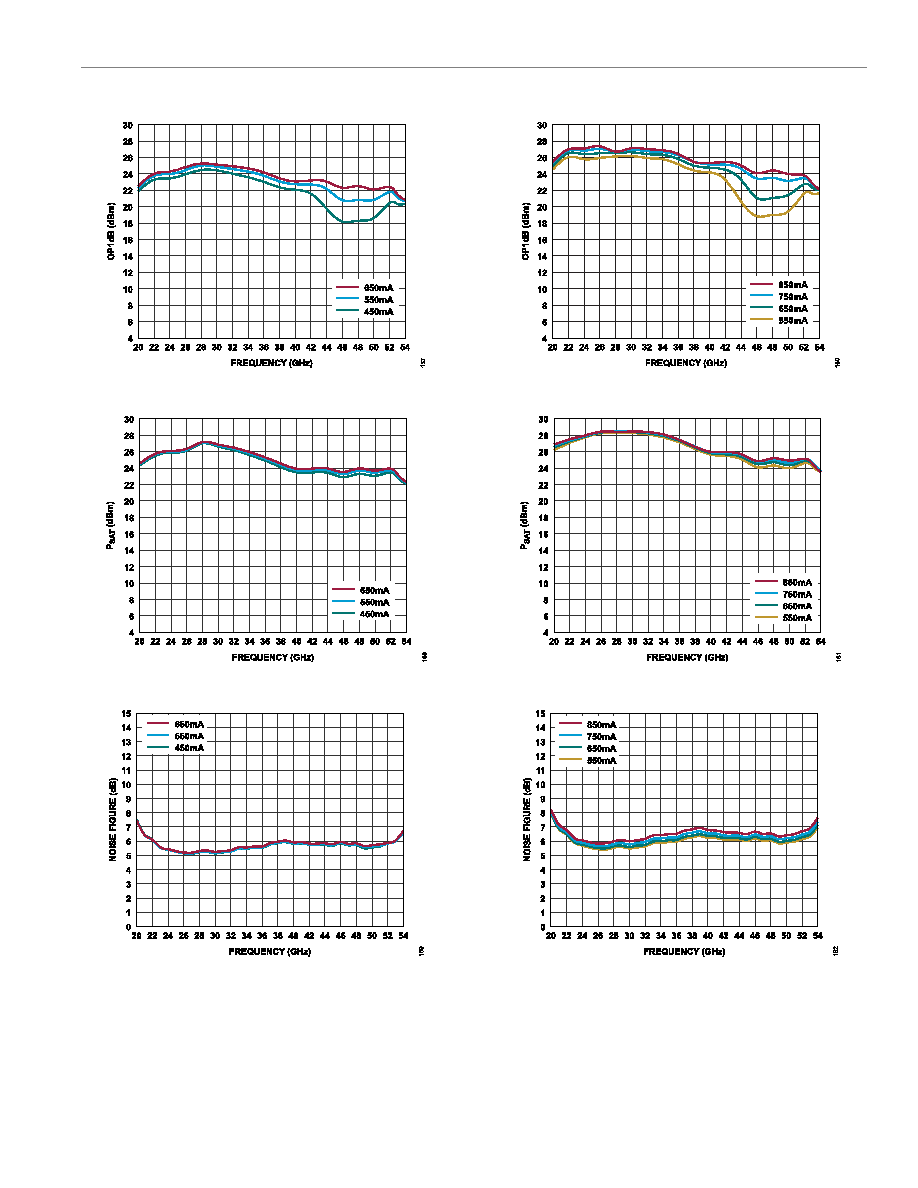

Figure 57. OP1dB vs. Frequency for Various IDQ Values, VDD = 3 V
Figure 58. PSAT vs. Frequency for Various IDQ Values, VDD = 3 V
Figure 59. Noise Figure vs. Frequency for Various IDQ Values, VDD = 3 V
Figure 60. OP1dB vs. Frequency for Various IDQ Values, VDD = 4 V
Figure 61. PSAT vs. Frequency for Various IDQ Values, VDD = 4 V
Figure 62. Noise Figure vs. Frequency for Various IDQ Values, VDD = 4 V
