500mV to 5.5V Input nanoPower
Boost Converter with Short-Circuit
Protection
and True Shutdown
MAX18000
www.analog.com
Analog Devices | 3
Recommended Operating Conditions
PARAMETER
SYMBOL
TYPICAL RANGE
Input Voltage Range
VIN
0.5V to 5.5V
Switching Current Limit
IPEAK_LX
0A to 3.6A
Operating Junction Temperature
TJ
-40°C to +125°C

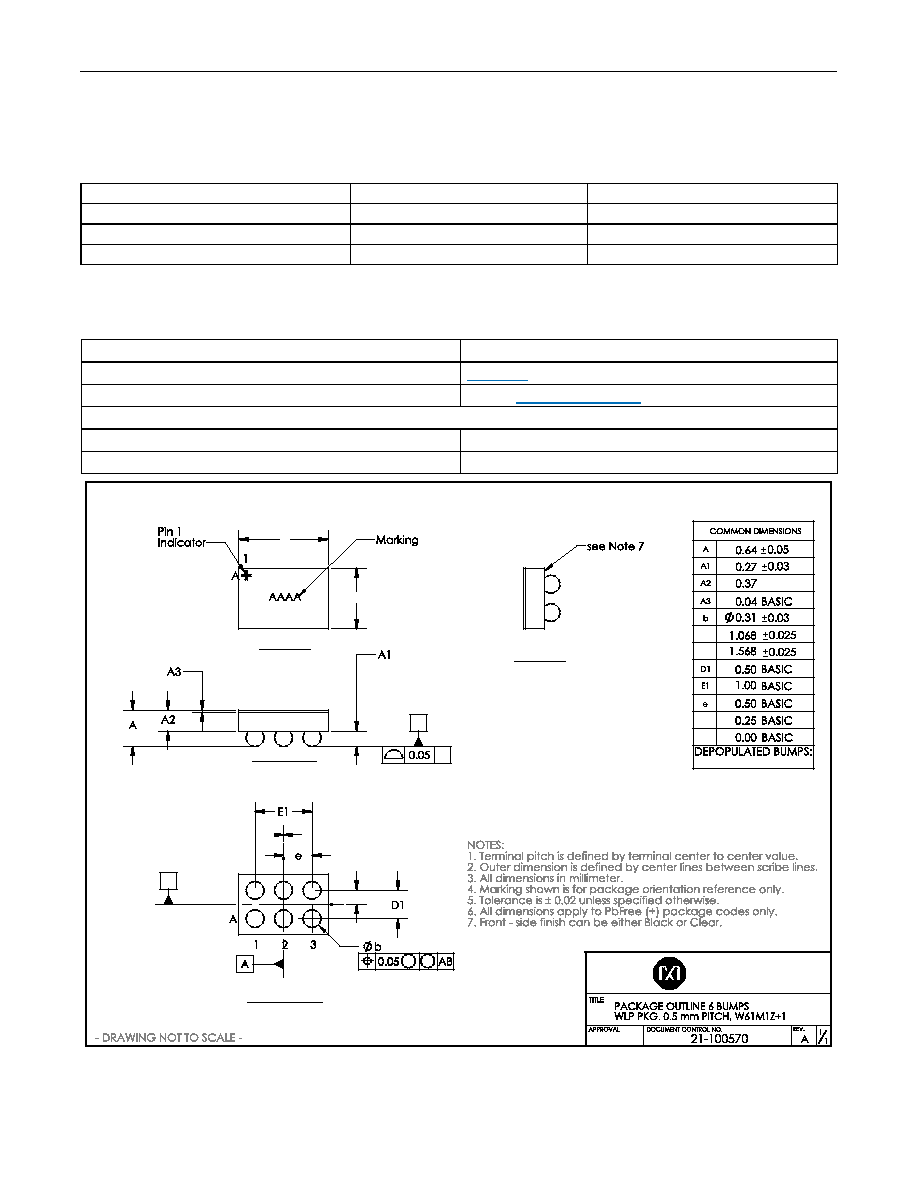

Package Information
WLP
Package Code
W61M1Z+1
Outline Number
21-100570
Land Pattern Number
Refer to Application Note 1891
Thermal Resistance, Four-Layer Board:
Junction to Ambient (θJA)
81.03°C/W
Junction to Case Thermal Resistance (θJC)
NA
