STFPC311
6 Commands
19/39
Upon power application, the following modes are selected:
●
Display Mode Setting: the 16-digit, 12-segment mode is selected (default: display off and
key-scan on).
●
Remote Control Protocol Setting: RC-5.
●
Watchdog Timer Setting: Turned on with 10s. After the first command is processed by
STFPC311, the watchdog timer is turned off until it is turned on by the host.
●
Watchdog action: Issue Standby.
6.2
Data setting command
This command sets the
data WRITE and READ modes see Figure 15.

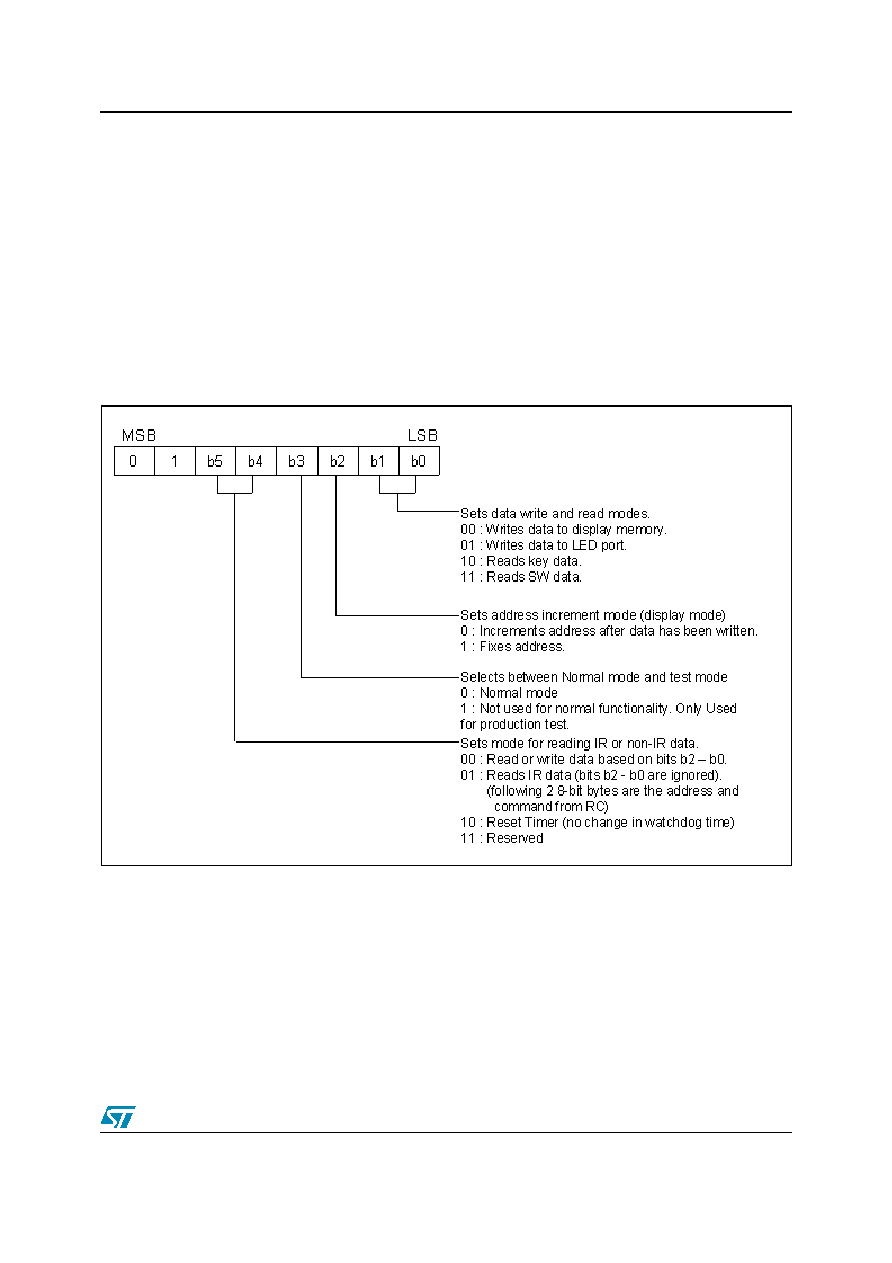

Figure 15. STFPC311 Data setting command order
