Data Sheet
ADL8141
THEORY OF OPERATION
analog.com
Rev. 0 | 18 of 22
The ADL8141 is a GaAs, MMIC, pHEMT, low noise wideband am-
plifier with an integrated bias inductor and AC-coupling capacitors.
A simplified schematic is shown in Figure 71.
To set the drain bias current, connect an external resistor between
the RBIAS and VDD pins.
The ADL8141 has AC-coupled, single-ended input and output ports
with impedances that are nominally equal to 50 Ω over the 14 GHz
to 24 GHz frequency range. No external matching components are
required. While the RF output path is AC-coupled, there is a DC
path to ground on the RFOUT side of the AC-coupling capacitor.

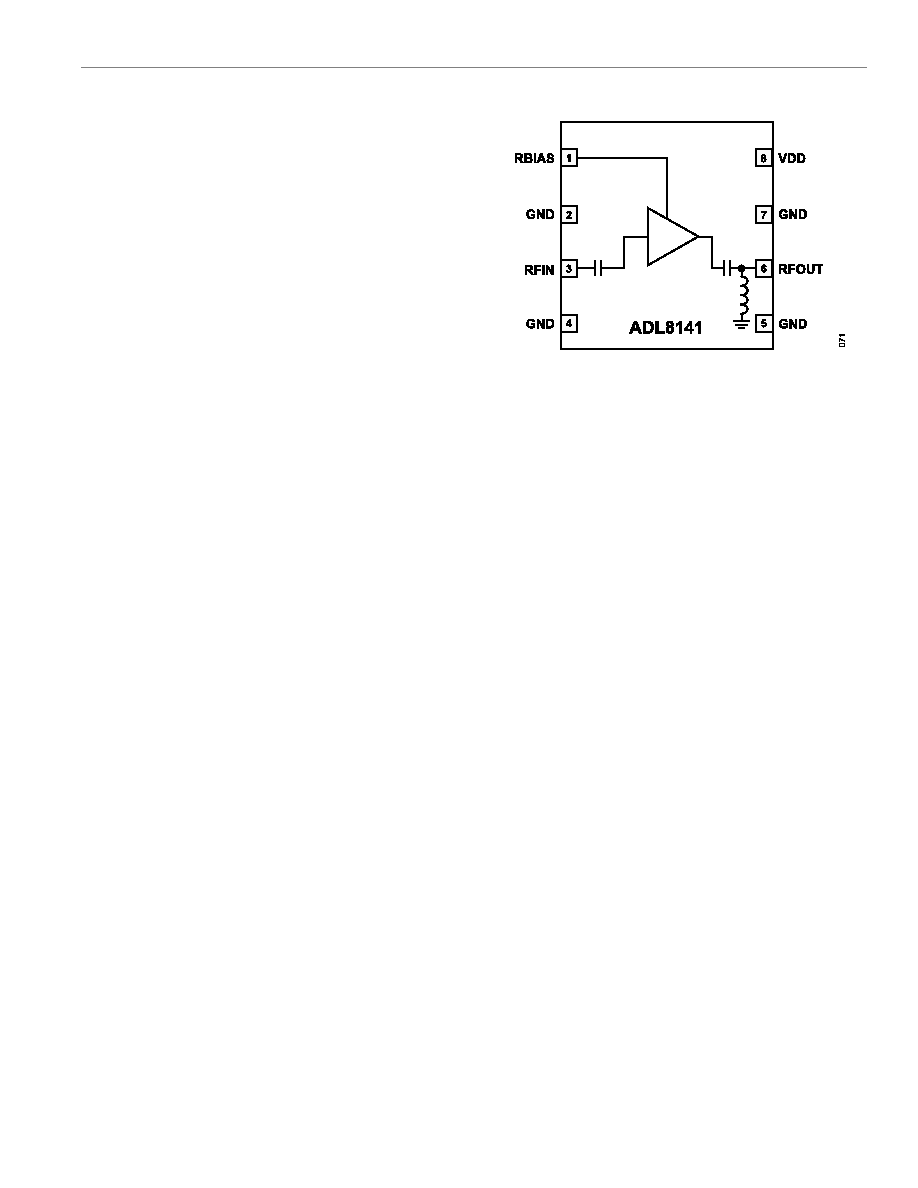

Figure 71. Simplified Schematic
