Preliminary Technical Data

AD8224

20µs/DIV

5µs TO 0.01%

6µs TO 0.001%

5V/DIV

0.002%/DIV

200µs/DIV

58μs TO 0.01%

74μs TO 0.001%

0.002%/DIV

5V/DIV

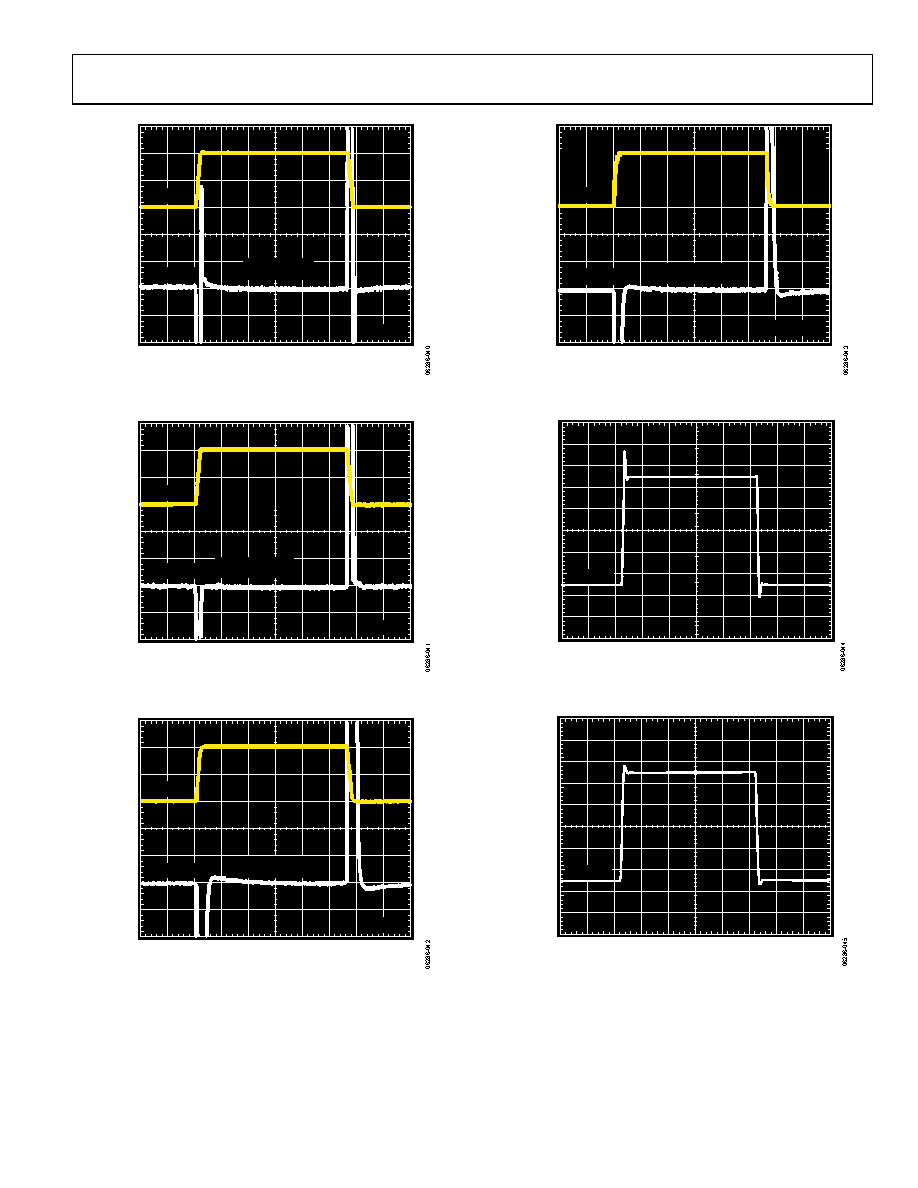

Figure 40. Large Signal Pulse Response and Settle Time, G = 1,

Figure 43. Large Signal Pulse Response and Settle Time, G = 1000,

RL = 10 kΩ, VS = ±15 V, VREF = 0 V

20µs/DIV

5V/DIV

4.3μs TO 0.01%

4.6μs TO 0.001%

0.002%/DIV

20mV/DIV

4µs/DIV

Figure 41. Large Signal Pulse Response and Settle Time, G = 10,

Figure 44. Small Signal Pulse Response, G = 1, RL = 2 kΩ, CL = 100 pF,

RL = 10 kΩ, VS = ±15 V, VREF = 0 V

VS = ±15 V, VREF = 0 V

20µs/DIV

8.1μs TO 0.01%

9.6μs TO 0.001%

0.002%/DIV

5V/DIV

20mV/DIV

4µs/DIV

Figure 42. Large Signal Pulse Response and Settle Time, G = 100,

Figure 45. Small Signal Pulse Response, G = 10, RL = 2 kΩ, CL = 100 pF,

RL = 10 kΩ, VS = ±15 V, VREF = 0 V

VS = ±15 V, VREF = 0 V.

Rev. PrB | Page 17 of 27
