Data Sheet
ADL8111
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. A | 13 of 24

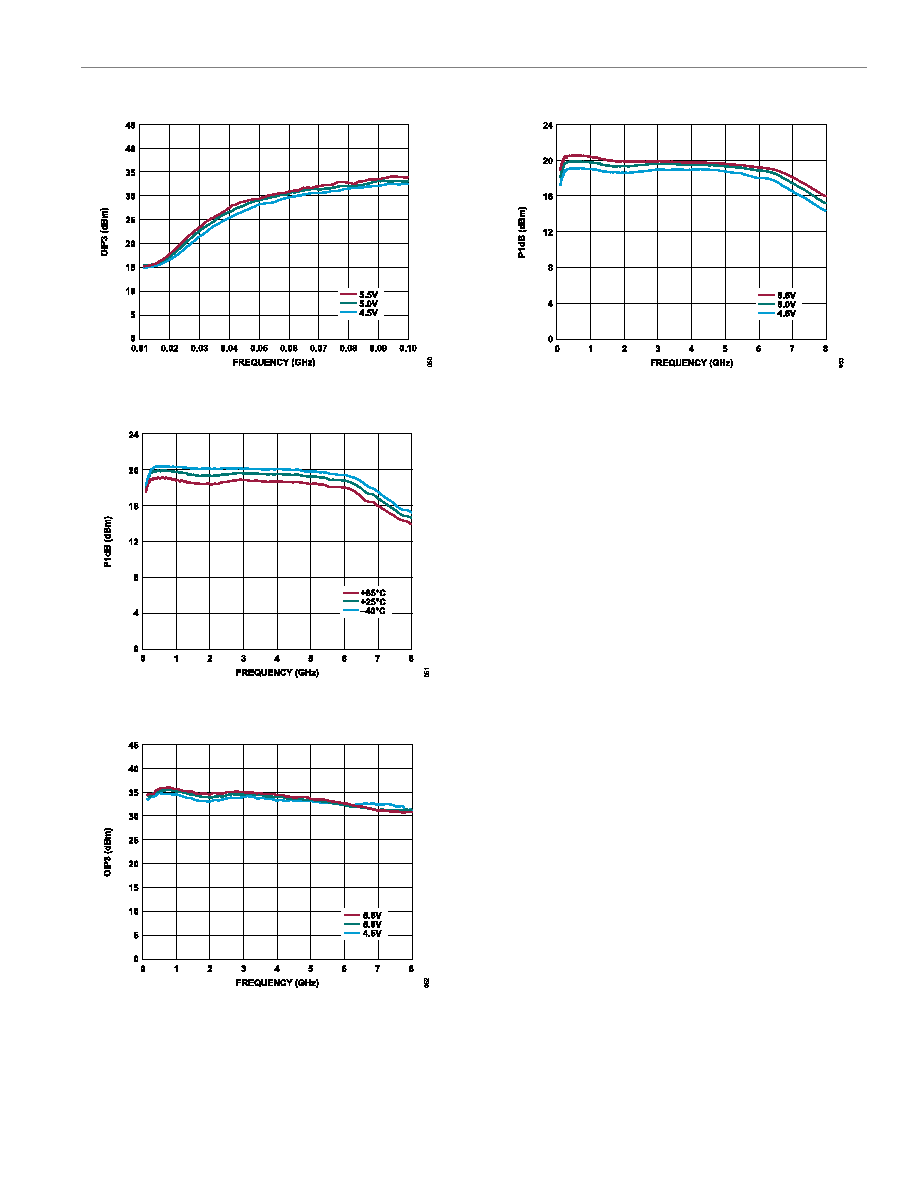

Figure 45. OIP3 vs. Frequency Over VDD (10 MHz to 100 MHz), State =
Internal Amplifier (Refer to Figure 77 for the Test Circuit)
Figure 46. P1dB vs. Frequency Over Temperature (100 MHz to 8 GHz), State =
Internal Amplifier (Refer to Figure 77 for the Test Circuit)
Figure 47. OIP3 vs. Frequency Over VDD (100 MHz to 8 GHz), State = Internal
Amplifier (Refer to Figure 77 for the Test Circuit)
Figure 48. P1dB vs. Frequency Over VDD (100 MHz to 8 GHz), State = Internal
Amplifier (Refer to Figure 77 for the Test Circuit)
