TDA2030A
Device overview
Doc ID 1459 Rev 2
7/23

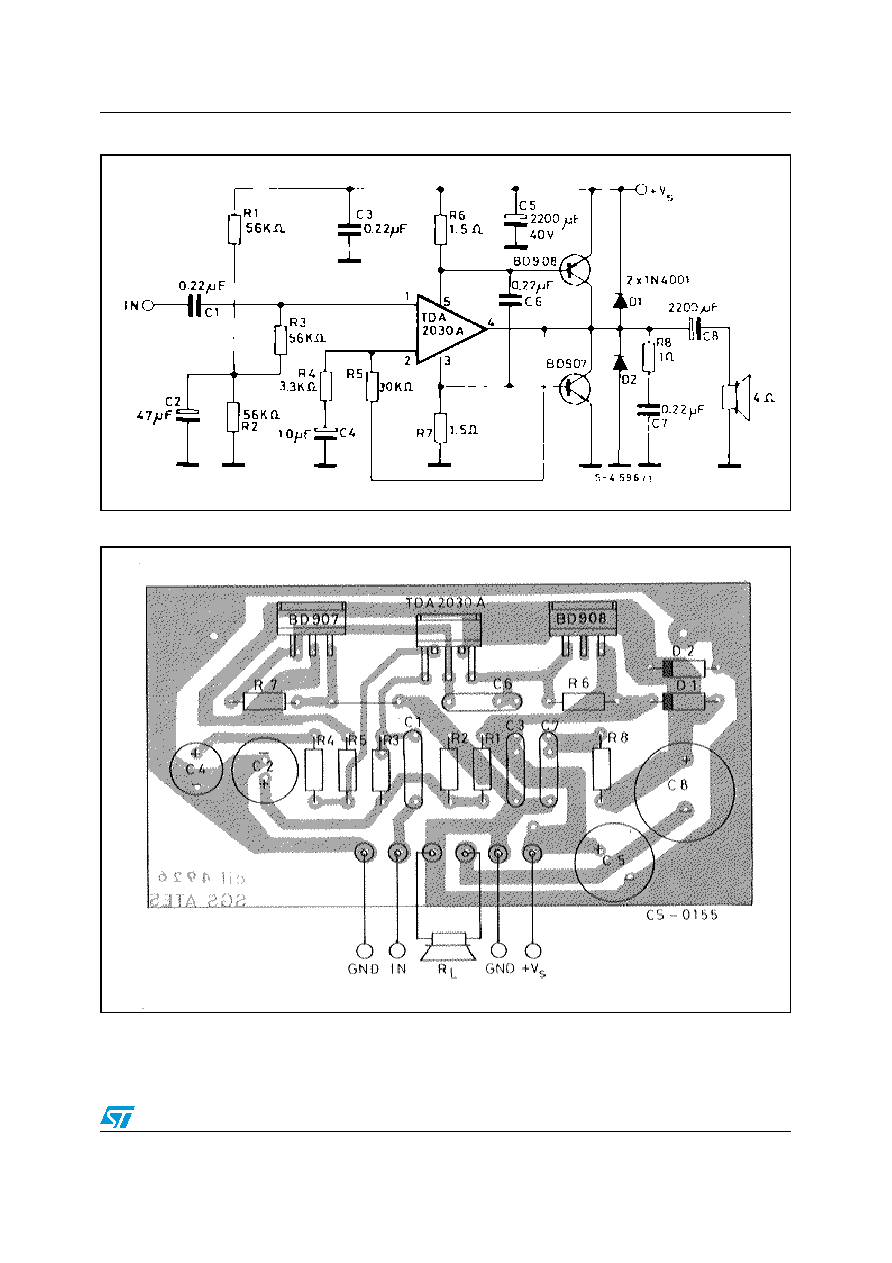

Figure 15.
Single-supply high-power amplifier (TDA2030A + BD907/BD908)
Figure 16.
PC board and component layout for the single-supply high-power amplifier
Obsolete
Product(s)
- Obsolete
Product(s)
