TDA2030A
Device overview
Doc ID 1459 Rev 2
9/23

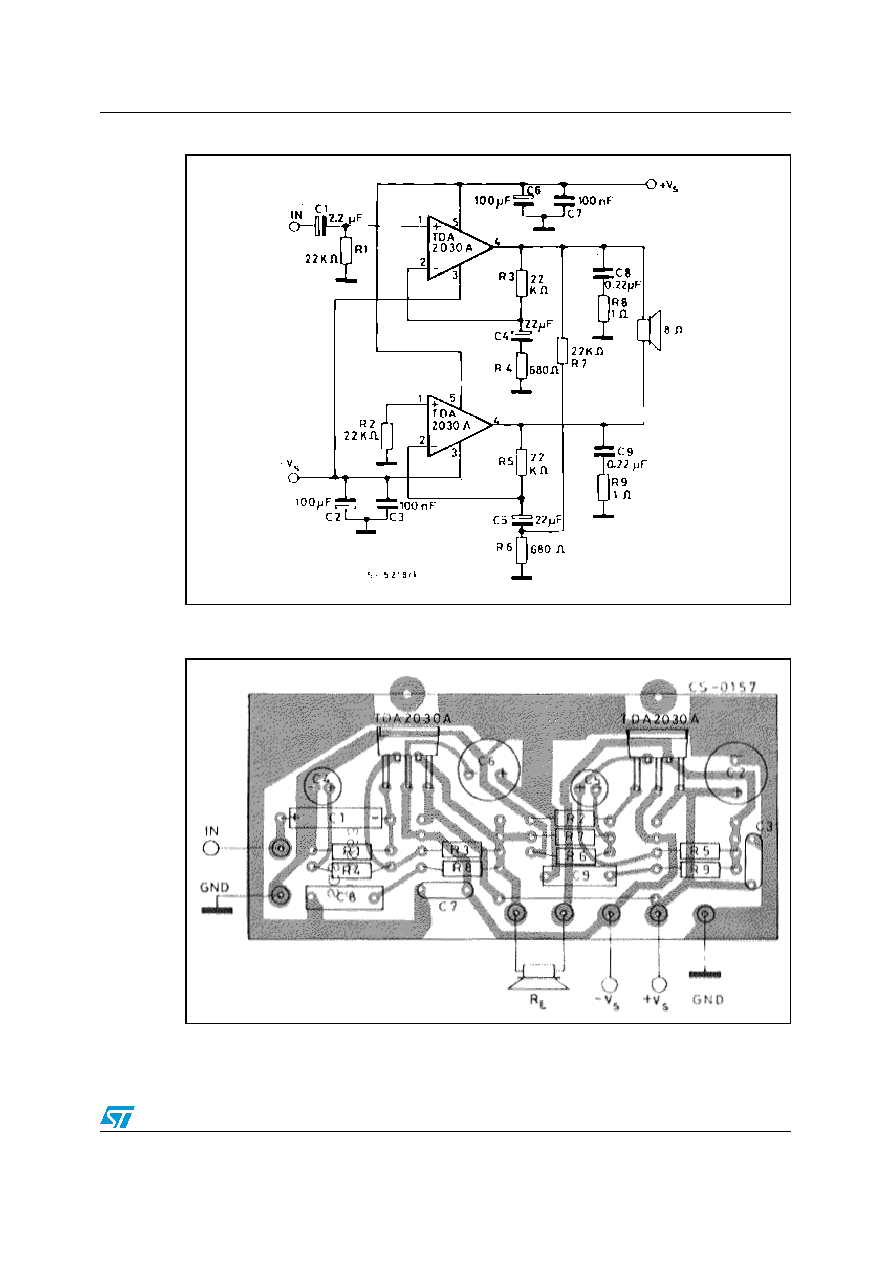

Figure 19.
Bridge amplifier with split power supply (PO = 34 W, VS = ± 16 V)
Figure 20.
PC board and component layout for the bridge amplifier with split power
supply
Obsolete
Product(s)
- Obsolete
Product(s)
