74VHC03 Datasheet(PDF) 1 Page - STMicroelectronics |
|
||||||||||||||||||||||||||||||
74VHC03 Datasheet(HTML) 1 Page - STMicroelectronics |
|
|

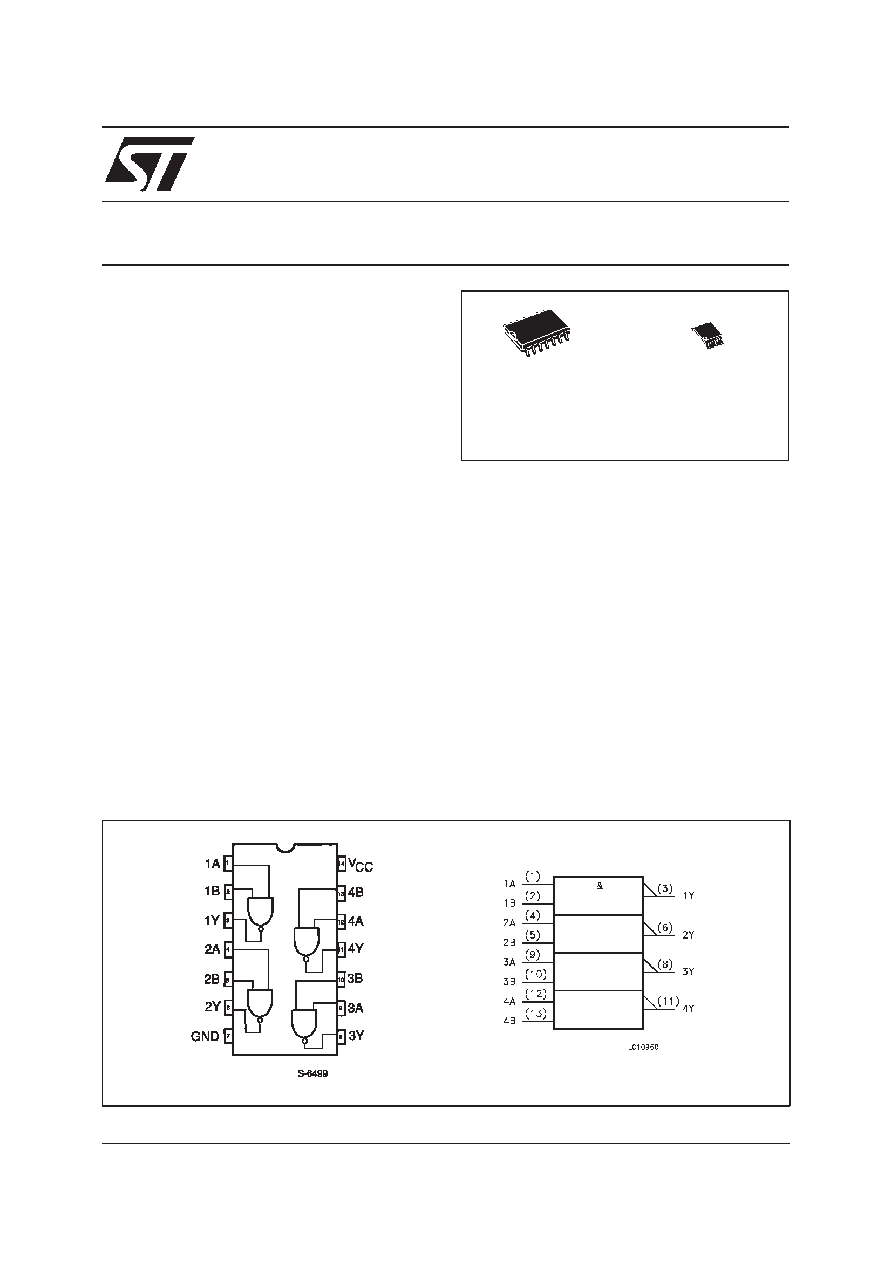

1 / 7 page  74VHC03 QUAD 2-INPUT OPEN DRAIN NAND GATE PRELIMINARY DATA June 1999 s HIGH SPEED: tPD = 3.7 ns (TYP.) at VCC =5V s LOW POWER DISSIPATION: ICC =2 µA (MAX.) at TA =25 oC s HIGH NOISE IMMUNITY: VNIH =VNIL =28% VCC (MIN.) s POWER DOWN PROTECTION ON INPUTS s OPERATING VOLTAGE RANGE: VCC (OPR) = 2V to 5.5V s PIN AND FUNCTION COMPATIBLE WITH 74 SERIES 03 s IMPROVED LATCH-UP IMMUNITY s LOW NOISE: VOLP = 0.8V (Max.) DESCRIPTION The 74VHC03 is an advanced high-speed CMOS QUAD 2-INPUT OPEN DRAIN NAND GATE fabricated with sub-micron silicon gate and double-layer metal wiring C 2MOS technology. The internal circuit is composed of 3 stages including buffer output, which provides high noise immunity and stable output. This device can, with an external pull-up resistor, be used in wired AND configuration. This device can also be used as a led driver and in any other application requiring a current sink. Power down protection is provided on all inputs and 0 to 7V can be accepted on inputs with no regard to the supply voltage. This device can be used to interface 5V to 3V. All inputs and outputs are equipped with protection circuits against static discharge, giving them 2kV ESD immunity and transient excess voltage. PIN CONNECTION AND IEC LOGIC SYMBOLS ORDER CODES : 74VHC03M 74VHC03T M (Micro Package) T (TSSOP Package) ® 1/7 |
