PIC16(L)F1507

DS40001586D-page 148

 2011-2015 Microchip Technology Inc.

19.0

PULSE-WIDTH MODULATION

(PWM) MODULE

The PWM module generates a Pulse-Width Modulated

signal determined by the duty cycle, period, and reso-

lution that are configured by the following registers:

•PR2

•T2CON

• PWMxDCH

• PWMxDCL

•PWMxCON

Figure 19-1 shows a simplified block diagram of PWM

operation.

For a step-by-step procedure on how to set up this

module for PWM operation, refer to Section

19.1.9 “Setup for PWM Operation using PWMx

Pins”

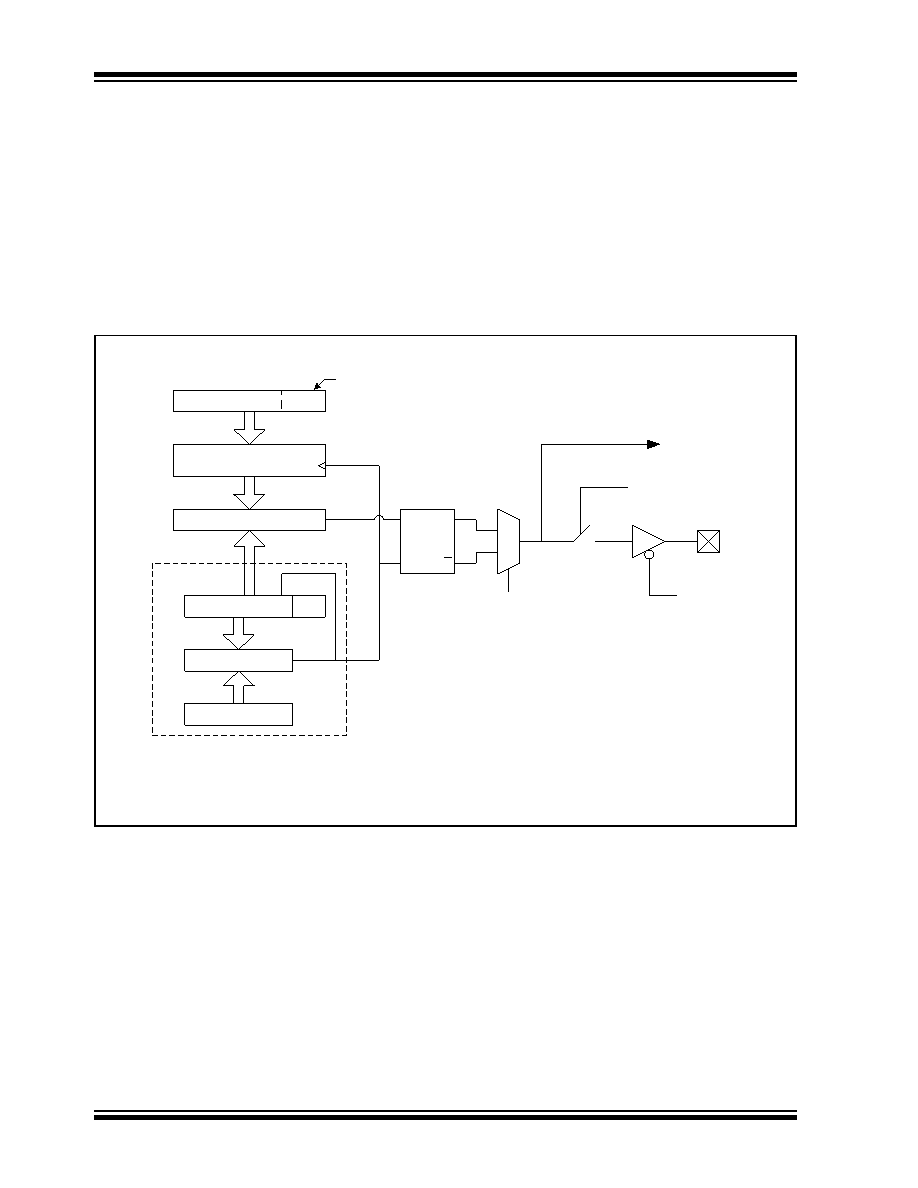

FIGURE 19-1:

SIMPLIFIED PWM BLOCK DIAGRAM

Rev. 10-000022A

8/5/2013

8-bit timer is concatenated with two bits generated by Fosc or two bits of the internal prescaler to

create 10-bit time-base.

Note 1:

PWMxDCH

Duty cycle registers

PWMxDCL<7:6>

10-bit Latch

(Not visible to user)

Comparator

PR2

(1)

TMR2

TMR2 Module

PWMxPOL

PWMx

PWMx_out

To Peripherals

TRIS Control

PWMxOE

T2_match
