WILCS02IC and WILCS02 Family

Device Overview

Data Sheet

DS70005557C - 21

Table 2-3. PCB Antenna Specification for WILCS02 Module

Parameter

Specification

Operating frequency

2400-2485 MHz

Peak gain

1.18 dBi at 2445 MHz

Efficiency (average)

68.83%1

Note:

1. The size of the WILCS02 Wi-Fi® Link Controller SD Board is 85 mm x 40 mm. The antenna efficiency will improve with

larger ground plane baseboards. If the best case routing guidelines are followed on a larger ground plane application

board, the efficiency will be better.

PCB Antenna Radiation Pattern

The following figure illustrates the module orientation in the measurement system for the PCB

antenna radiation pattern.

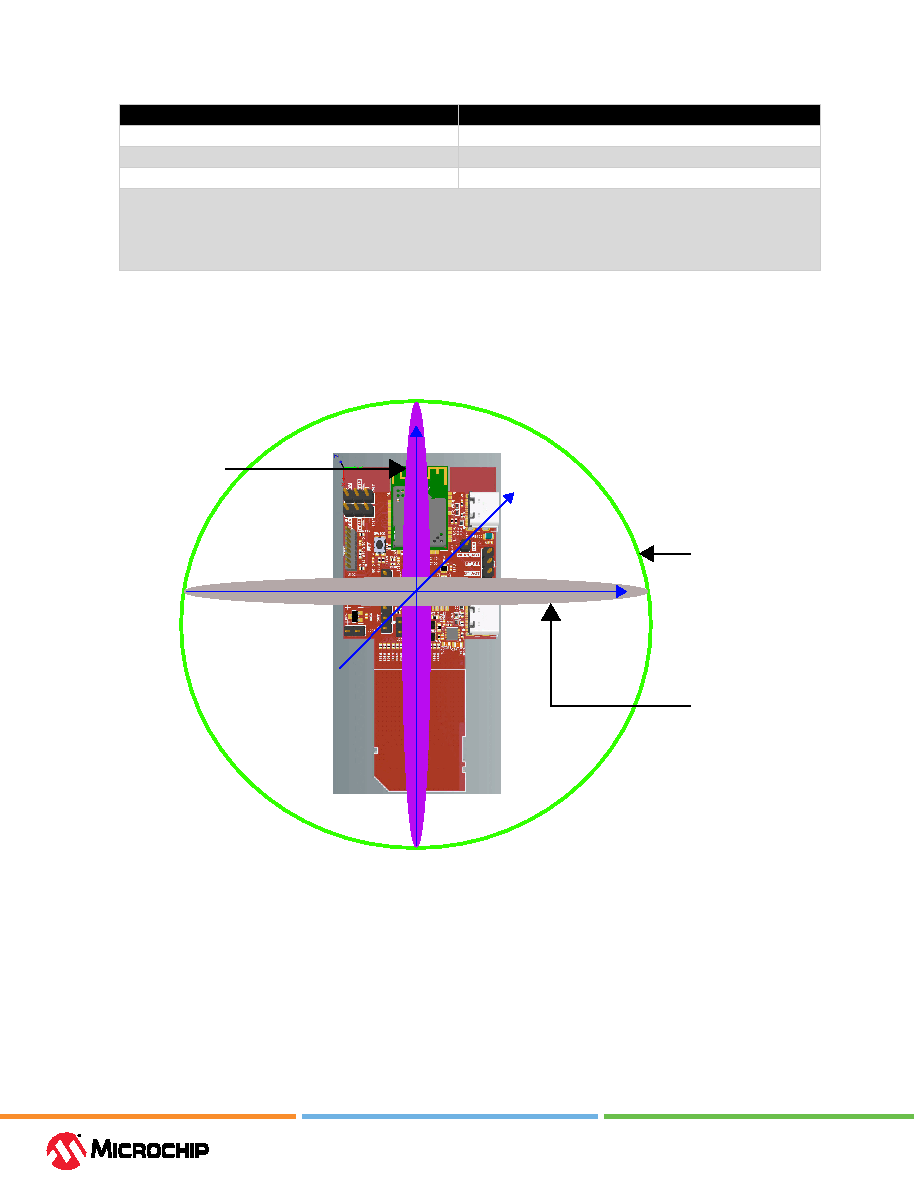

Figure 2-13. Module Orientation for Radiation Pattern Measurement

Z+

Y+

X+

Vertical Cut at

Phi = +90°

Vertical Cut at

Phi = 0°

Horizontal Cut at

Theta = 90°

3D Antenna Radiation Pattern

The following figures illustrate the 3D cross section of the antenna radiation pattern.
