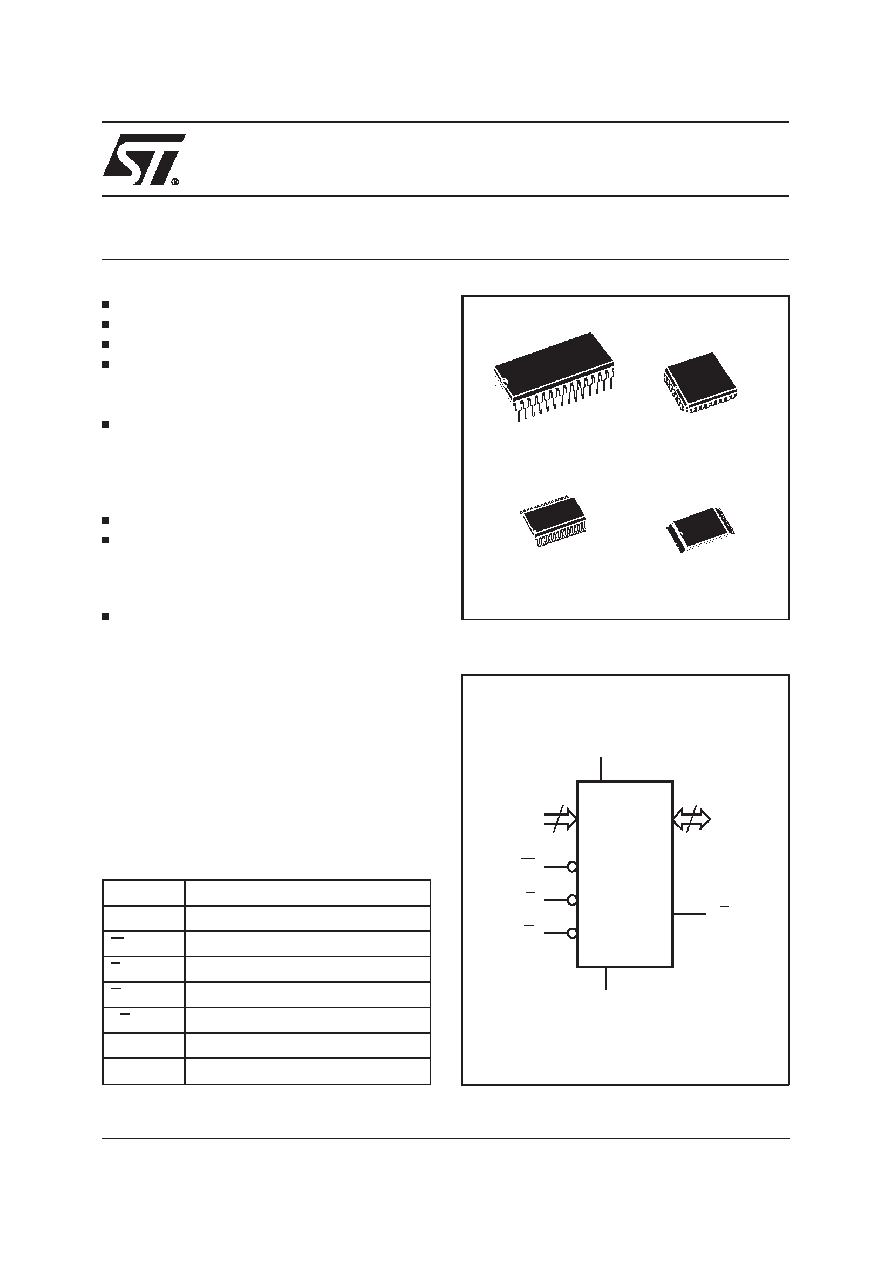

M28C64C
M28C64X
64 Kbit (8Kb x8) Parallel EEPROM
February 1999
1/15
AI00746B
13
A0-A12
W
DQ0-DQ7
VCC
M28C64C
G
E
VSS
8
RB
Figure 1. Logic Diagram
28
1
PDIP28 (P)
PLCC32 (K)
A0 - A12
Address Input
DQ0 - DQ7
Data Input / Output
W
Write Enable
E
Chip Enable
G
Output Enable
RB
Ready / Busy
VCC
Supply Voltage
VSS
Ground
Table 1. Signal Names
FAST ACCESS TIME: 150ns
SINGLE 5V
± 10% SUPPLY VOLTAGE
LOW POWER CONSUMPTION
FAST WRITE CYCLE
– 32 Bytes Page Write Operation
– Byte or Page Write Cycle: 5ms
ENHANCED END OF WRITE DETECTION
– Ready/Busy Open Drain Output
(for M28C64C product only)
– Data Polling
– Toggle Bit
PAGE LOAD TIMER STATUS BIT
HIGH RELIABILITY SINGLE POLYSILICON,
CMOS TECHNOLOGY
– Endurance >100,000 Erase/Write Cycles
– Data Retention >40 Years
JEDEC APPROVED BYTEWIDE PIN OUT
DESCRIPTION
The M28C64C is an 8 Kbit x8 low power Parallel
EEPROM fabricated with STMicroelectronics pro-
prietary single polysilicon CMOS technology. The
device offers fast access time with low power dis-
sipation and requires a 5V power supply.
The circuit has been designed to offer a flexible
microcontroller interface featuring both hardware
and software handshakingmode with Ready/Busy,
Data Polling and Toggle Bit. The M28C64C sup-
ports 32 byte page write operation.
TSOP28 (N)
8 x13.4mm
28
1
SO28 (MS)
300 mils
