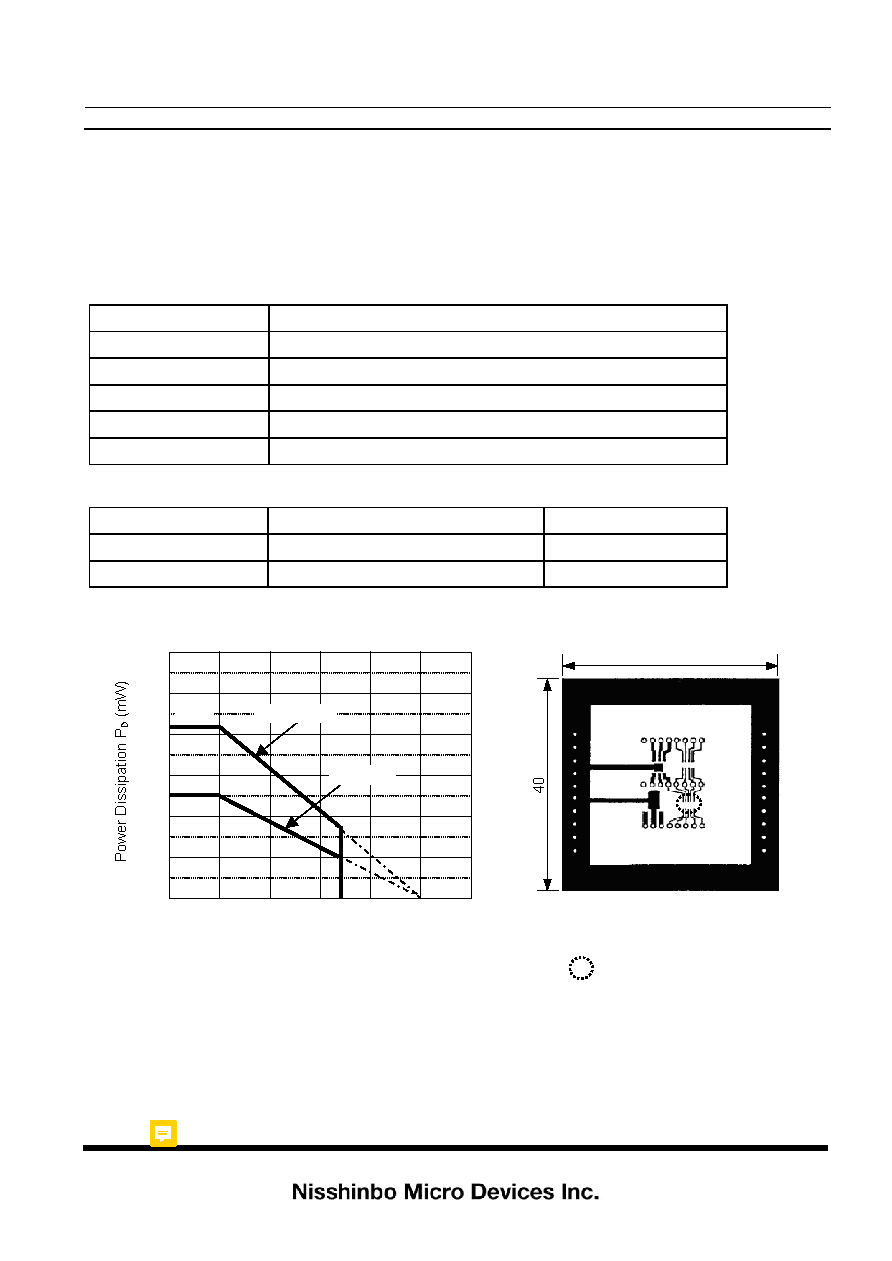

background image
R3111x
25
 R3111E (TO-92) is the discontinued product as of April, 2017.
600
500
400
300
200
100
0
0
25
50
75
100
125
150
Ambient Temperature (
C)
Power Dissipation
85
Free Air
On Board
250
420
 Power Dissipation (SOT-23-5)
Power Dissipation (PD) depends on conditions of mounting on board. This specification is based on the
measurement at the condition below:
(Power Dissipation (SOT-23-5) is substitution of SOT-23-6.)
Measurement Conditions
Standard Test Land Pattern
Environment
Mounting on Board (Wind velocity=0m/s)
Board Material
Glass cloth epoxy plastic (Double sided)
Board Dimensions
40mm
 40mm  1.6mm
Copper Ratio
Top side: Approx. 50%, Back side: Approx. 50%
Through-holes
 0.5mm  44pcs
Measurement Result
(Ta=25
C, Tjmax=125C)
Standard Land Pattern
Free Air
Power Dissipation
420mW
250mW
Thermal Resistance
ja = (125-25C)/0.42W = 238C/W
400
C/W
Measurement Board Pattern
IC Mount Area (Unit: mm)
40
