R3111x

 R3111E (TO-92) is the discontinued product as of April, 2017.

600

500

400

300

200

100

125

150

Ambient Temperature (

C)

SON1612-6 Power Dissipation

On Board

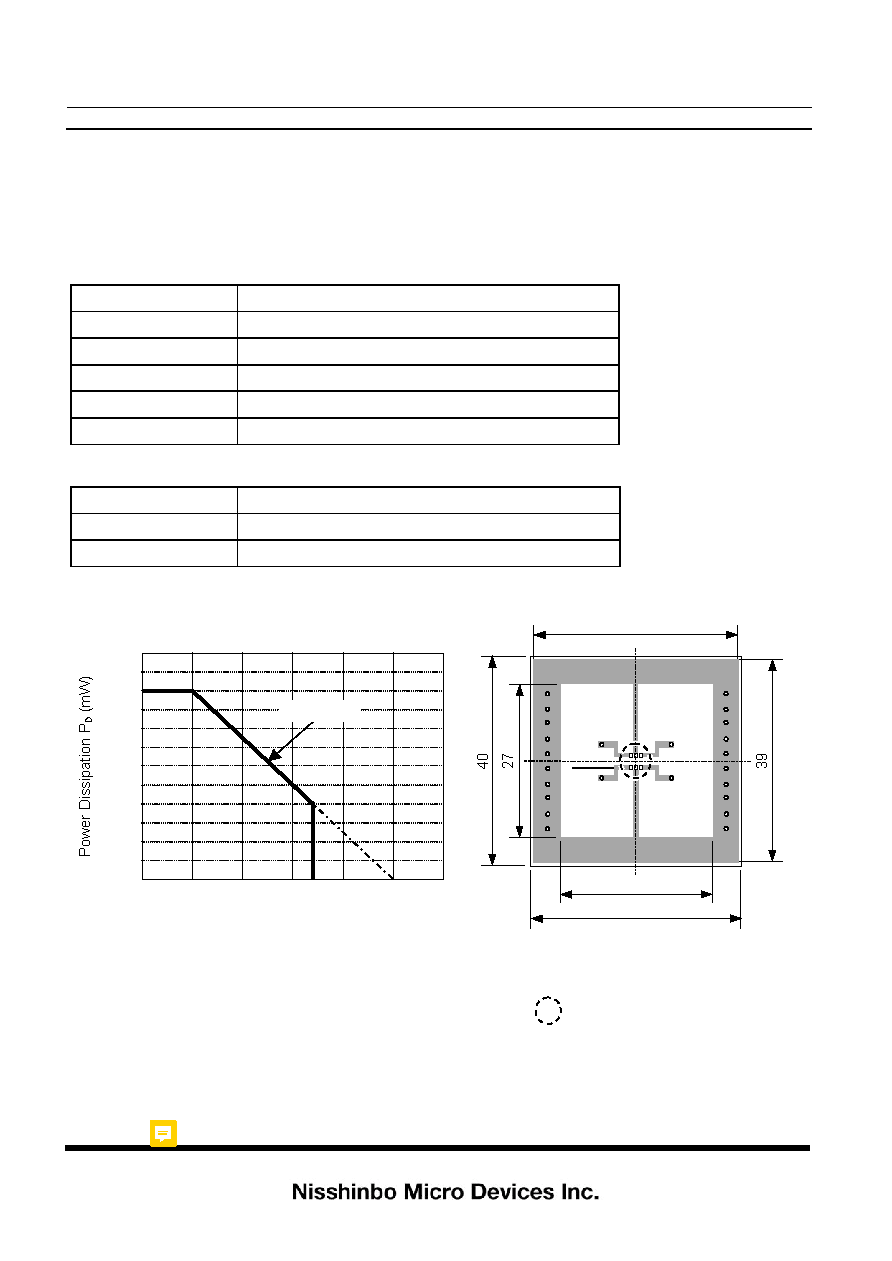

 Power Dissipation (SON1612-6)

Power Dissipation (PD) depends on conditions of mounting on board.

This specification is based on the measurement at the condition below:

Measurement Conditions

Standard Land Pattern

Environment

Mounting on Board (Wind velocity 0m/s)

Board Material

Glass cloth epoxy plastic (Double layers)

Board Dimensions

40mm

 40mm  1.6mm

Copper Ratio

Top side: Approx. 50%, Back side: Approx. 50%

Through - hole

 0.5mm  24pcs

Measurement Results

(Ta=25

C, Tjmax=125C)

Standard Land Pattern

Power Dissipation

500mW

Thermal Resistance

ja = (125-25C)/ 0.5W = 200C/W

Measurement Board Pattern

IC Mount Area Unit : mm
