MICRO SWITCH™ Miniature Sealed Basic Switches

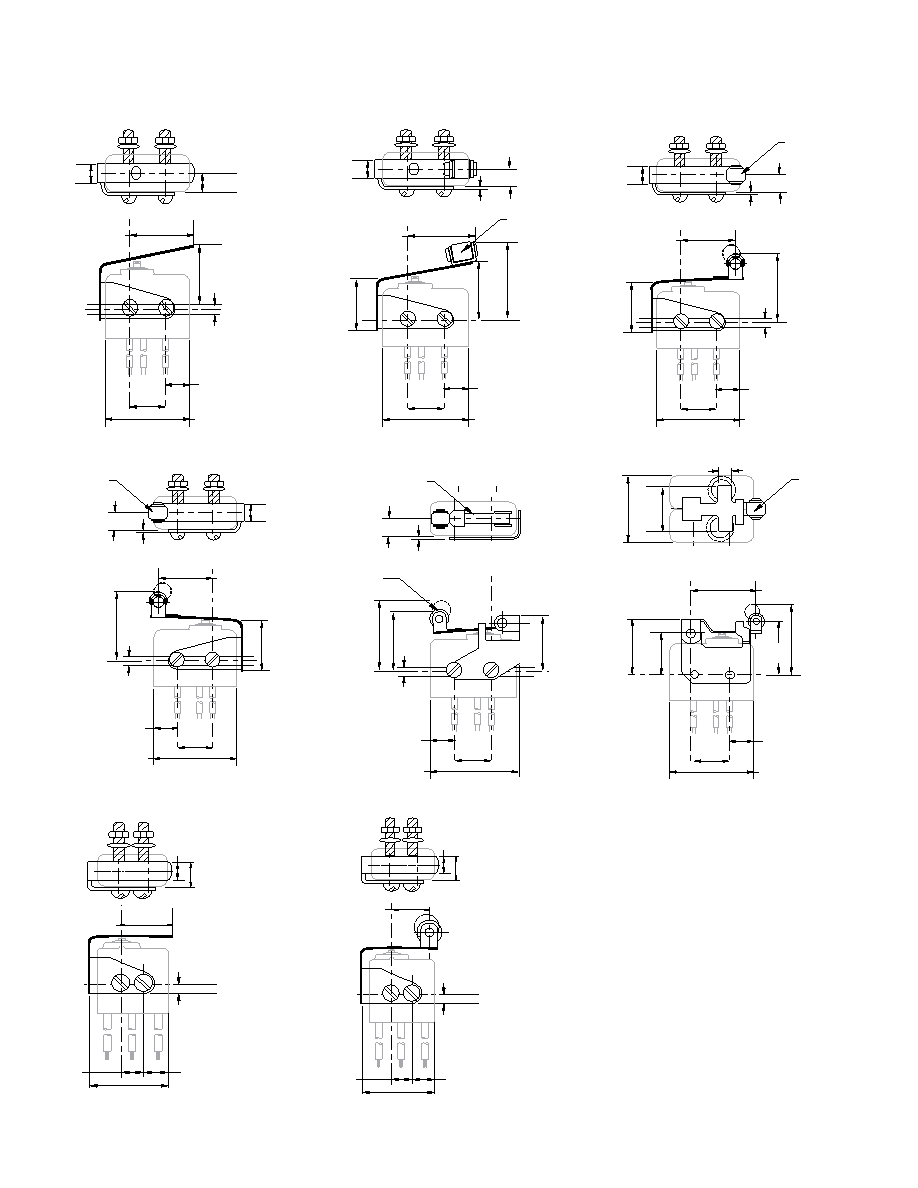

Figure 6. JE-4 Dimensions
Figure 7. JE-5 Dimensions
Figure 8. JE-17 Dimensions
Figure 5. JE-1 Dimensions
Figure 10. JE-22 Dimensions
Figure 11. JM-1 Dimensions
Figure 12. JM-5 Dimensions
Figure 9. JE-21 Dimensions
11,2 [0.44]
operate
point
2,3 [0.088]
6,4 [0.25]
4,3 [0.17]
23,9 [0.94]
9,5 [0.38]
4,8 [0.19]
16,8 [0.66]
16,3
[0.64]
6,4 [0.25]
4,3 [0.17]
23,9 [0.94]
9,5 [0.38]
4,8 [0.19]
16,8 [0.66]
0,8 [0.03]
12,7
[0.50]
20,1
[0.79]
Ø 4,8 [Ø 0.19]
x 3,0 [0.12] W
oil bronze roller
6,4 [0.25]
4,3 [0.17]
23,9 [0.94]
9,5 [0.38]
4,8 [0.19]
14,2 [0.56]
0,8 [0.03]
12,7
[0.50]
16,3
[0.64]
operating
position
2,3 [0.088]
Ø 4,8 [Ø 0.19]
x 3,0 [0.12] W
oil bronze roller
6,4 [0.25]
4,3 [0.17]
23,9 [0.94]
9,5 [0.38]
4,8 [0.19]
14,2 [0.56]
0,8 [0.03]
12,7
[0.50]
16,3
[0.64]
operating
position
2,3 [0.088]
Ø 4,8 [Ø 0.19]
x 3,0 [0.12] W
oil bronze roller
6,4 [0.25]
4,3 [0.17]
9,5 [0.38]
0,8 [0.03]
15,2
[0.60]
18,8
[0.74]
2,3 [0.088]
16,3
[0.64]
Ø 4,8 [Ø 0.19]
x 3,0 [0.12] W
oil bronze roller
Corrosion-resistant
steel actuator and
bracket (Type 302)
6,4 [0.25]
23,9 [0.94]
9,5 [0.38]
13,7
[0.64]
17,8 [0.70]
11,4
[0.45]
19,3
[0.76]
16.8
[0.66]
3,6 [0.14]
19,3
[0.76]
16,3
[0.64]
Ø 4,8 [Ø 0.19]
x 3,0 [0.12] W
oil bronze roller
2,3 [0.09]
4,78
[0.188]
5,44 [0.214]
4,1 [0.16]
11,4 [0.45]
5,8 [0.23]
17,0 [0.67]
2,3 [0.09]
4,78
[0.188]
5,44 [0.214]
4,1 [0.16]
9,7 [0.38]
5,8 [0.23]
17,0 [0.67]
