ST735S/ST735T
7/11

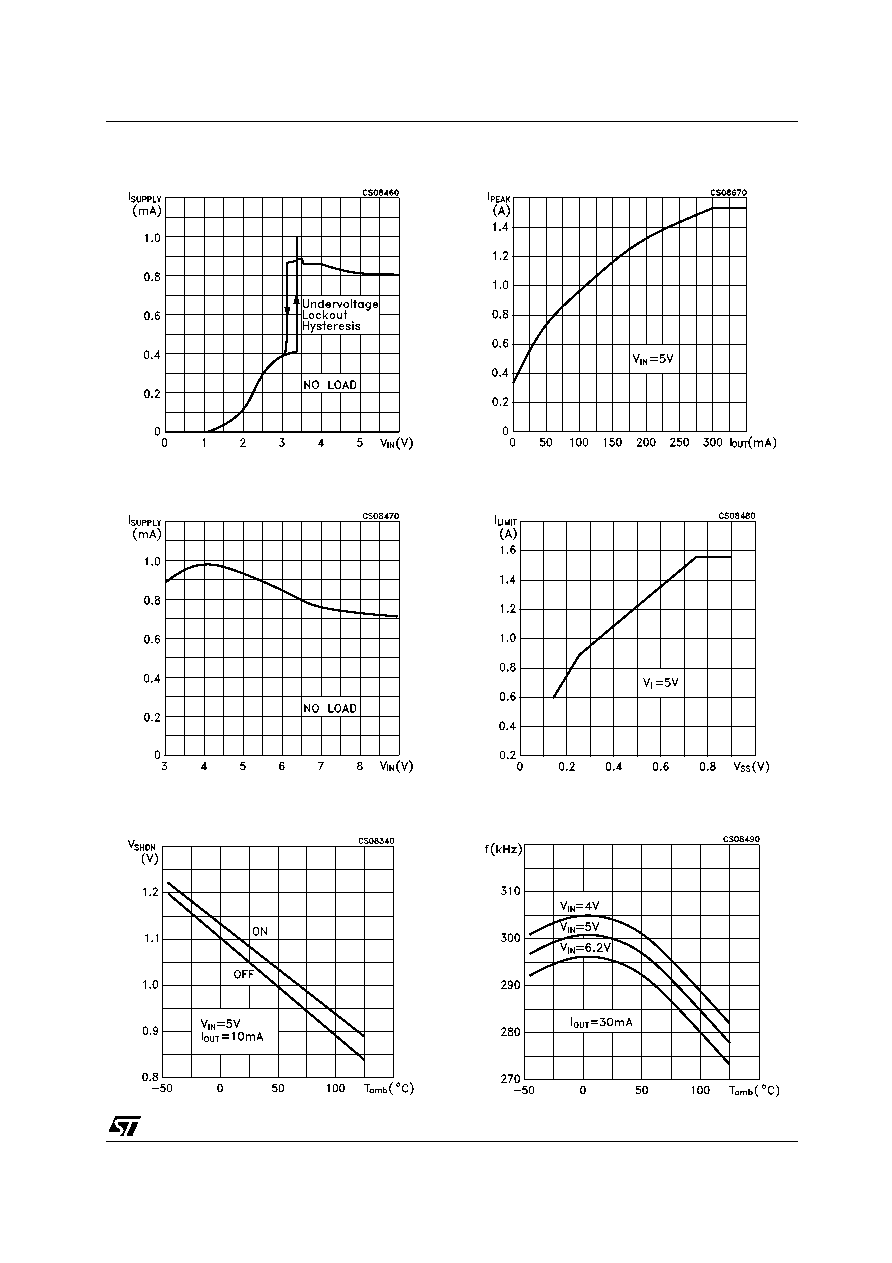

Figure 7 : Supply Current vs Input Voltage for
ST735S
Figure 8 : Supply Current vs Input Voltage for
ST734T
Figure 9 : Shutdown Threshold vs Temperature
Figure 10 : Peack Inductor vs Output Current
Figure 11 : Switch Current Limit vs Soft Start
Voltage
Figure 12 : Oscillator Frequency Vs Temperature
