ST735S/ST735T
6/11

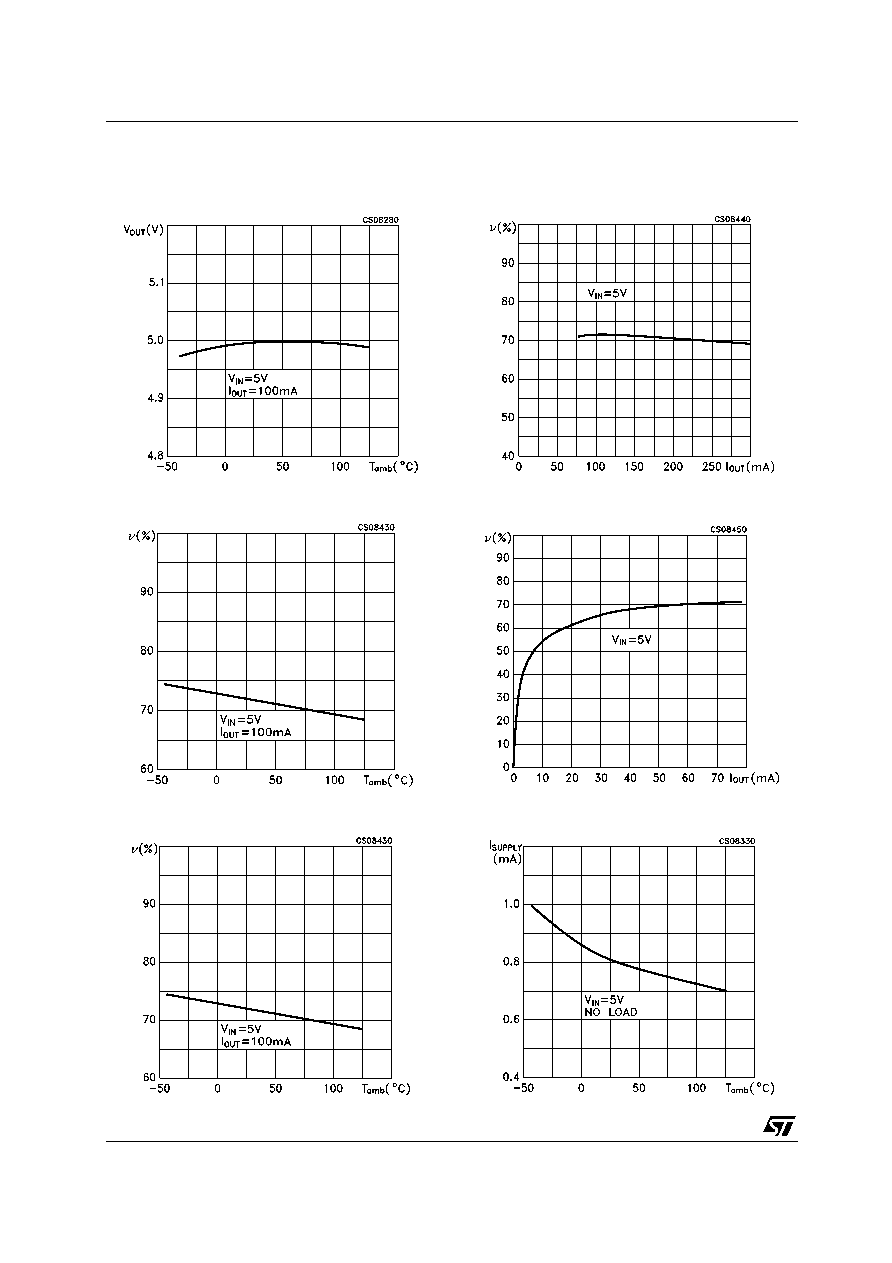

TYPICAL CHARACTERISTICS (Referred to typical application circuit, Tamb=25°C unless otherwise specified)
Figure 1 : Output Voltage vs Temperature
Figure 2 : Reference Voltage vs Temperature
Figure 3 : EfficencyvsTemperature
Figure 4 : Efficency vs Ouput Current
Figure 5 : Efficency vs Low Ouput Current
Figure 6 : Supply Current vs Temperature
