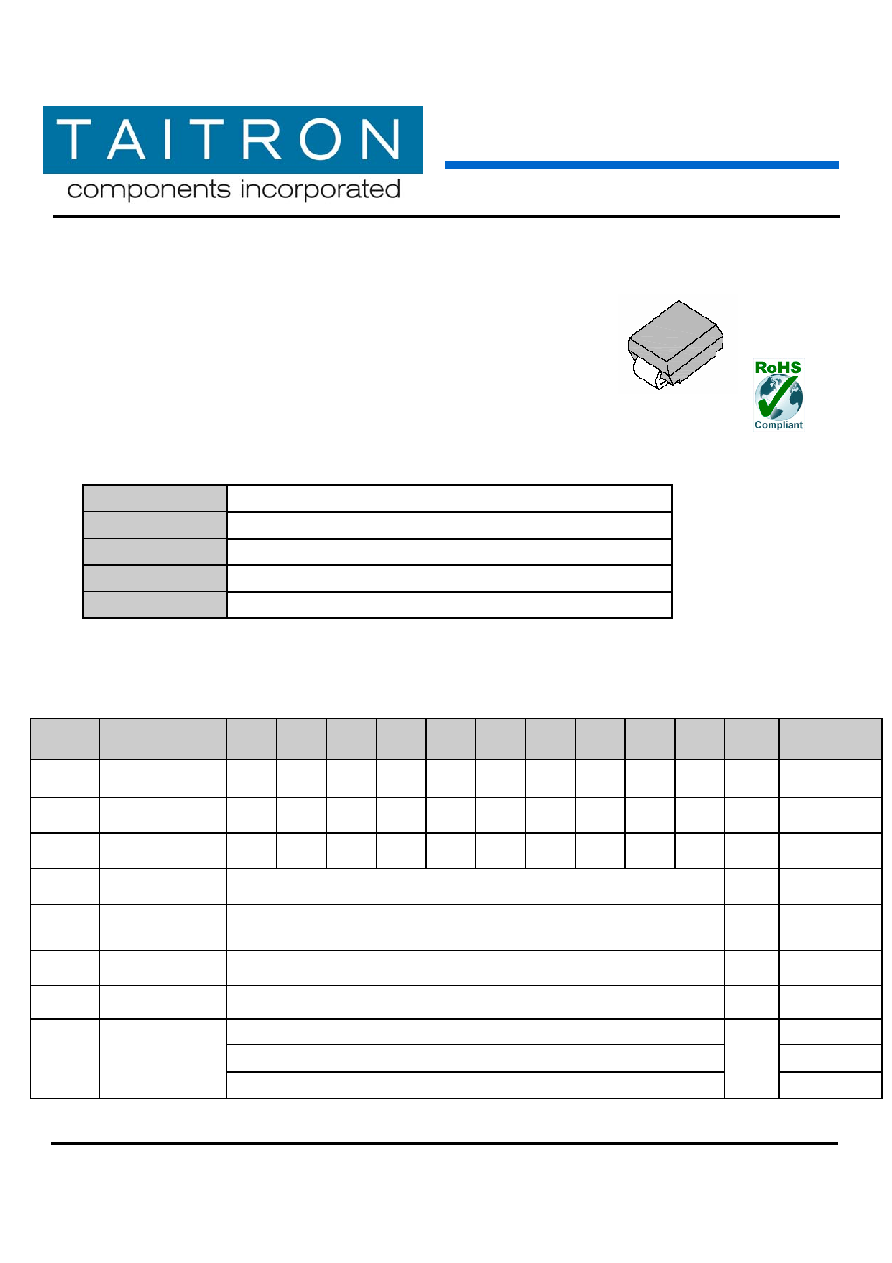

Rev. B/AH 2008-01-16

TAITRON COMPONENTS INCORPORATED www.taitroncomponents.com

Page 1 of 6

Tel: (800)-TAITRON

(800)-824-8766

(661)-257-6060

Fax: (800)-TAITFAX

(800)-824-8329

(661)-257-6415

RGF3AB – RGF3MAB

3.0A Sintered Glass Passivated

Fast Recovery Rectifier

3.0A Sintered Glass Passivated Fast Recovery Rectifier

Features

• Fast switching for high efficiency

• Ideal for surface mount automated applications

• High temperature soldering guaranteed: 260°C/10 seconds,

at terminals

• Plastic package has UL Flammability Classification 94V-0

• RoHS Compliance

Mechanical Data

Case:

JEDEC DO-214AA (SMB) molded plastic over passivated chip

Terminals:

Tin plated, solderable per MIL-STD-750, Method 2026

Polarity:

Color band denotes cathode end

Mounting Position:

Any

Weight:

0.004 ounes,0.12 gram

Maximum Ratings and Electrical Characteristics (T A=25ºC unless otherwise noted)

Symbol

Description

RGF

3AB

RGF

3BB

RGF

3DB

RGF

3GB

RGF

3JB

RGF

3JAB

RGF

3KB

RGF

3KAB

RGF

3MB

RGF

3MAB

Unit

Conditions

VRRM

Max. Repetitive Peak

Reverse Voltage

50

100

200

400

600

800

1000

V

VRMS

Max. RMS Voltage

35

70

140

280

420

560

700

V

VDC

Max. DC Blocking

Voltage

50

100

200

400

600

800

1000

V

VF

Max. Forward

Voltage

1.3

V

IF(AV)=3.0A

IF(AV)

Max. Average

Forward Rectified

Current

3.0

A

TL=100°C

IR(AV)

Max. Full Load

Reverse Current

100

µA

TA=55°C

IFSM

Peak Forward Surge

Current

115

A

Note 1

5

TA=25°C

50

TA=125°C

IR

Reverse Current

@ VR = VRRM

120

µA

TA=150°C

SMB
