Typical application
LD1085CXX
8/16
6
Typical application
(Unless otherwise specified TJ = 25 °C, CI = CO = 10 µF)

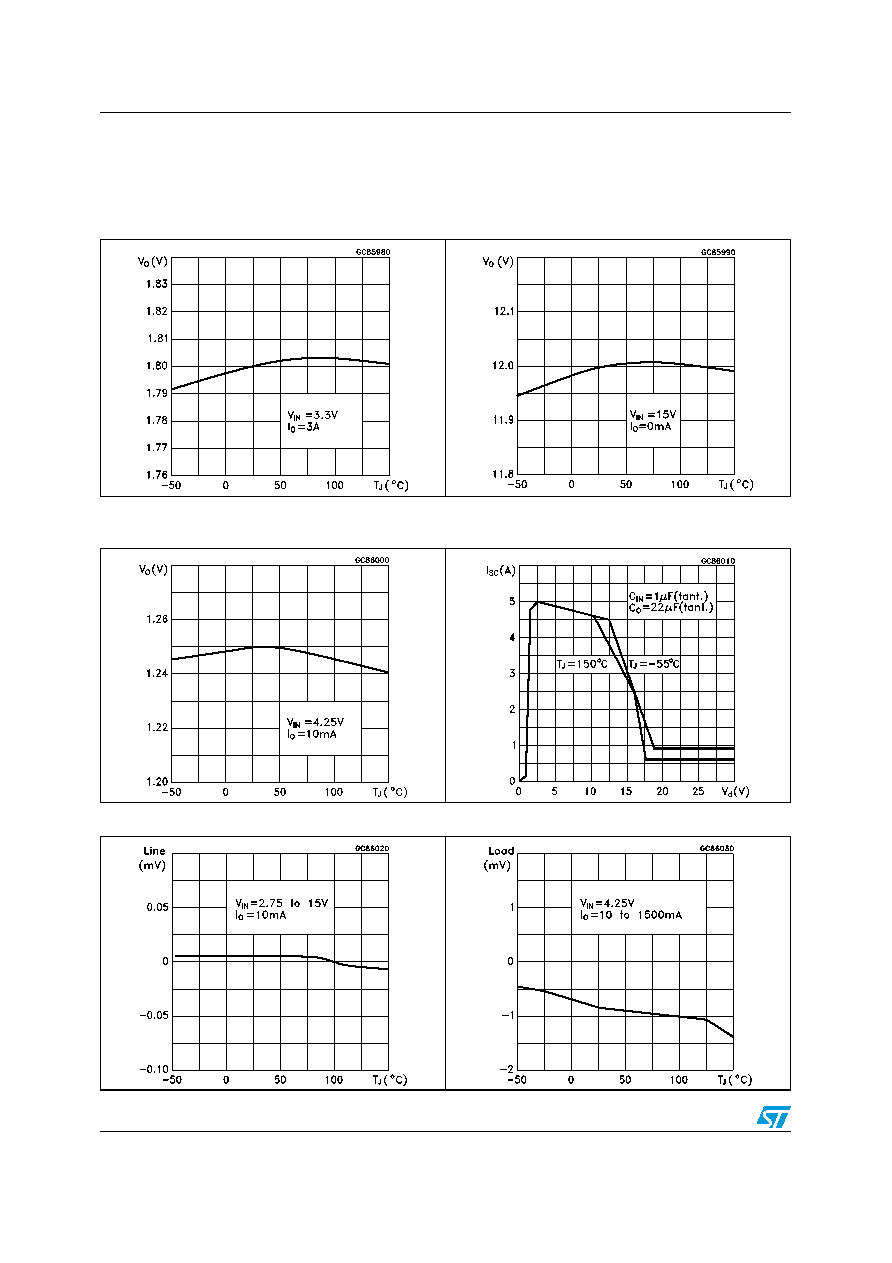

Figure 4.
Output voltage vs temperature
Figure 5.
Output voltage vs temperature
Figure 6.
Output voltage vs temperature
Figure 7.
Short circuit current vs dropout
voltage
Figure 8.
Line regulation vs temperature
Figure 9.
Load regulation vs temperature
