LD1085CXX
Typical application
9/16

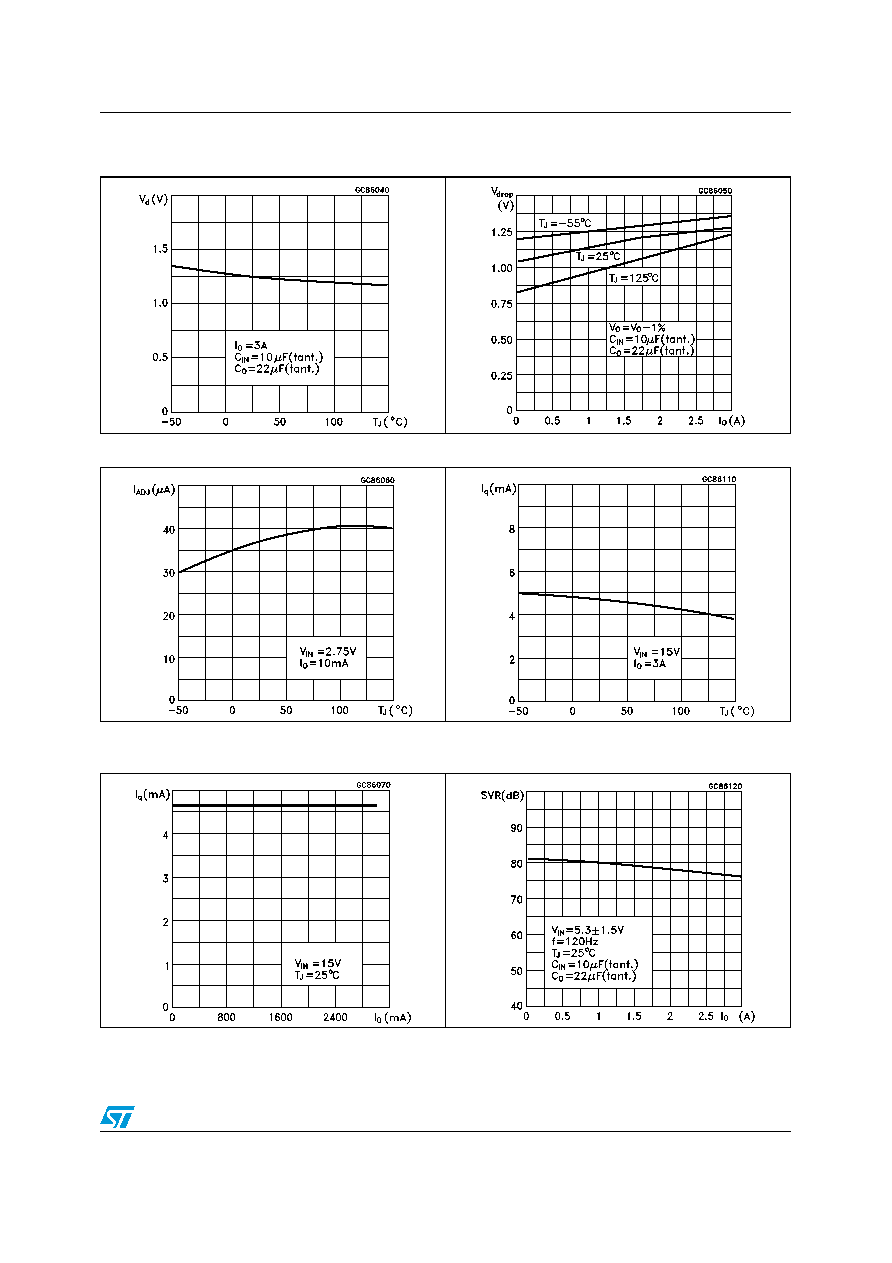

Figure 10.
Dropout voltage vs temperature
Figure 11.
Dropout voltage vs output current
Figure 12.
Adjust pin current vs temperature
Figure 13.
Quiescent current vs temperature
Figure 14.
Line regulation vs temperature
Figure 15.
Supply voltage rejection vs output
current
