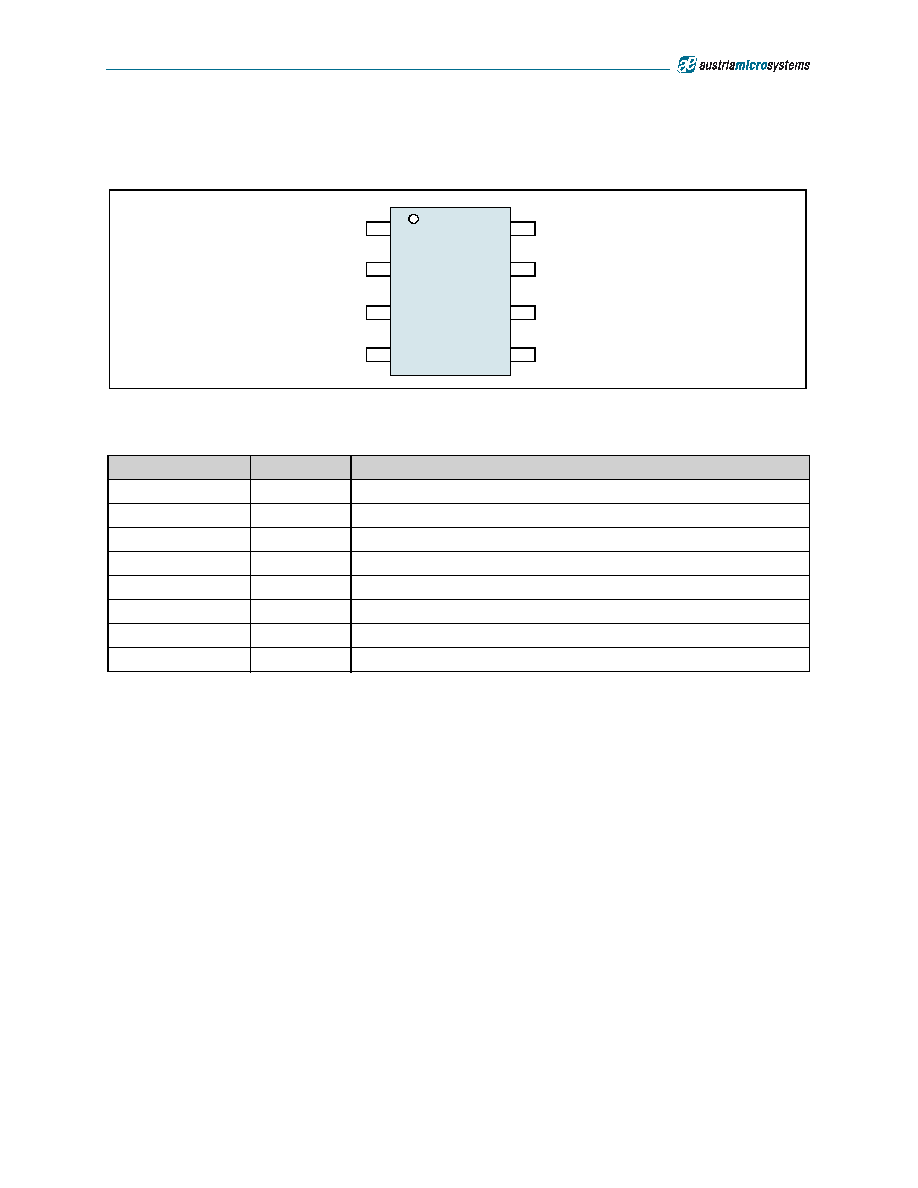

background image
www.austriamicrosystems.com/Lin_CompanionIC/AS8530
Revision 0.01
4 - 29
AS8530
Preliminary Data Sheet - P i n A s s i g n m e n t s
4 Pin Assignments
Figure 2. Pin Assignments (Top View)
4.1 Pin Descriptions
Table 1. Pin Descriptions
Pin Name
Pin Number
Description
EN
1
Enable pin with pull down. Serial clock in serial port mode, high-voltage compatible.
VSUP
2
Positive power supply
LIN
3
LIN bus
VSS
4
Ground
RX
5
LIN transceiver receive signal
TX
6
LIN transceiver transmit signal
RESET
7
Digital output referenced to VCC, active low
VCC
8
Regulated 5V/3.3V supply for loads up to 50mA. Factory programmable.
8
7
6
5
1
2
3
4
EN
AS8530
VSUP
LIN
VSS
VCC
RESET
TX
RX
