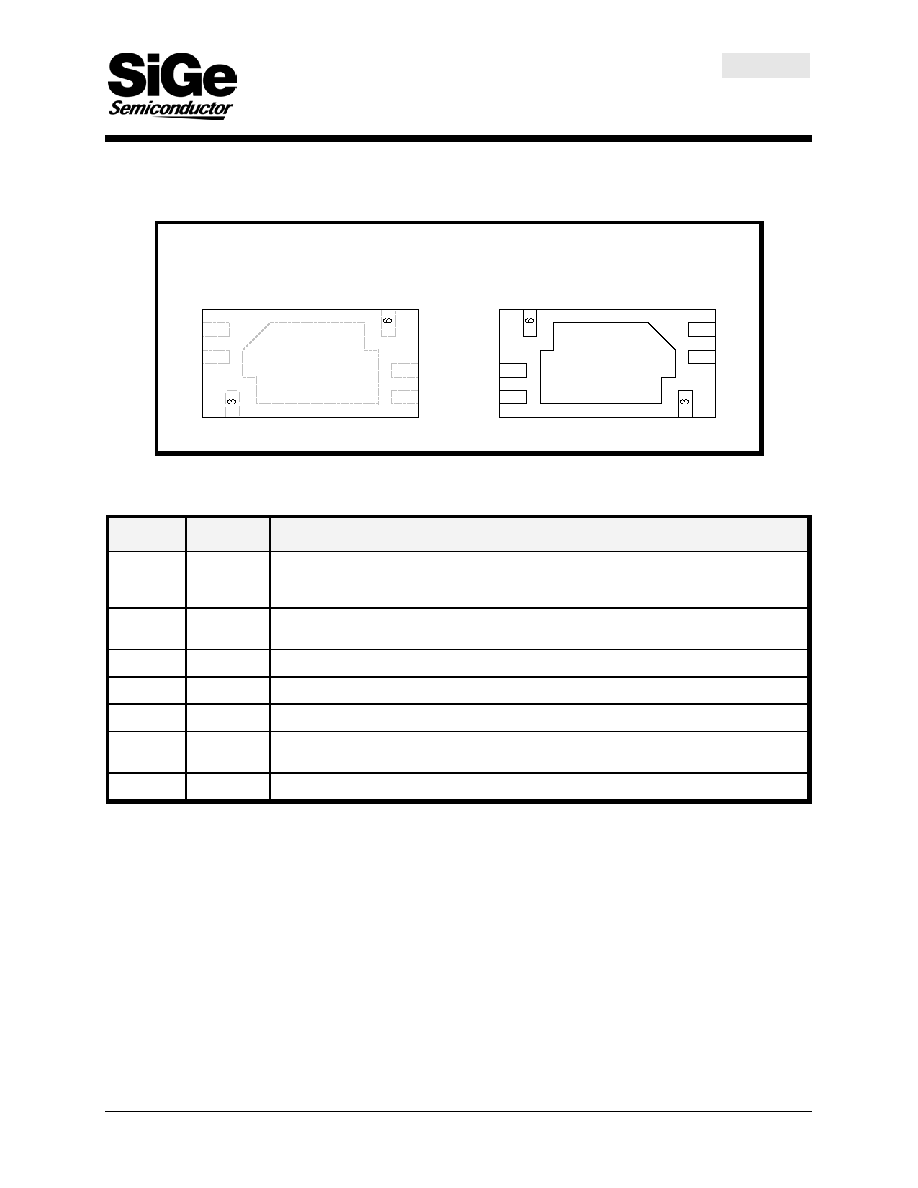

2 / 8 page ![]() SE2520L RangeCharger™ 2.4GHz Power Amplifier IC Final Pin Out Diagram Note: Pads and die pad shown are at the bottom of package. 4 5 2 1 Die Pad SE2520L Bottom View 4 5 2 1 SE2520L Top View 2520L Lot Code Pin Out Description Pin No. Name Description 1 VCTL Controls the RF output power level and DC current of the power amplifier. An analog control signal between 0.1V and 1.6V varies the PA output power between Min. and Max. values. 2 VEN Power Amplifier Enable pin. A digital control signal with logic high (power up) and logic low (power down) is used to turn the device on and off. 3 IN Power amplifier RF input, external input matching network with DC blocking is required. 4 VCC0 Bias supply voltage. 5 VCC1 Stage 1 collector supply voltage, an external inter-stage matching network is required. 6 OUT/VCC2 PA Output and Stage2 collector supply voltage, external output matching network with DC blocking is required. Die Pad GND Heatslug Die Pad is ground 15-DST-01 Rev 4.8 Oct 28/02 2 of 8 |
|
|
